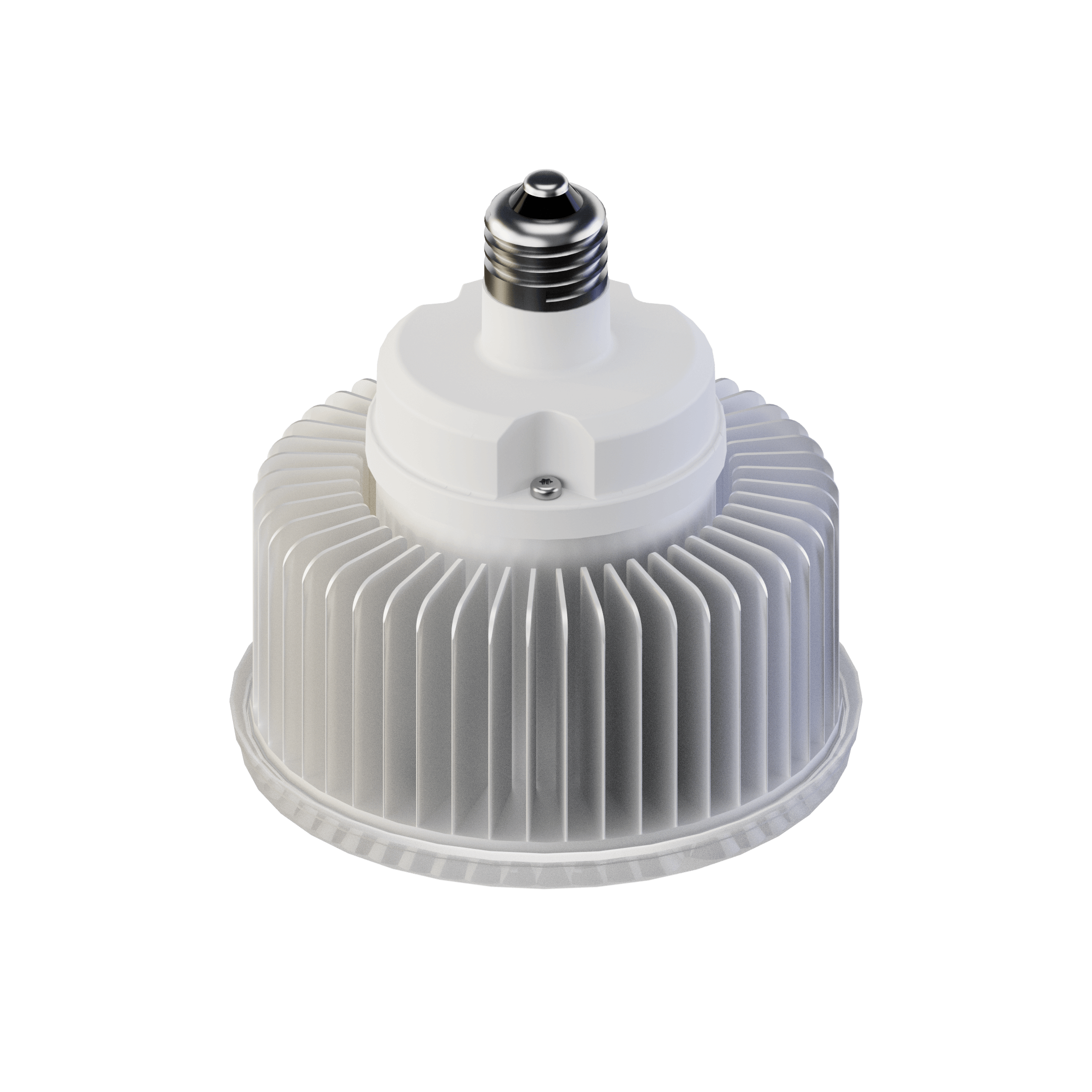

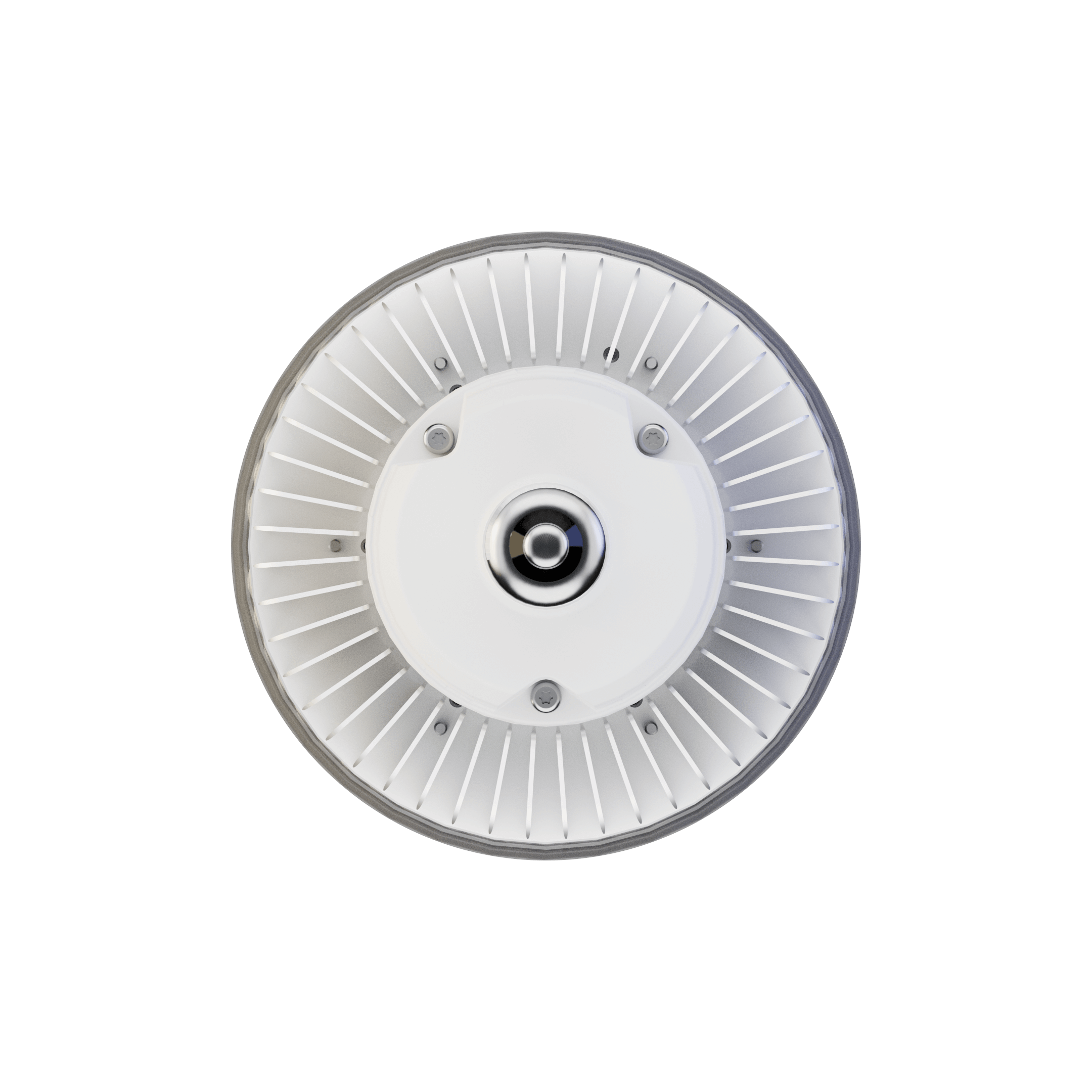

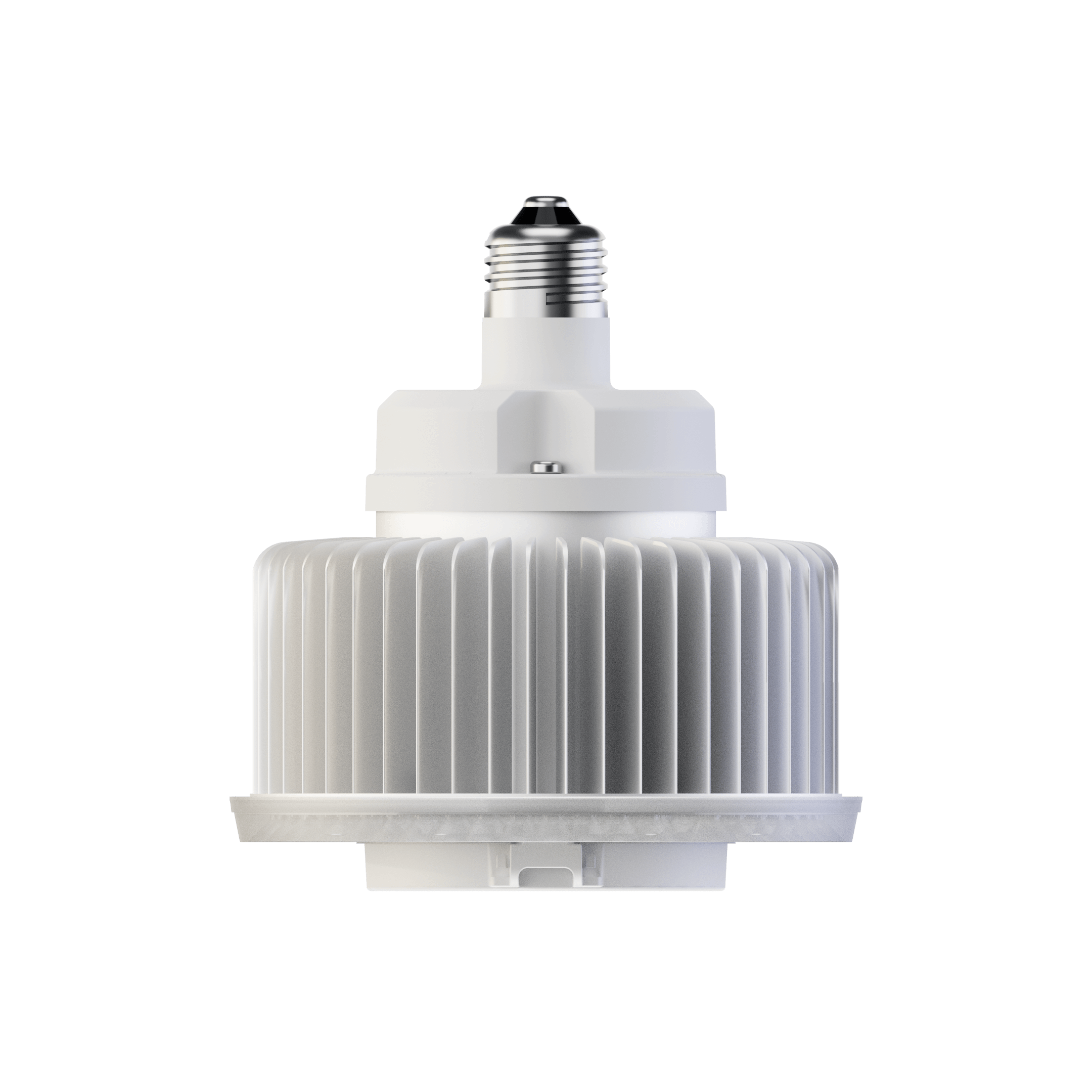

VA6 Lamp

Medium Base - Up to 7,000 Lumens: 5" (136mm) Diameter

Select E39/E40 Mogul E26/E27 Medium

Applications

Retail, Office, Church, Automotive Dealership

General

Up to 7,000 Lumens, 156 L/W
Certified for Magnetic HID Ballast & 100-277 VAC

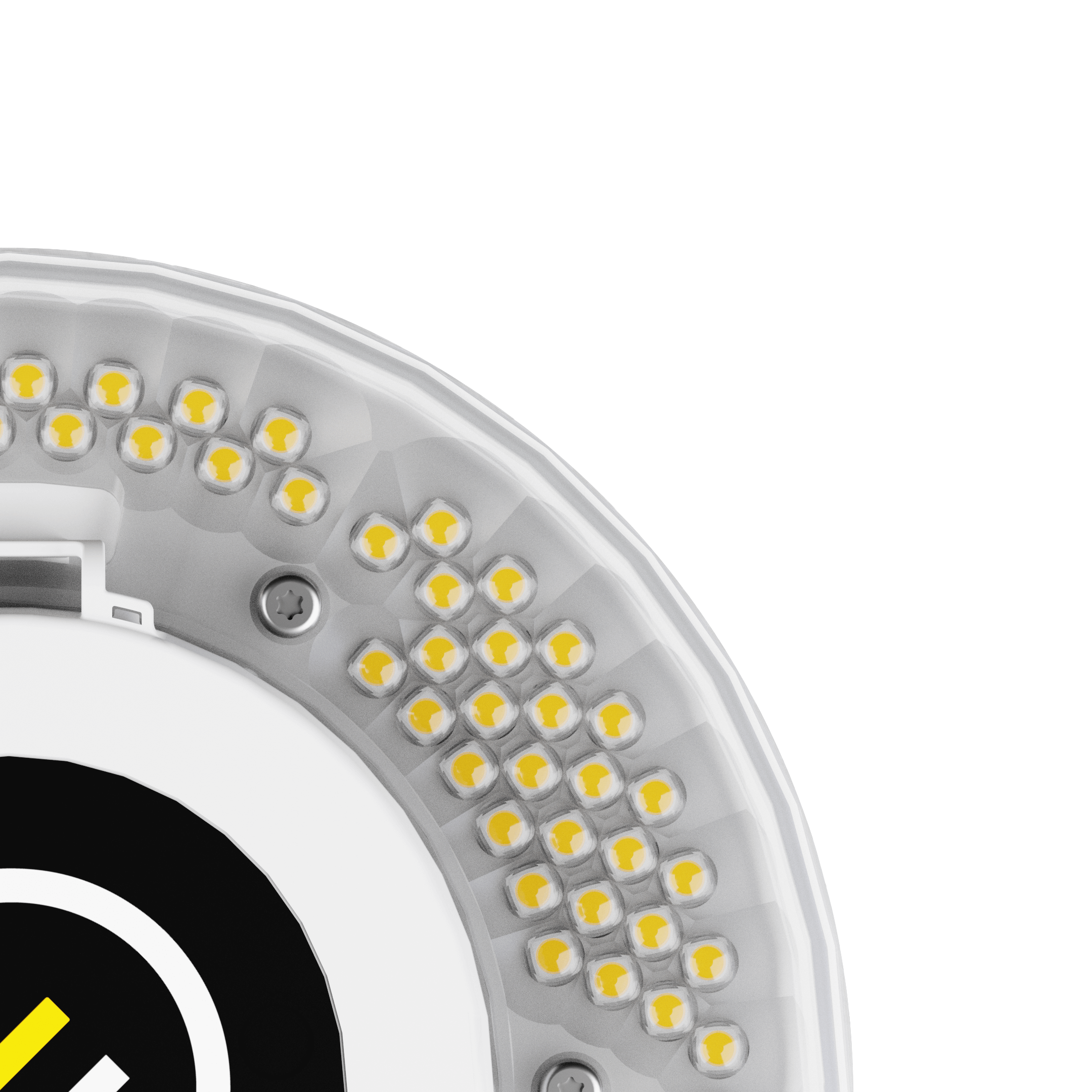

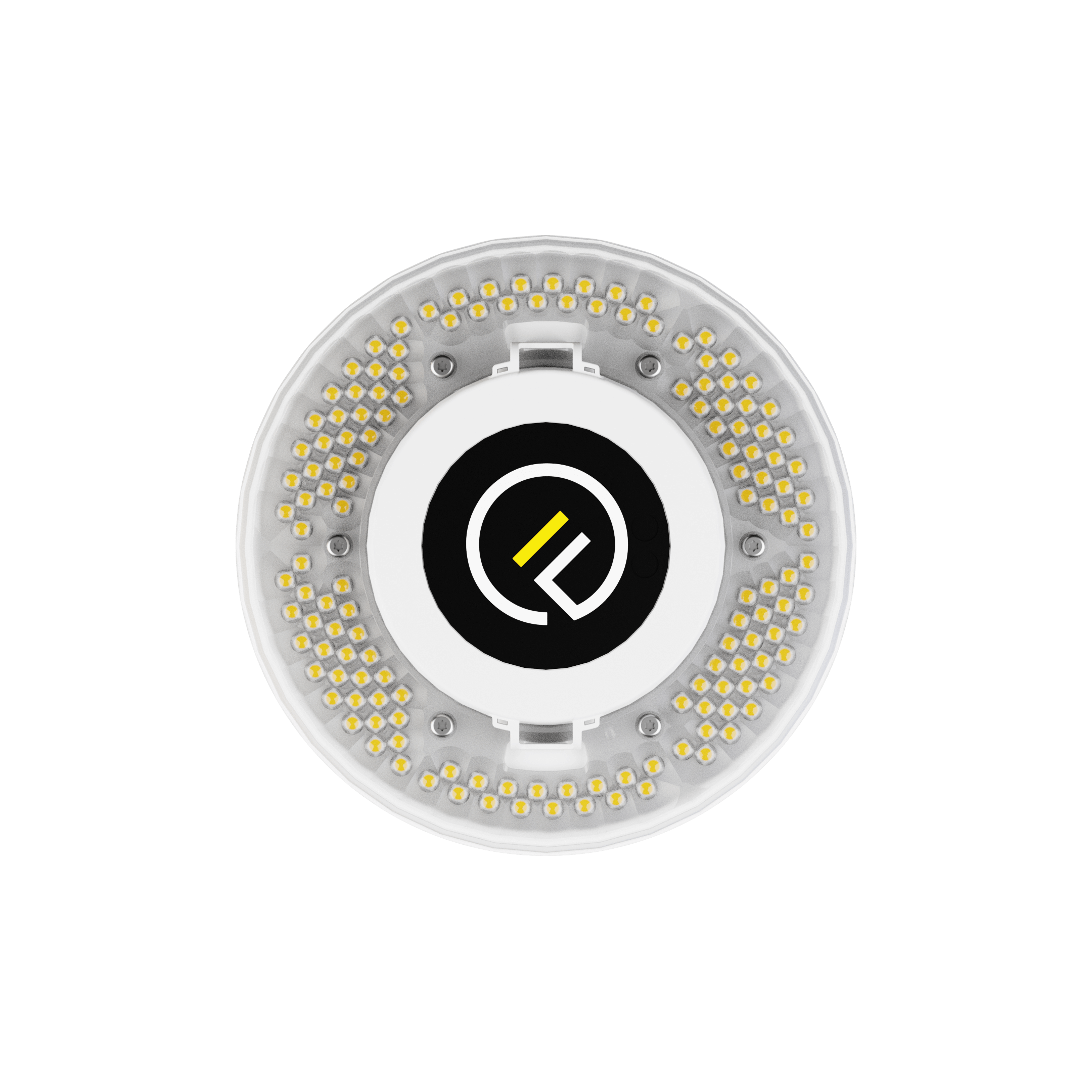

Integrated Patented Optic provides:
- Low Glare UGR<18
- 1.3x cd/lumen higher efficiency over no optic
80 CRI Standard, High CRI optional
Wireless control options
Temperature protection with full output:
- T(Ambient) = 65ºC/150F for 30W
- T(Ambient) = 45ºC/115F for 45W
Socket extender option sold separately
Enclosed fixture and IC rated for 30W
Five Year or 50,000 Hour warranty

World Wide Certifications

UL/ULC, DLC, CE/CB, PSE, CCC, SAA
IP52 / UL damp listed standard
IP65 / UL wet optional

Control Options

Wireless Options:
- Synpase, Casambi, Avi-On
Non Wiress Options:
- Occupancy & Daylight, Manual Power Set
Dims to 10% then to off

Mechanical

Anodized solid aluminum body
E26/E27 Medium Base, vertical orientation only
1.52lb (0.70kg)
Ø 5.34" (136mm) x 5.78" (147mm)

Electrical

VL: Line Voltage 100-277 VAC, 50-60 Hz
VH: Hybrid: Ballast Compatible and Line Voltage 100-277 VAC
< 1% flicker
6 kV surge protection, PF>0.9/THD<20%

Amps @ Line Voltage (VAC)
	100V	110V	120V	220V	240V	277V
30W	0.30A	0.27A	0.25A	0.14A	0.13A	0.11A
45W	0.45A	0.41A	0.38A	0.20A	0.19A	0.16A

Ballast Compatibility

The Hybrid series is compatible with HID magnetic ballast between 175-600W. Such ballast types include probe start, pulse start, CWA, or reactive. The table below shows compatible ballast that have been tested. Input to ballast may be up to 480V. Optical distribution and lumen output are constant regardless of Ballast type or wattage. Ballast operation is not compatible with dimming or controls.

HID Ballast Compatibility
Type	45-70W	100W	150W	175W	200W	250W
Metal Halide	M98 M110 M143	M90	-	M57 M137 M152 MH175	-	M138 M153 MH250
HPS	NG50 NG70	NG100	NG150	-	S66	S50 NG250
MV	H175	-	-	H175	-	-

Integral optic eliminates the need for a reflector, thus no reflector loss
50° glare cutoff with UGRave<15
Optical distribution with high uniformity EMin/Avg>0.75, SC=0.5 to 1.5

No Optical Accessories

CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	30W	3,791	4,226	4,474	4,672	4,836	4,836
80	45W	5,483	6,114	6,471	6,758	6,996	6,996
90	30W	3,122	3,481	3,685	3,848	3,984	3,984
90	45W	4,517	5,036	5,331	5,567	5,763	5,763

With 5" Uplight 15%

CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	30W	3,750	4,181	4,425	4,621	4,784	4,784
80	45W	5,424	6,048	6,401	6,685	6,921	6,921
90	30W	3,089	3,444	3,645	3,807	3,941	3,941
90	45W	4,468	4,982	5,273	5,507	5,701	5,701

With 5" UGR Diffuser

CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	30W	3,273	3,649	3,863	4,034	4,176	4,176
80	45W	4,735	5,279	5,588	5,835	6,041	6,041
90	30W	2,696	3,006	3,182	3,323	3,440	3,440
90	45W	3,900	4,349	4,603	4,807	4,976	4,976

With 5" K80 Diffuser

CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	30W	3,209	3,578	3,787	3,955	4,095	4,095
80	45W	4,642	5,176	5,479	5,721	5,923	5,923
90	30W	2,644	2,947	3,120	3,258	3,373	3,373
90	45W	3,824	4,264	4,513	4,713	4,879	4,879

Name	Media
VA6 Lamp Spec Sheet - SAA (SAA )
VA6 Lamp Spec Sheet - PSE (PSE )
VA6 Lamp Spec Sheet - CB/CE (CB/CE )
VA6 Lamp Spec Sheet - DLC (DLC )
VA6 Lamp Spec Sheet - UL (UL/ULC )

part number	Base Type	Power	CRI	CCT	Lumens
VA6-E26-030-8-30-VH-AN-B90-000-000	E26	30W	80	3000K	4474
VA6-E26-030-8-27-VH-AN-B90-000-000	E26	30W	80	2700K	4226
VA6-E26-045-9-50-VH-AN-B90-000-000	E26	45W	90	5000K	5763
VA6-E26-045-9-40-VH-AN-B90-000-000	E26	45W	90	4000K	5763
VA6-E26-045-9-35-VH-AN-B90-000-000	E26	45W	90	3500K	5567
VA6-E26-045-9-30-VH-AN-B90-000-000	E26	45W	90	3000K	5331
VA6-E26-045-9-27-VH-AN-B90-000-000	E26	45W	90	2700K	5036
VA6-E26-045-8-50-VH-AN-B90-000-000	E26	45W	80	5000K	6996
VA6-E26-045-8-40-VH-AN-B90-000-000	E26	45W	80	4000K	6996
VA6-E26-045-8-35-VH-AN-B90-000-000	E26	45W	80	3500K	6758
VA6-E26-045-8-30-VH-AN-B90-000-000	E26	45W	80	3000K	6471
VA6-E26-030-9-50-VH-AN-B90-000-000	E26	30W	90	5000K	3984
VA6-E26-030-9-40-VH-AN-B90-000-000	E26	30W	90	4000K	3984
VA6-E26-030-9-35-VH-AN-B90-000-000	E26	30W	90	3500K	3848
VA6-E26-030-9-30-VH-AN-B90-000-000	E26	30W	90	3000K	3685
VA6-E26-030-9-27-VH-AN-B90-000-000	E26	30W	90	2700K	3481
VA6-E26-030-8-50-VH-AN-B90-000-000	E26	30W	80	5000K	4836
VA6-E26-030-8-40-VH-AN-B90-000-000	E26	30W	80	4000K	4836
VA6-E26-030-8-35-VH-AN-B90-000-000	E26	30W	80	3500K	4672
VA6-E26-045-8-27-VH-AN-B90-000-000	E26	45W	80	2700K	6114

part number	Base Type	Power	CRI	CCT	Lumens
VA6-E27-045-8-30-VH-AN-B90-000-000	E27	45W	80	3000K	6471
VA6-E27-045-8-35-VH-AN-B90-000-000	E27	45W	80	3500K	6758
VA6-E27-045-8-40-VH-AN-B90-000-000	E27	45W	80	4000K	6996
VA6-E27-045-8-50-VH-AN-B90-000-000	E27	45W	80	5000K	6996
VA6-E27-045-9-27-VH-AN-B90-000-000	E27	45W	90	2700K	5036
VA6-E27-045-9-30-VH-AN-B90-000-000	E27	45W	90	3000K	5331
VA6-E27-045-9-35-VH-AN-B90-000-000	E27	45W	90	3500K	5567
VA6-E27-045-9-40-VH-AN-B90-000-000	E27	45W	90	4000K	5763
VA6-E27-045-9-50-VH-AN-B90-000-000	E27	45W	90	5000K	5763
VA6-E27-030-9-27-VH-AN-B90-000-000	E27	30W	90	2700K	3481
VA6-E27-030-9-50-VH-AN-B90-000-000	E27	30W	90	5000K	3984
VA6-E27-030-9-40-VH-AN-B90-000-000	E27	30W	90	4000K	3984
VA6-E27-030-9-35-VH-AN-B90-000-000	E27	30W	90	3500K	3848
VA6-E27-030-9-30-VH-AN-B90-000-000	E27	30W	90	3000K	3685
VA6-E27-045-8-27-VH-AN-B90-000-000	E27	45W	80	2700K	6114
VA6-E27-030-8-50-VH-AN-B90-000-000	E27	30W	80	5000K	4836
VA6-E27-030-8-40-VH-AN-B90-000-000	E27	30W	80	4000K	4836
VA6-E27-030-8-35-VH-AN-B90-000-000	E27	30W	80	3500K	4672
VA6-E27-030-8-30-VH-AN-B90-000-000	E27	30W	80	3000K	4474
VA6-E27-030-8-27-VH-AN-B90-000-000	E27	30W	80	2700K	4226

part number	Base Type	Power	CRI	CCT	Lumens
VA6-E26-045-8-30-VH-AN-B90-000-000	E26	45W	80	3000K	6471
VA6-E26-045-8-35-VH-AN-B90-000-000	E26	45W	80	3500K	6758
VA6-E26-045-8-40-VH-AN-B90-000-000	E26	45W	80	4000K	6996
VA6-E26-045-8-50-VH-AN-B90-000-000	E26	45W	80	5000K	6996
VA6-E26-045-9-27-VH-AN-B90-000-000	E26	45W	90	2700K	5036
VA6-E26-045-9-30-VH-AN-B90-000-000	E26	45W	90	3000K	5331
VA6-E26-045-9-35-VH-AN-B90-000-000	E26	45W	90	3500K	5567
VA6-E26-045-9-40-VH-AN-B90-000-000	E26	45W	90	4000K	5763
VA6-E26-045-9-50-VH-AN-B90-000-000	E26	45W	90	5000K	5763
VA6-E26-030-8-35-VH-AN-B90-000-000	E26	30W	80	3500K	4672
VA6-E26-030-9-50-VH-AN-B90-000-000	E26	30W	90	5000K	3984
VA6-E26-030-9-40-VH-AN-B90-000-000	E26	30W	90	4000K	3984
VA6-E26-030-9-35-VH-AN-B90-000-000	E26	30W	90	3500K	3848
VA6-E26-030-9-30-VH-AN-B90-000-000	E26	30W	90	3000K	3685
VA6-E26-030-9-27-VH-AN-B90-000-000	E26	30W	90	2700K	3481
VA6-E26-030-8-50-VH-AN-B90-000-000	E26	30W	80	5000K	4836
VA6-E26-030-8-40-VH-AN-B90-000-000	E26	30W	80	4000K	4836
VA6-E26-030-8-30-VH-AN-B90-000-000	E26	30W	80	3000K	4474
VA6-E26-030-8-27-VH-AN-B90-000-000	E26	30W	80	2700K	4226
VA6-E26-045-8-27-VH-AN-B90-000-000	E26	45W	80	2700K	6114

part number	Base Type	Power	CRI	CCT	Lumens	Spec Sheet
VA6-E27-030-8-40-VH-AN-B90-000-000	E27	30W	80	4000K	4836	-
VA6-E27-030-8-50-VH-AN-B90-000-000	E27	30W	80	5000K	4836	-
VA6-E27-030-8-35-VH-AN-B90-000-000	E27	30W	80	3500K	4672	-
VA6-E27-030-8-30-VH-AN-B90-000-000	E27	30W	80	3000K	4474	-

part number	Base Type	Power	CRI	CCT	Lumens
VA6-E27-045-9-50-VH-AN-B90-000-000	E27	45W	90	5000K	6996
VA6-E27-045-9-40-VH-AN-B90-000-000	E27	45W	90	4000K	6996
VA6-E27-045-9-35-VH-AN-B90-000-000	E27	45W	90	3500K	6758
VA6-E27-045-9-30-VH-AN-B90-000-000	E27	45W	90	3000K	6471
VA6-E27-045-9-27-VH-AN-B90-000-000	E27	45W	90	2700K	6114
VA6-E27-045-8-50-VH-AN-B90-000-000	E27	45W	80	5000K	6996
VA6-E27-045-8-40-VH-AN-B90-000-000	E27	45W	80	4000K	6996
VA6-E27-045-8-35-VH-AN-B90-000-000	E27	45W	80	3500K	6758
VA6-E27-045-8-30-VH-AN-B90-000-000	E27	45W	80	3000K	6471
VA6-E27-045-8-27-VH-AN-B90-000-000	E27	45W	80	2700K	6114
VA6-E27-030-9-50-VH-AN-B90-000-000	E27	30W	90	5000K	4836
VA6-E27-030-9-40-VH-AN-B90-000-000	E27	30W	90	4000K	4836
VA6-E27-030-9-35-VH-AN-B90-000-000	E27	30W	90	3500K	4672
VA6-E27-030-9-30-VH-AN-B90-000-000	E27	30W	90	3000K	4474
VA6-E27-030-9-27-VH-AN-B90-000-000	E27	30W	90	2700K	4226
VA6-E27-030-8-50-VH-AN-B90-000-000	E27	30W	80	5000K	4836
VA6-E27-030-8-40-VH-AN-B90-000-000	E27	30W	80	4000K	4836
VA6-E27-030-8-35-VH-AN-B90-000-000	E27	30W	80	3500K	4672
VA6-E27-030-8-30-VH-AN-B90-000-000	E27	30W	80	3000K	4474
VA6-E27-030-8-27-VH-AN-B90-000-000	E27	30W	80	2700K	4226
