Medium Base - Up to 7,000 Lumens: 5" (136mm) Diameter

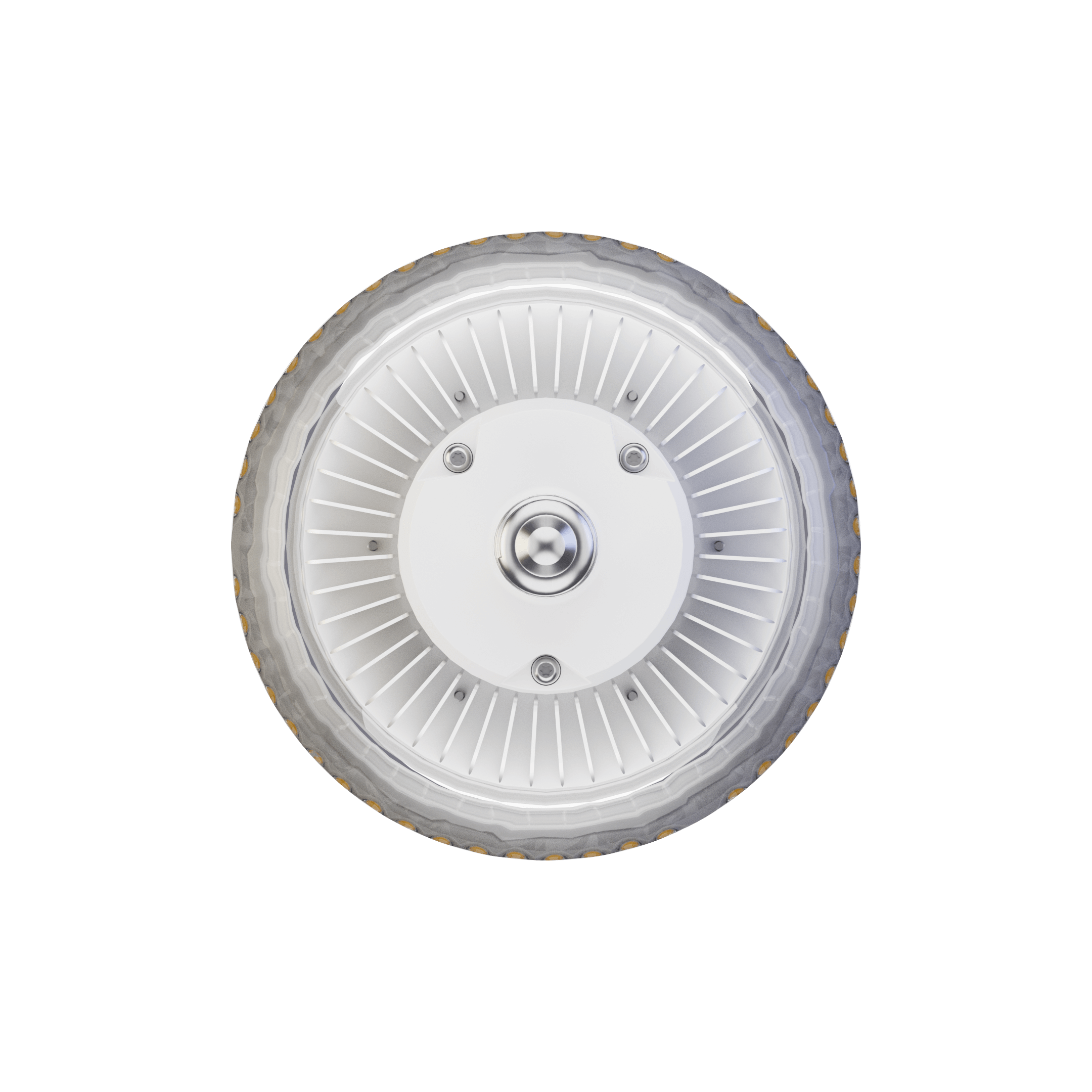

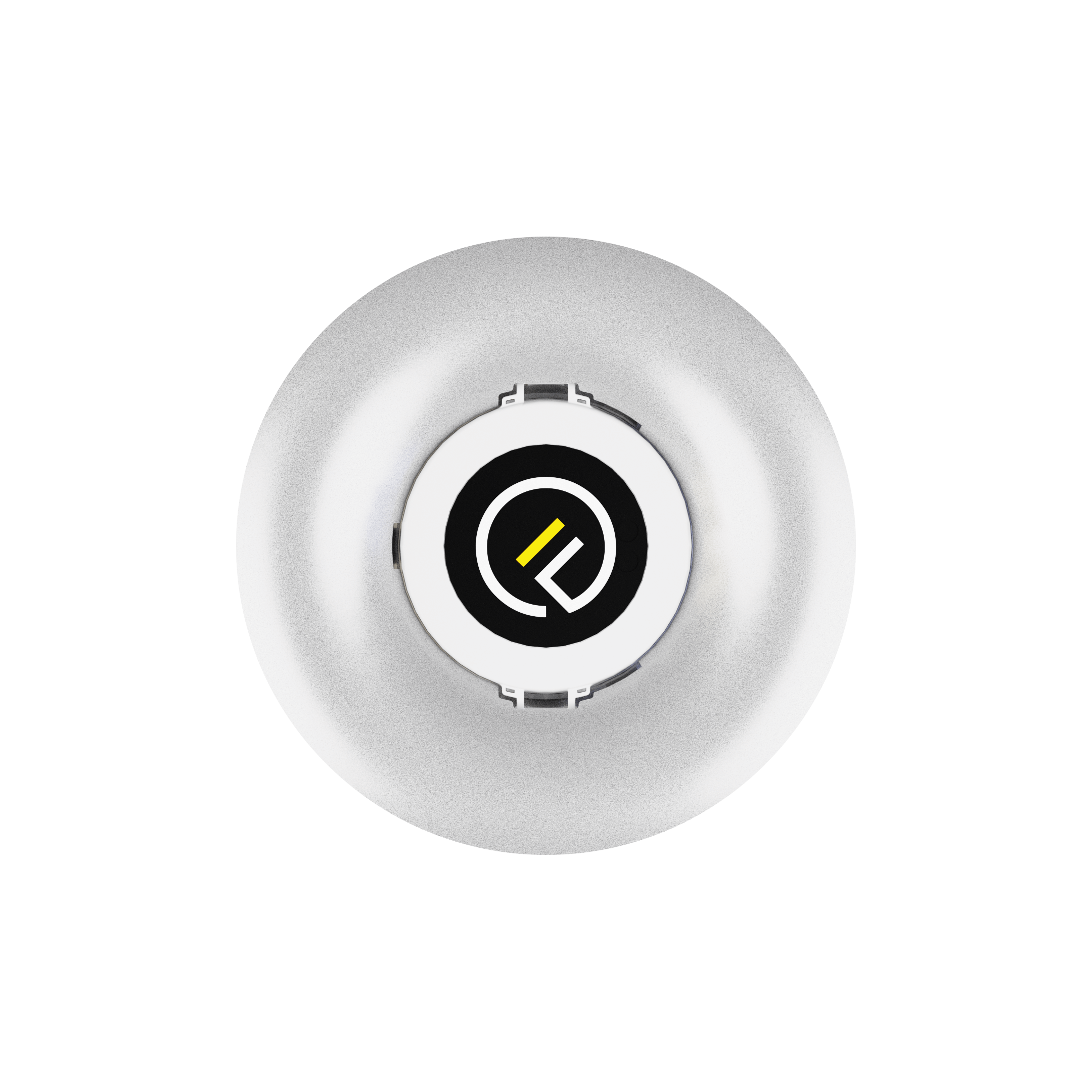

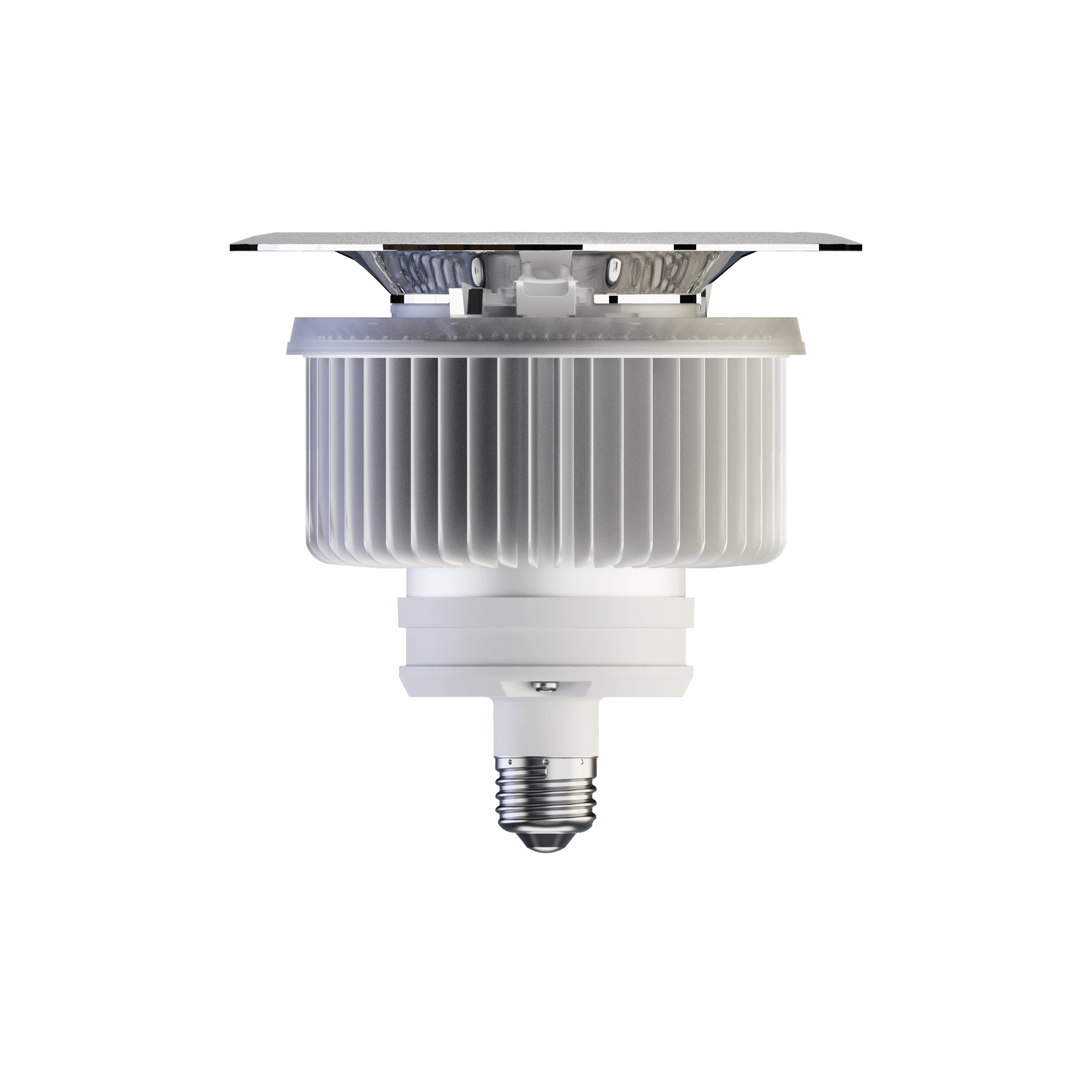

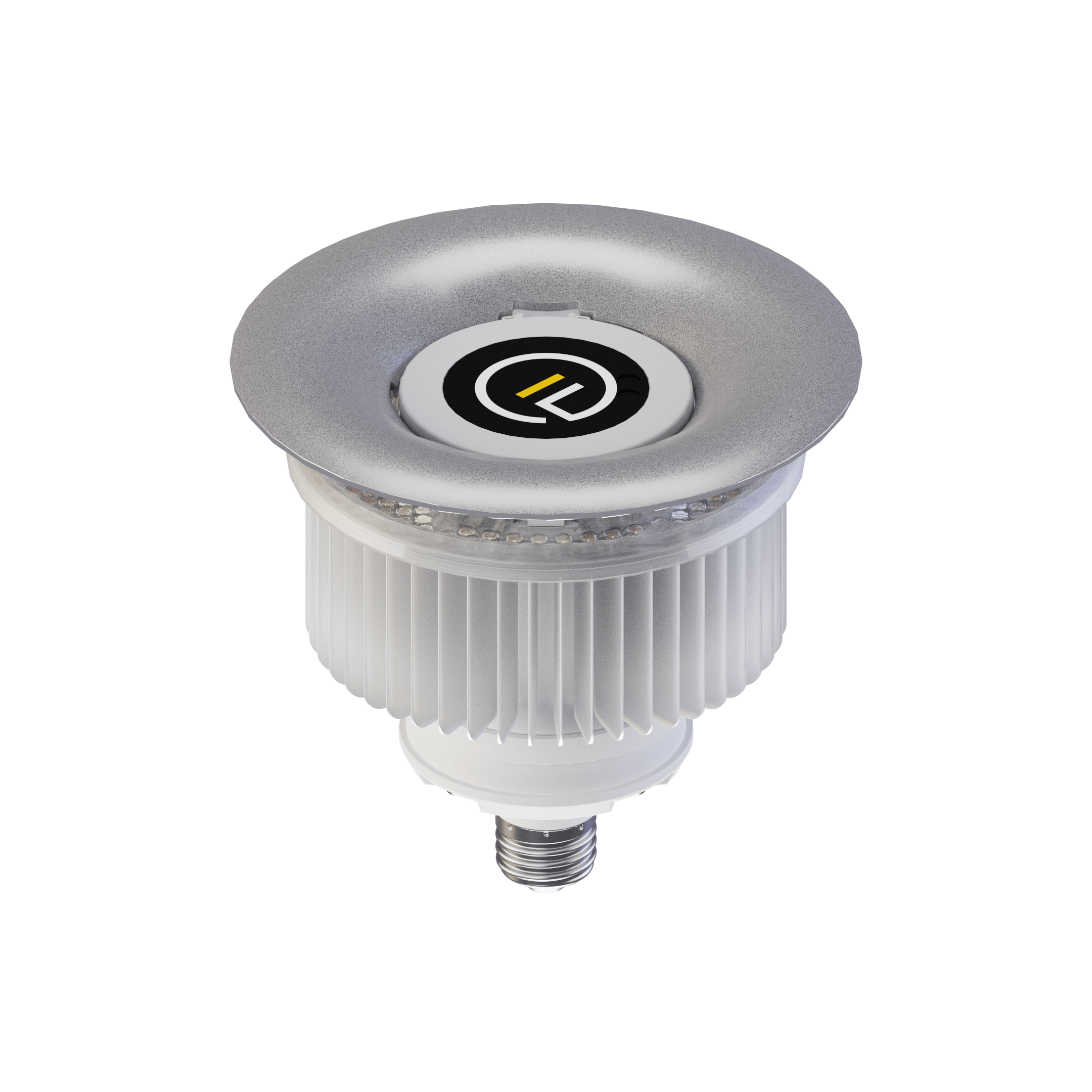

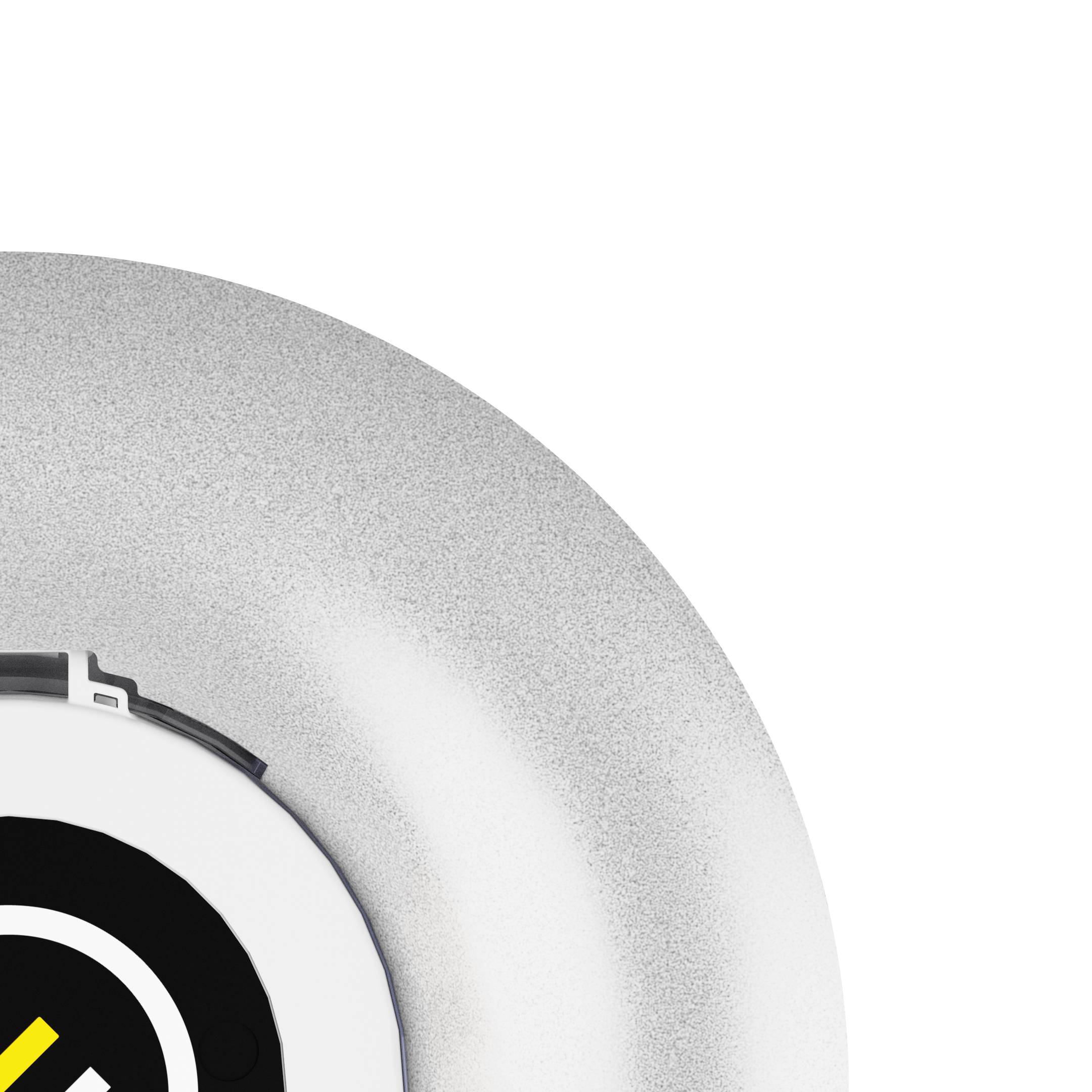

VA6 Post Top Lamp

Select E39/E40 Mogul E26/E27 Medium

Up to 6,000 Lumens, 133 L/W
Certified for Magnetic HID Ballast & 100-277 VAC
Integrated Patented Optic provides:
- Low uplight & glare: B2-U3-G2
- 3x cd/lumen higher efficiency over corn lamps
- House side shield option: B1-U3-G1
80 CRI Standard, High CRI optional
Wireless control options
Temperature protection with full output:
- T(Ambient) = 65ºC/150F for 30W
- T(Ambient) = 45ºC/115F for 45W
Socket extender option sold seperately
Enclosed fixture rated
Five Year or 50,000 Hour warranty

Anodized solid aluminum body
E26/E27 Medium Base down orientation
1.62lb (0.73kg)
Ø 6.5" (165mm) x 6.40" (162mm)

Wireless Options:
- Synpase, Casambi, Avi-On
Non Wiress Options:
- Occupancy & Daylight, Manual Power Set
Dims to 10% then to off

UL/ULC, DLC, CE/CB, PSE
IP52 / UL damp listed standard
IP65 / UL wet optional

VL: Line Voltage 100-277 VAC, 50-60 Hz
VH: Hybrid: Ballast Compatible and Line Voltage 100-277 VAC
< 1% flicker
6 kV surge protection, PF>0.9/THD<20%

	Amps @ Line Voltage (VAC)
	100V	110V	120V	220V	240V	277V
30W	0.30A	0.27A	0.25A	0.14A	0.13A	0.11A
45W	0.45A	0.41A	0.38A	0.20A	0.19A	0.16A

Integral optic eliminates the need for a reflector, thus no reflector loss
50° glare cutoff with UGRave<15
Optical distribution with high uniformity EMin/ Avg>0.75, SC=0.5 to 1.5

CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	30W	3,247	3,620	3,832	4,001	4,142	4,142
80	45W	4,696	5,236	5,543	5,788	5,992	5,992
90	30W	2,674	2,982	3,156	3,296	3,412	3,412
90	45W	3,869	4,313	4,566	4,768	4,936	4,936

The Hybrid series is compatible with HID magnetic ballast between 175-600W. Such ballast types include probe start, pulse start, CWA, or reactive. The table below shows compatible ballast that have been tested. Input to ballast may be up to 480V. Optical distribution and lumen output are constant regardless of Ballast type or wattage. Ballast operation is not compatible with dimming or controls.

	HID Ballast Compatibility
Type	45-70W	100W	150W	175W	200W	250W
Metal Halide	M98 M110 M143	M90	-	M57 M137 M152 MH175	-	M138 M153 MH250
HPS	NG50 NG70	NG100	NG150	-	S66	S50 NG250
MV	-	-	-	H175	-	-

Name	Media
VA6 Post Top Lamp Spec Sheet - PSE (PSE Japan )
VA6 Post Top Lamp Spec Sheet - CB/CE (CB/CE Europe and Rest of the World )
VA6 Post Top Lamp Spec Sheet - DLC (DLC )
VA6 Post Top Spec Sheet - UL (UL/ULC USA/Canada )
VA6 Post Top Lamp Installation Guide (All Regions)

Ordering Information

part number	Base Type	Power	CRI	CCT	Lumen Range
VA6-E26-045-9-27-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	90	2700K	4,000 - 9,999
VA6-E26-030-8-27-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	80	2700K	< 3,999
VA6-E26-045-9-50-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	90	5000K	4,000 - 9,999
VA6-E26-045-9-40-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	90	4000K	4,000 - 9,999
VA6-E26-045-9-35-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	90	3500K	4,000 - 9,999
VA6-E26-045-9-30-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	90	3000K	4,000 - 9,999
VA6-E26-045-8-50-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	80	5000K	4,000 - 9,999
VA6-E26-045-8-40-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	80	4000K	4,000 - 9,999
VA6-E26-045-8-35-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	80	3500K	4,000 - 9,999
VA6-E26-045-8-30-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	80	3000K	4,000 - 9,999
VA6-E26-030-9-50-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	90	5000K	< 3,999
VA6-E26-030-8-30-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	80	3000K	< 3,999
VA6-E26-030-8-35-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	80	3500K	4,000 - 9,999
VA6-E26-030-8-40-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	80	4000K	4,000 - 9,999
VA6-E26-030-8-50-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	80	5000K	4,000 - 9,999
VA6-E26-030-9-27-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	90	2700K	< 3,999
VA6-E26-030-9-30-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	90	3000K	< 3,999
VA6-E26-030-9-35-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	90	3500K	< 3,999
VA6-E26-030-9-40-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	90	4000K	< 3,999
VA6-E26-045-8-27-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	80	2700K	4,000 - 9,999

part number	Base Type	Power	CRI	CCT	Lumen Range
VA6-E27-045-8-27-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	80	2700K	4,000 - 9,999
VA6-E27-045-9-50-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	90	5000K	4,000 - 9,999
VA6-E27-045-9-40-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	90	4000K	4,000 - 9,999
VA6-E27-045-9-35-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	90	3500K	4,000 - 9,999
VA6-E27-045-9-30-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	90	3000K	4,000 - 9,999
VA6-E27-045-9-27-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	90	2700K	4,000 - 9,999
VA6-E27-045-8-50-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	80	5000K	4,000 - 9,999
VA6-E27-045-8-40-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	80	4000K	4,000 - 9,999
VA6-E27-045-8-35-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	80	3500K	4,000 - 9,999
VA6-E27-045-8-30-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	80	3000K	4,000 - 9,999
VA6-E27-030-9-40-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	90	4000K	< 3,999
VA6-E27-030-9-50-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	90	5000K	< 3,999
VA6-E27-030-8-27-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	80	2700K	< 3,999
VA6-E27-030-8-30-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	80	3000K	< 3,999
VA6-E27-030-8-35-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	80	3500K	4,000 - 9,999
VA6-E27-030-8-40-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	80	4000K	4,000 - 9,999
VA6-E27-030-8-50-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	80	5000K	4,000 - 9,999
VA6-E27-030-9-27-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	90	2700K	< 3,999
VA6-E27-030-9-30-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	90	3000K	< 3,999
VA6-E27-030-9-35-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	90	3500K	< 3,999

part number	Base Type	Power	CRI	CCT	Lumen Range
VA6-E26-045-9-50-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	90	5000K	4,000 - 9,999
VA6-E26-045-9-40-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	90	4000K	4,000 - 9,999
VA6-E26-045-9-35-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	90	3500K	4,000 - 9,999
VA6-E26-045-9-30-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	90	3000K	4,000 - 9,999
VA6-E26-045-9-27-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	90	2700K	4,000 - 9,999
VA6-E26-045-8-50-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	80	5000K	4,000 - 9,999
VA6-E26-045-8-40-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	80	4000K	4,000 - 9,999
VA6-E26-045-8-35-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	80	3500K	4,000 - 9,999
VA6-E26-045-8-30-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	80	3000K	4,000 - 9,999
VA6-E26-045-8-27-VH-AN-B90-000-PT1	Medium (E26/E27)	45W	80	2700K	4,000 - 9,999
VA6-E26-030-9-50-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	90	5000K	< 3,999
VA6-E26-030-9-40-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	90	4000K	< 3,999
VA6-E26-030-9-35-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	90	3500K	< 3,999
VA6-E26-030-9-30-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	90	3000K	< 3,999
VA6-E26-030-9-27-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	90	2700K	< 3,999
VA6-E26-030-8-50-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	80	5000K	4,000 - 9,999
VA6-E26-030-8-40-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	80	4000K	4,000 - 9,999
VA6-E26-030-8-35-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	80	3500K	4,000 - 9,999
VA6-E26-030-8-30-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	80	3000K	< 3,999
VA6-E26-030-8-27-VH-AN-B90-000-PT1	Medium (E26/E27)	30W	80	2700K	< 3,999
