Control Cap

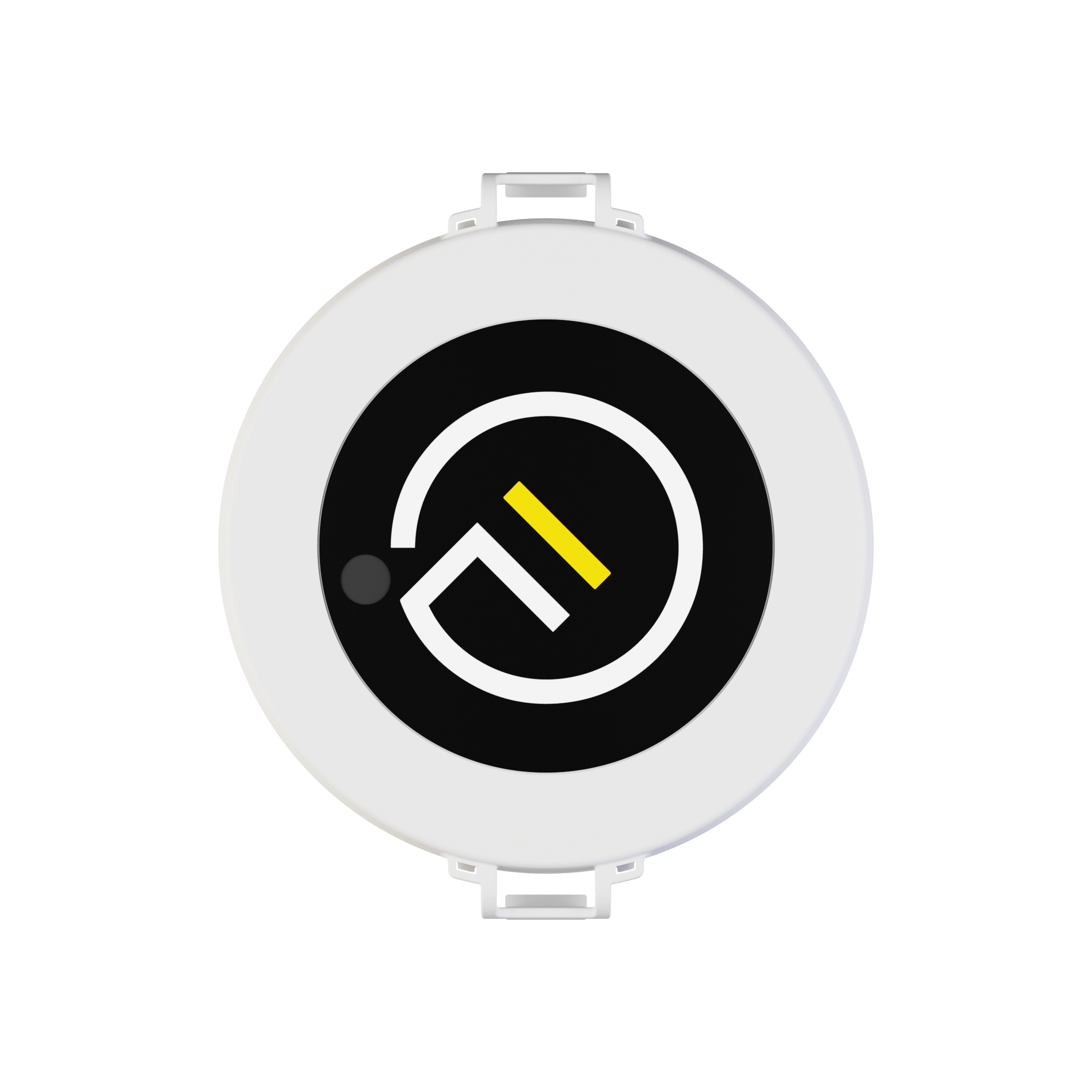

Manual Set Dim Control Cap

Provides flexible power adjustments from 10% to 100% in 10% increments
Replaces the front cap of lamps and luminaires
Allows for adjustable varying lumen outputs without needing to purchase various lamps with different power levels, keeping only one type of lamp in inventory (Example: By dialing to 90%, the 165W lamp will adjust to 150W)

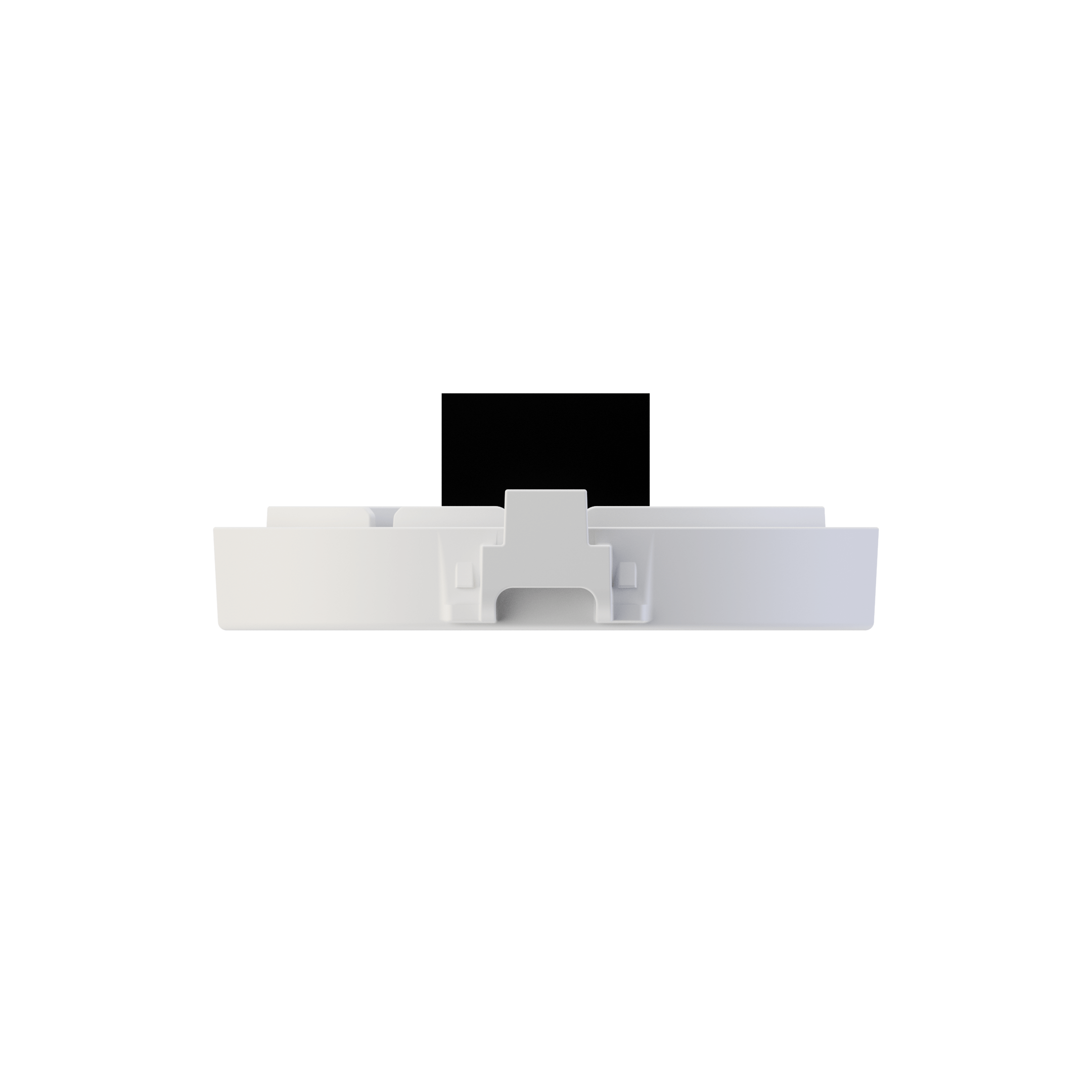

With tabs: Ø 3.50" (89mm) x 0.65" (16.5mm)
Without tabs: Ø 2.95" (75mm) x 0.65" (16.5mm)

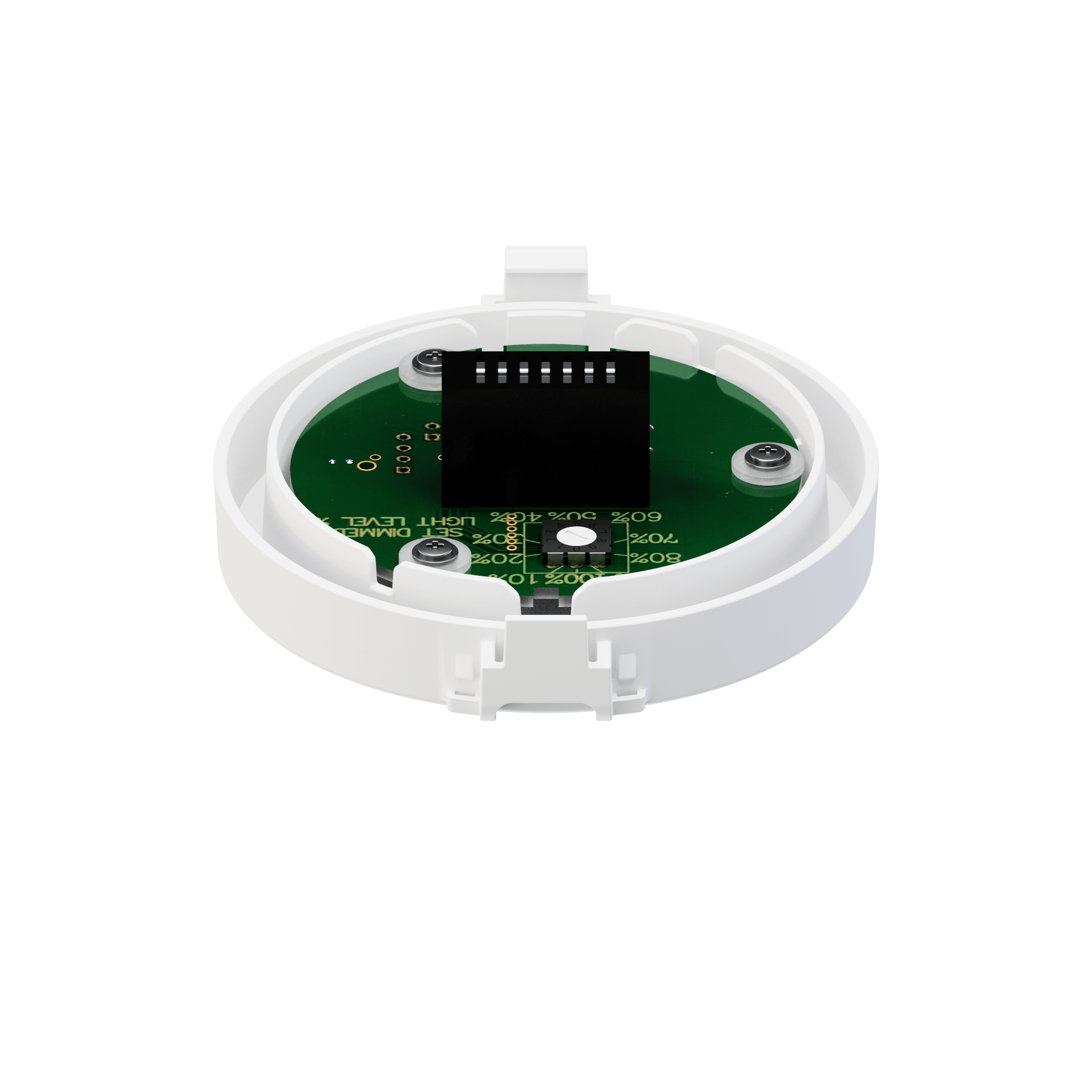

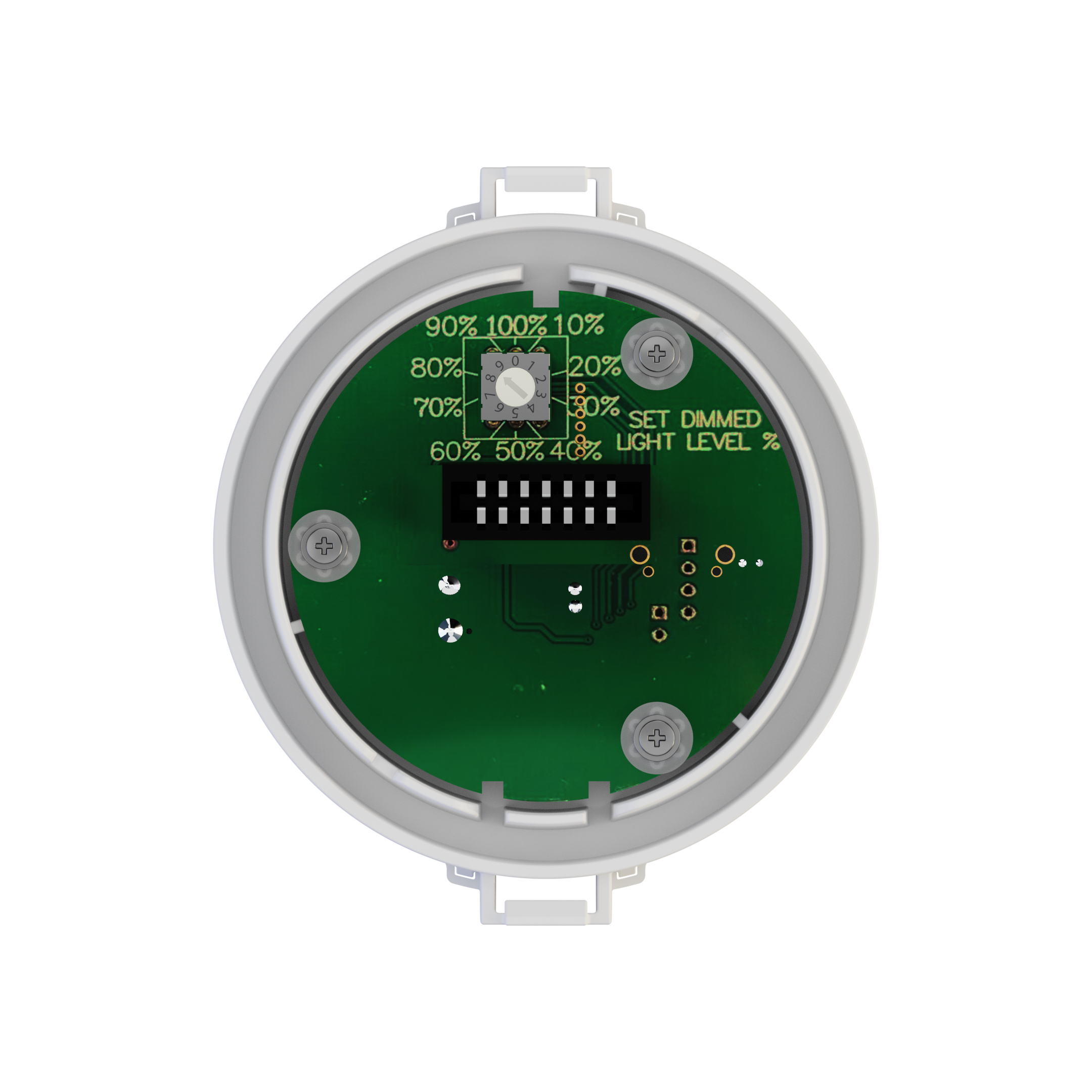

Using a screwhead, turn the arrow to adjust the light levels in 10% increments
100% is full lumen output

Name	Media
Manual Set Dim Control Cap Spec Sheet (All Regions)
Control Cap Installation Video (All Regions)

Ordering Information

part number	Control Type	Quick Ship	Region	Spec Sheet	QTY	Add to Quote
CAP-A75-PR1-WH-FL-FL	Manual Set Dim	Yes	UL/ULC USA/Canada

part number	Control Type	Quick Ship	Region	Spec Sheet	QTY	Add to Quote
CAP-A75-PR1-WH-FL-FL	Manual Set Dim	Yes	DLC USA

part number	Control Type	Quick Ship	Region	Spec Sheet	QTY	Add to Quote
CAP-A75-PR1-WH-FL-FL	Manual Set Dim	Yes	CB/CE Europe and Rest of the World

part number	Control Type	Quick Ship	Region	Spec Sheet	QTY	Add to Quote
CAP-A75-PR1-WH-FL-FL	Manual Set Dim	Yes	PSE Japan
