ADP Mounting Base

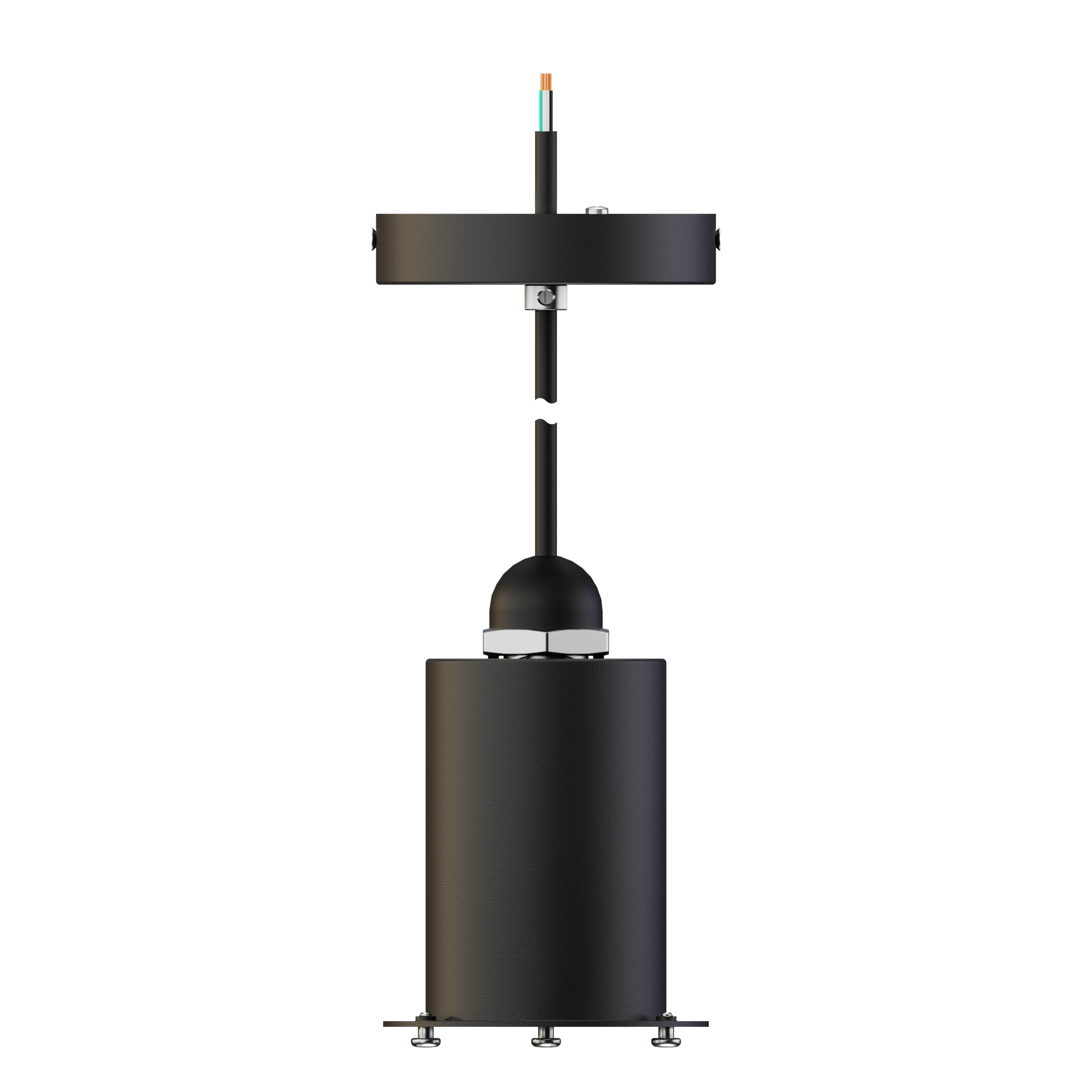

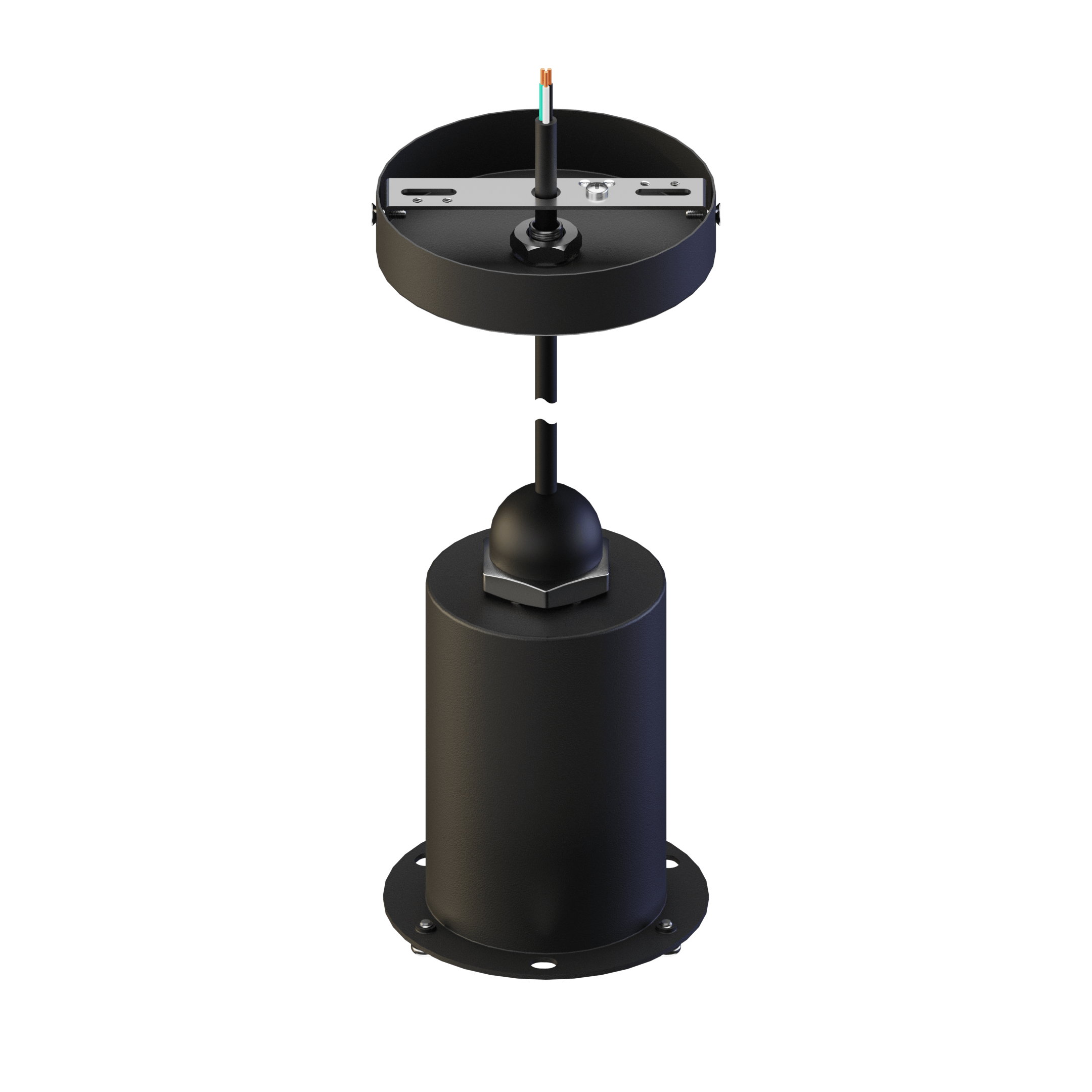

ADP Base Pendant Mount - Black

Provides a mogul base to power Filamento lamps
Compatible with various cosmetic reflectors including prismatic, metal and cylinders.
3/4” NPT option
2m (6.56') or 5m (16.4') cable option
See other specification sheets for mounting options including Stem, Hook, Surface, and Aircraft cable

1.25 lb / 0.57kg
Ø 4.65" (118mm) x 5.125" (130mm)
Powder-coated matte finish
Solid aluminum body

UL/ULC, DLC, CE/CB, PSE, KC, RoHS/ REACH
IP52 and UL Listed for wet locations when paired with IP52 socketed lamp

100-277 VAC, 50-60 Hz

Name	Media
ADP Base Pendant Spec Sheet - CCC (CCC China )
ADP Base Pendant Spec Sheet - CCC (CCC China )
ADP Base Pendant Spec Sheet - KC (KC Korea )
ADP Base Pendant Spec Sheet - KC (KC Korea )
ADP Base Pendant Spec Sheet - PSE (PSE Japan )
ADP Base Pendant Spec Sheet - PSE (PSE Japan )
ADP Base Pendant Spec Sheet - CE/CB (CB/CE Europe and Rest of the World )
ADP Base Pendant Spec Sheet - CE/CB (CB/CE Europe and Rest of the World )
ADP Base Pendant Spec Sheet - UL (DLC USA )
ADP Base Pendant Spec Sheet - UL (DLC USA )
ADP Base Pendant Spec Sheet - UL (UL/ULC USA/Canada )
ADP Base Pendant Spec Sheet - UL (UL/ULC USA/Canada )
ADP Mounting Base to Reflector Installation Guide (All Regions)

Ordering Information

part number	Base	Color	Cable Length	Labeled Power	Termination	Spec Sheet	QTY	Add to Quote
ADP-E39-SUS-20-WIRE-0300-001-001-FL	E39	Black	2M/6'	300W	WIRE
ADP-E39-SUS-50-WIRE-0300-001-001-FL	E39	Black	5M/15'	300W	WIRE

part number	Base	Color	Cable Length	Labeled Power	Termination	Spec Sheet	QTY	Add to Quote
ADP-E39-SUS-20-WIRE-0300-001-001-FL	E39	Black	2M/6'	300W	WIRE
ADP-E39-SUS-50-WIRE-0300-001-001-FL	E39	Black	5M/15'	300W	WIRE

part number	Base	Color	Cable Length	Labeled Power	Termination	Spec Sheet	QTY	Add to Quote
ADP-E40-SUS-20-WIRE-0300-001-001-FL	E40	Black	2M/6'	300W	WIRE
ADP-E40-SUS-50-WIRE-0300-001-001-FL	E40	Black	5M/15'	300W	WIRE

part number	Base	Color	Cable Length	Labeled Power	Termination	Spec Sheet	QTY	Add to Quote
ADP-E39-SUS-20-JP01-0300-001-001-FL	E39	Black	2M/6'	300W	JP01
ADP-E39-SUS-50-JP01-0300-001-001-FL	E39	Black	5M/15'	300W	JP01

part number	Base	Color	Cable Length	Labeled Power	Termination	Spec Sheet	QTY	Add to Quote
ADP-E39-SUS-20-WIRE-0300-001-001-FL	E39	Black	2M/6'	300W	WIRE
ADP-E39-SUS-50-WIRE-0300-001-001-FL	E39	Black	5M/15'	300W	WIRE
