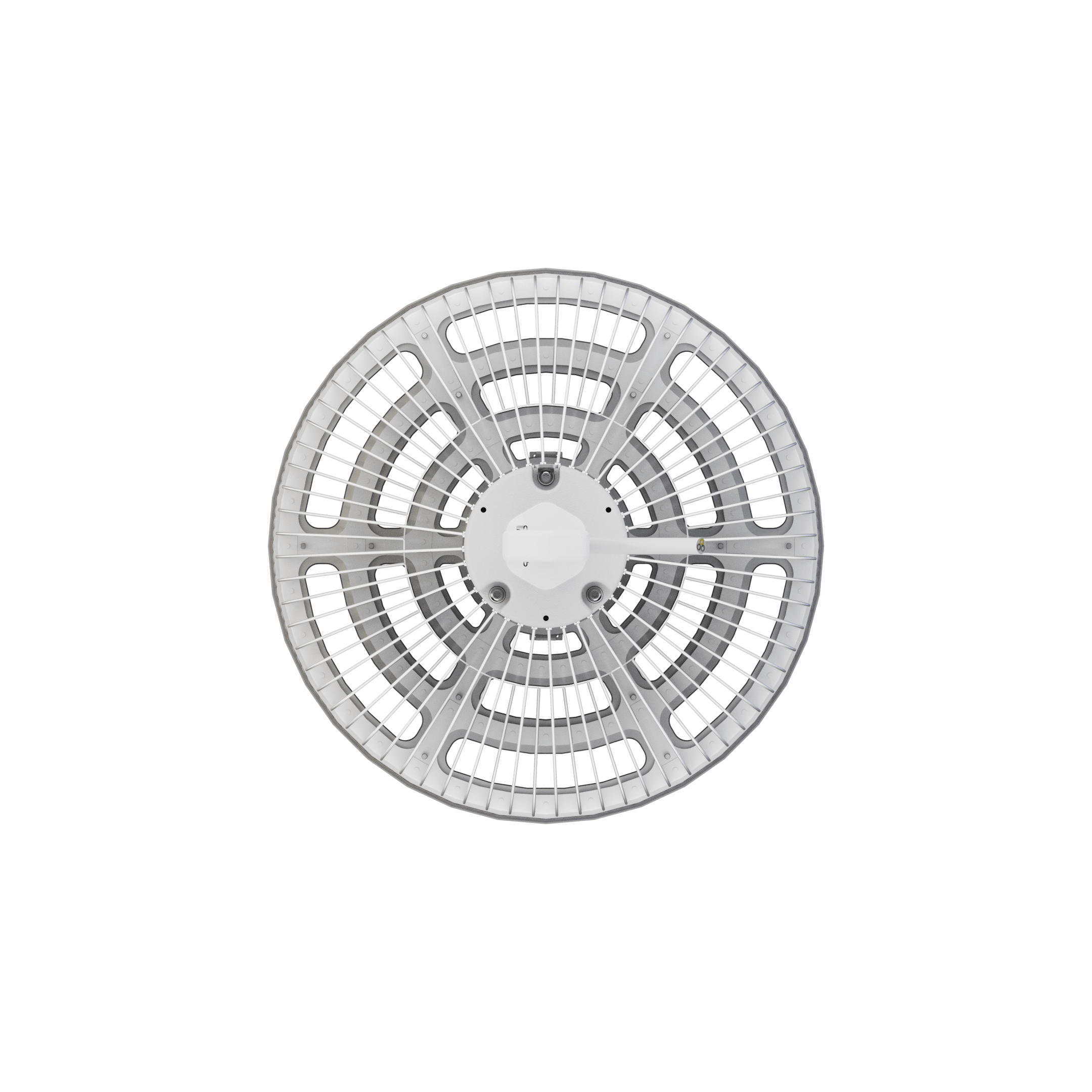

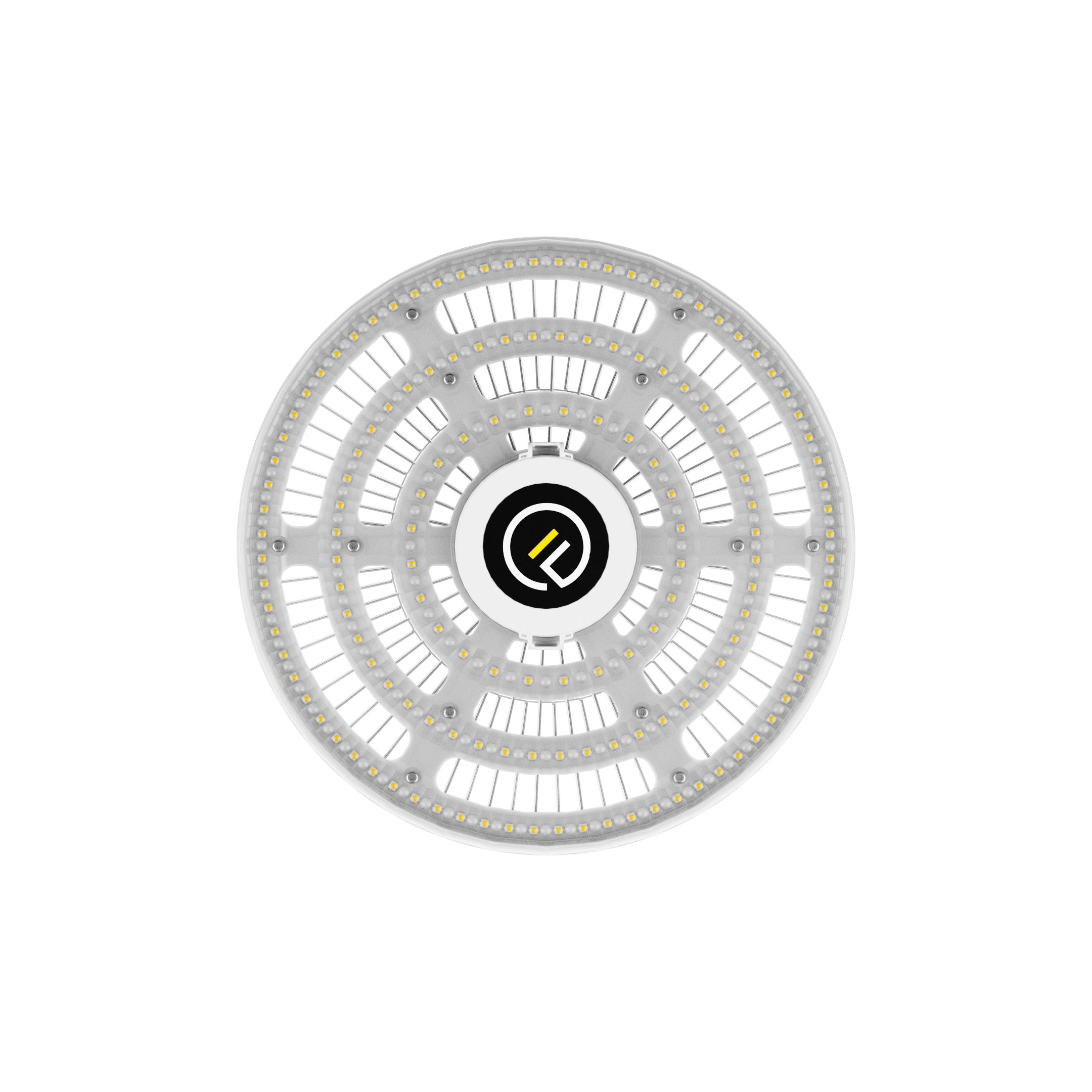

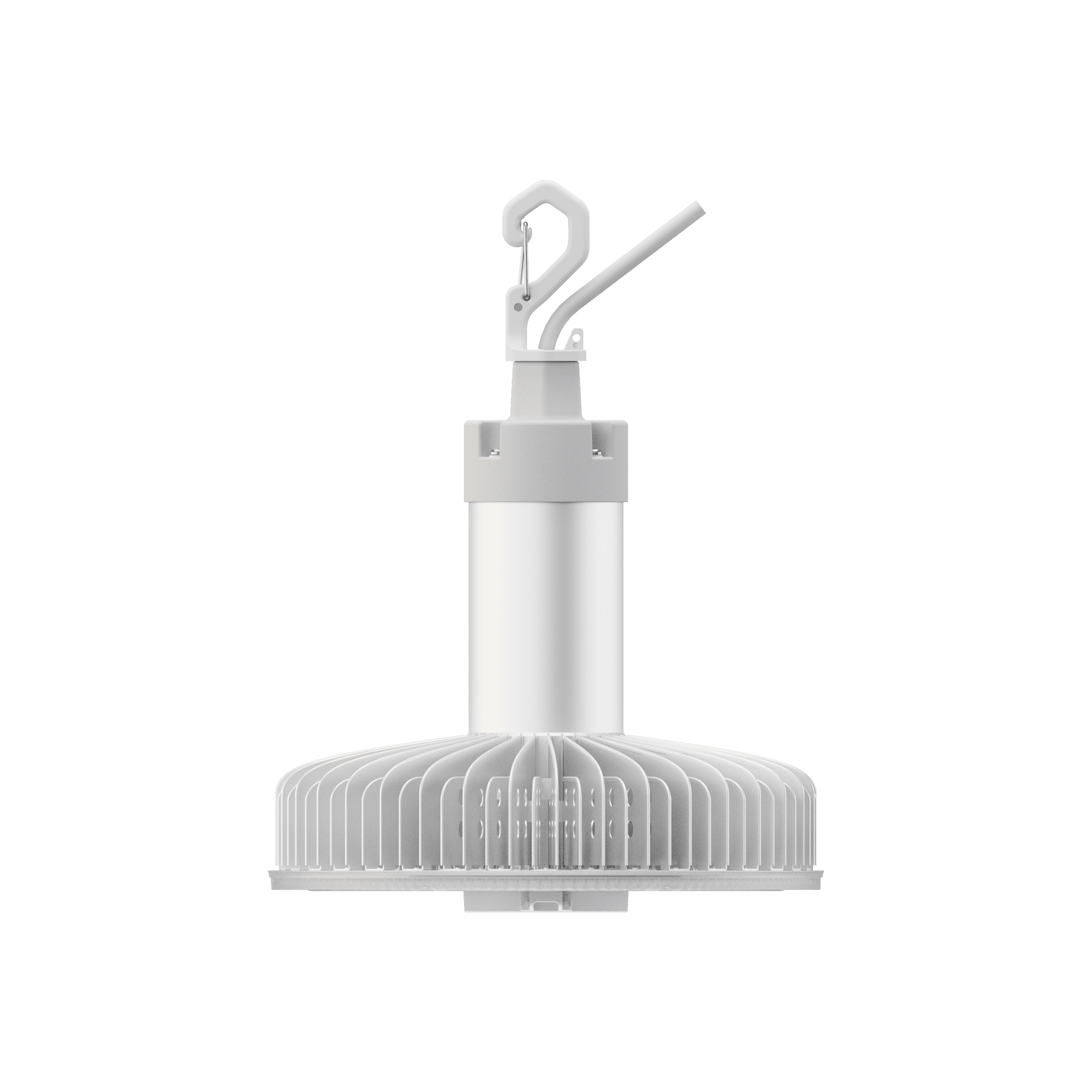

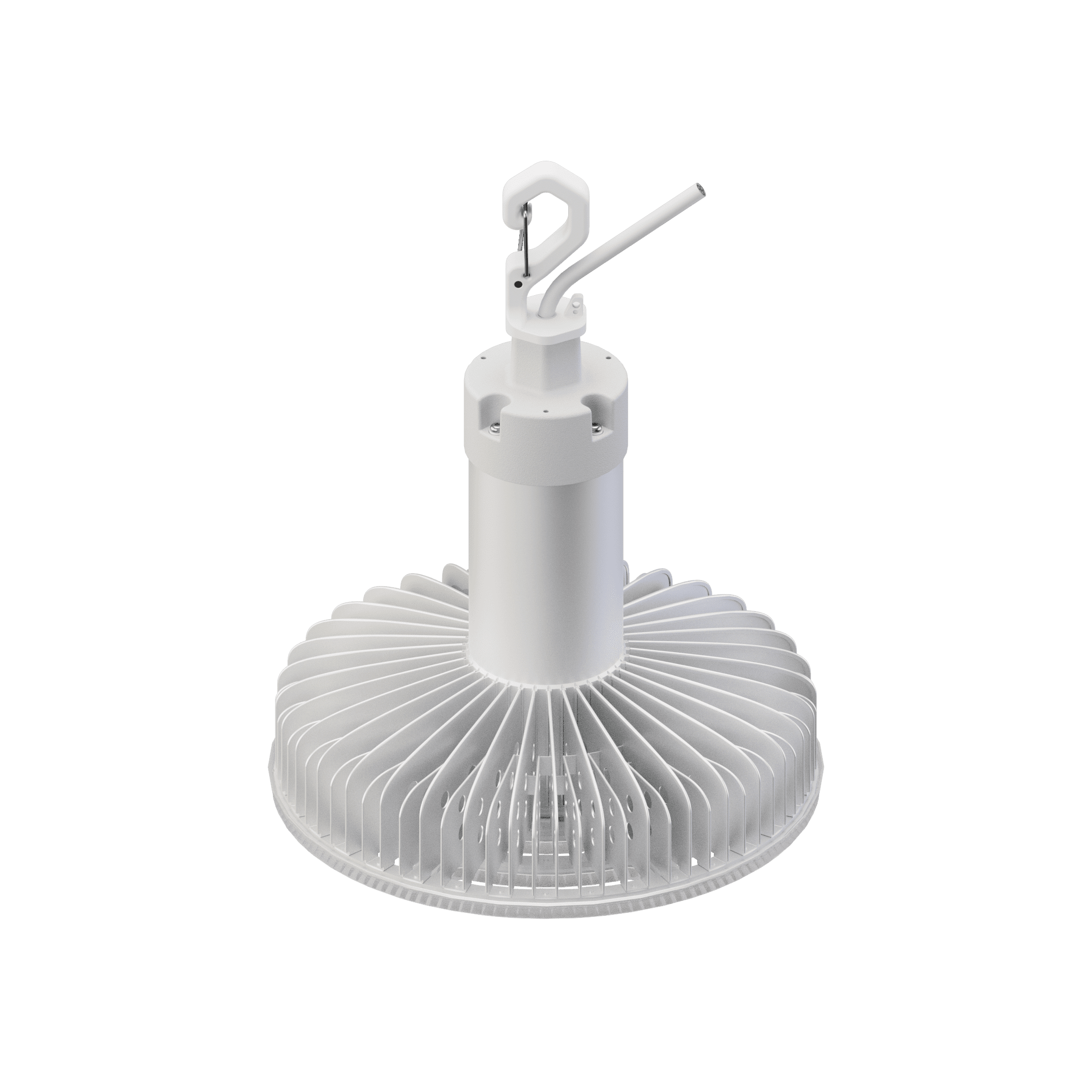

Up to 23,500 Lumens: 10" (25.4cm) Diameter

Fixture

Select V2L V2M

Up to 23,500 Lumens, 156 L/W
Certified for 100-277 VAC

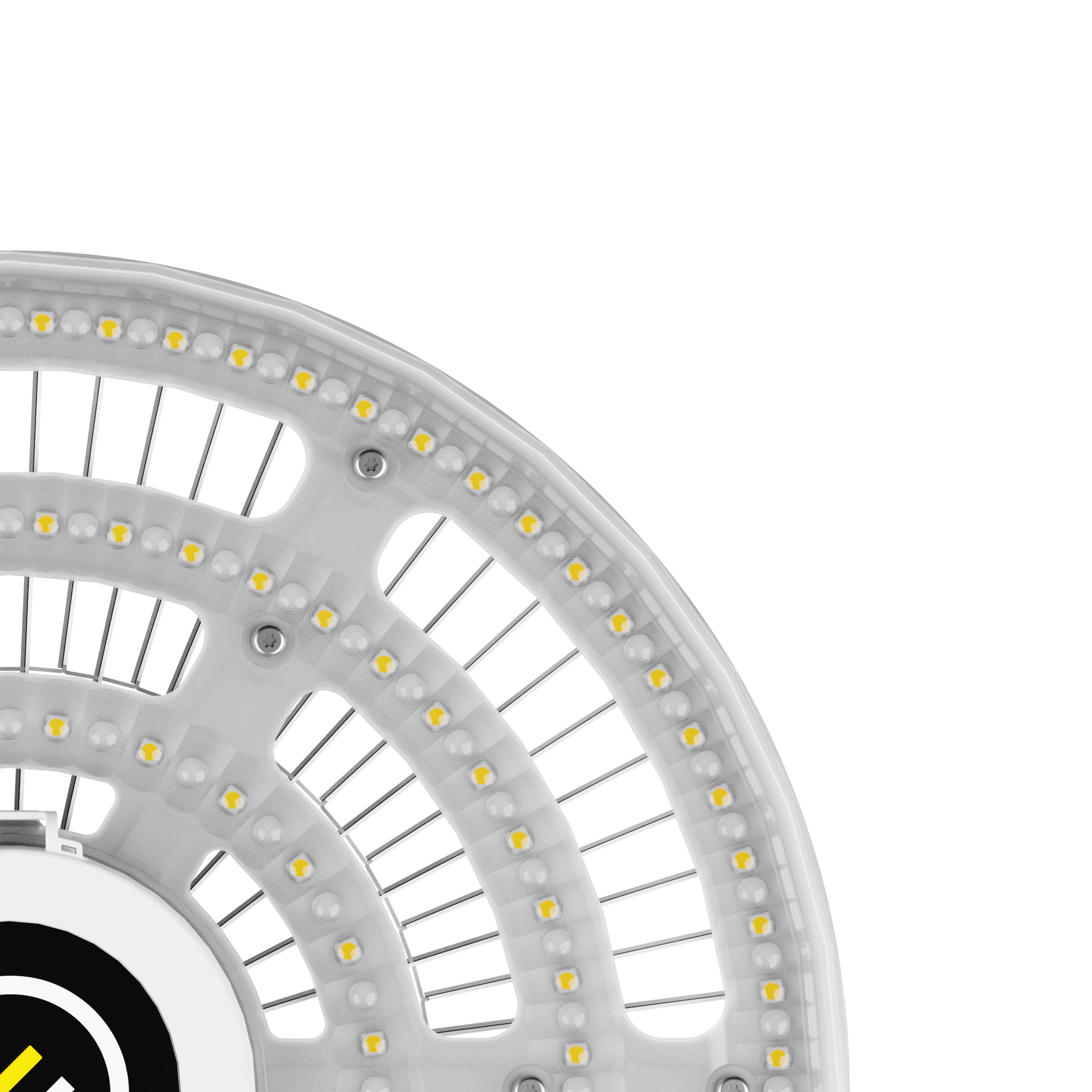

Integrated Patented Optic provides:
- Low Glare UGR<18
- 1.3x cd/lumen higher efficiency over no optic
80 CRI Standard, High CRI optional
Wireless control options
Temperature protection with full output:
- T(Ambient) = 55oC/150F for 105W
- T(Ambient) = 45oC/115F for 150W
- T(Ambient) = 40oC/115F for 165W
Five Year or 50,000 Hour warranty

Anodized solid aluminum body
Fixture socket, vertical orientation only
4.89lb (2.22kg)
Ø 10.48" (262mm) x 13.93" (354mm)

Wireless Options:
- Synpase, Casambi, Avi-On
Non Wiress Options:
- Occupancy & Daylight, Manual Power Set
Dims to 10% then to off

UL/ULC, DLC, CE/CB, PSE, NOM
IP52 / UL damp listed standard
IP65 / UL wet optional

VL: Line Voltage 100-277 VAC, 50-60 Hz
VH: Hybrid: Ballast Compatible and Line Voltage 100-277 VAC
< 1% flicker
6 kV surge protection, PF>0.9/THD<20%

	Amps @ Line Voltage (VAC)
	100V	110V	120V	220V	240V	277V
105W	1.05A	0.95A	0.88A	0.48A	0.44A	0.38A
150W	1.50A	1.36A	1.25A	0.68A	0.63A	0.54A
165W	1.65A	1.50A	1.38A	0.75A	0.69A	0.60A

50° glare cutoff with UGR (ave) < 18
Field-installed optical accessories without the need for tools (Options include uplights and diffusers)

CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	105W	13,059	14,560	15,412	16,095	16,662	16,662
80	150W	17,308	19,298	20,427	21,332	22,084	22,084
90	105W	10,758	13,114	13,881	14,495	15,006	15,006
90	150W	14,258	17,380	18,397	19,212	19,889	19,889

CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	105W	12,868	14,347	15,187	15,859	16,418	16,418
80	150W	17,055	19,015	20,128	21,019	21,760	21,760
90	105W	10,600	11,819	12,510	13,064	13,525	13,525
90	150W	14,049	15,664	16,581	17,315	17,925	17,925

CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	105W	11,813	13,171	13,941	14,558	15,072	15,072
80	150W	15,656	17,456	18,477	19,295	19,976	19,976
90	105W	9,731	10,849	11,484	11,993	12,415	12,415
90	150W	12,897	14,380	15,221	15,895	16,455	16,455

CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	105W	11,120	12,398	13,123	13,704	14,188	14,188
80	150W	14,738	16,432	17,393	18,163	18,804	18,804
90	105W	9,160	10,213	10,810	11,289	11,687	11,687
90	150W	12,140	13,536	14,328	14,962	15,490	15,490

The Hybrid series is compatible with HID magnetic ballast between 175-600W. Such ballast types include probe start, pulse start, CWA, or reactive. The table below shows compatible ballast that have been tested. Input to ballast may be up to 480V. Optical distribution and lumen output are constant regardless of Ballast type or wattage. Ballast operation is not compatible with dimming or controls.

	HID Ballast Compatibility
Type	175W	200W	250W	320W	350W	400W	600W
Metal Halide	M57 M13/M152 MH175	-	M138/M153, MH250	M132/M154	M131	M155/M135 M59 MH400	-
HPS	-	S66	S50, NG250	-	-	S51, NG400	S106, NG600
MV	H175	-	-	-	-	-	-

Name	Media
V2L/V2M Fixture Spec Sheet - NOM (NOM Mexico )
V2L/V2M Fixture Spec Sheet - PSE (PSE Japan )
V2L/V2M Fixture Spec Sheet - CB/CE (CB/CE Europe and Rest of the World )
V2L/V2M Fixture Spec Sheet - DLC (DLC USA )
V2L/V2M Fixture Spec Sheet - UL (UL/ULC USA/Canada )
V2L/V2M Fixture Installation Guide (All Regions)

Ordering Information

part number	Base Type	Power	CRI	CCT	Lumen Range
V2L-FIX-105-8-30-VL-AN-B90-000-000-FL	Fixture	105W	80	3000K	15,000 - 19,999
V2L-FIX-105-8-27-VL-AN-B90-000-000-FL	Fixture	105W	80	2700K	10,000 - 14,999
V2L-FIX-150-9-50-VL-AN-B90-000-000-FL	Fixture	150W	90	5000K	15,000 - 19,999
V2L-FIX-150-9-40-VL-AN-B90-000-000-FL	Fixture	150W	90	4000K	15,000 - 19,999
V2L-FIX-150-9-35-VL-AN-B90-000-000-FL	Fixture	150W	90	3500K	15,000 - 19,999
V2L-FIX-150-9-30-VL-AN-B90-000-000-FL	Fixture	150W	90	3000K	15,000 - 19,999
V2L-FIX-150-9-27-VL-AN-B90-000-000-FL	Fixture	150W	90	2700K	15,000 - 19,999
V2L-FIX-150-8-50-VL-AN-B90-000-000-FL	Fixture	150W	80	5000K	20,000 - 26,000
V2L-FIX-150-8-40-VL-AN-B90-000-000-FL	Fixture	150W	80	4000K	20,000 - 26,000
V2L-FIX-150-8-35-VL-AN-B90-000-000-FL	Fixture	150W	80	3500K	20,000 - 26,000
V2L-FIX-150-8-30-VL-AN-B90-000-000-FL	Fixture	150W	80	3000K	20,000 - 26,000
V2L-FIX-105-9-50-VL-AN-B90-000-000-FL	Fixture	105W	90	5000K	10,000 - 14,999
V2L-FIX-105-9-40-VL-AN-B90-000-000-FL	Fixture	105W	90	4000K	10,000 - 14,999
V2L-FIX-105-9-35-VL-AN-B90-000-000-FL	Fixture	105W	90	3500K	10,000 - 14,999
V2L-FIX-105-9-30-VL-AN-B90-000-000-FL	Fixture	105W	90	3000K	10,000 - 14,999
V2L-FIX-105-9-27-VL-AN-B90-000-000-FL	Fixture	105W	90	2700K	10,000 - 14,999
V2L-FIX-105-8-50-VL-AN-B90-000-000-FL	Fixture	105W	80	5000K	15,000 - 19,999
V2L-FIX-105-8-40-VL-AN-B90-000-000-FL	Fixture	105W	80	4000K	15,000 - 19,999
V2L-FIX-105-8-35-VL-AN-B90-000-000-FL	Fixture	105W	80	3500K	15,000 - 19,999
V2L-FIX-150-8-27-VL-AN-B90-000-000-FL	Fixture	150W	80	2700K	15,000 - 19,999

part number	Base Type	Power	CRI	CCT	Lumen Range
V2L-FIX-105-8-50-VL-AN-B90-000-000-FL	Fixture	105W	80	5000K	15,000 - 19,999
V2L-FIX-150-8-50-VL-AN-B90-000-000-FL	Fixture	150W	80	5000K	20,000 - 26,000
V2L-FIX-150-8-40-VL-AN-B90-000-000-FL	Fixture	150W	80	4000K	20,000 - 26,000
V2L-FIX-105-8-40-VL-AN-B90-000-000-FL	Fixture	105W	80	4000K	15,000 - 19,999
V2L-FIX-105-8-35-VL-AN-B90-000-000-FL	Fixture	105W	80	3500K	15,000 - 19,999
V2L-FIX-105-8-30-VL-AN-B90-000-000-FL	Fixture	105W	80	3000K	15,000 - 19,999
V2L-FIX-105-8-27-VL-AN-B90-000-000-FL	Fixture	105W	80	2700K	10,000 - 14,999

part number	Base Type	Power	CRI	CCT	Lumen Range
V2L-FEU-150-9-50-VL-AN-B90-000-000-FL	Fixture	150W	90	5000K	15,000 - 19,999
V2L-FEU-150-9-40-VL-AN-B90-000-000-FL	Fixture	150W	90	4000K	15,000 - 19,999
V2L-FEU-150-9-35-VL-AN-B90-000-000-FL	Fixture	150W	90	3500K	15,000 - 19,999
V2L-FEU-150-9-30-VL-AN-B90-000-000-FL	Fixture	150W	90	3000K	15,000 - 19,999
V2L-FEU-150-9-27-VL-AN-B90-000-000-FL	Fixture	150W	90	2700K	15,000 - 19,999
V2L-FEU-150-8-50-VL-AN-B90-000-000-FL	Fixture	150W	80	5000K	20,000 - 26,000
V2L-FEU-150-8-40-VL-AN-B90-000-000-FL	Fixture	150W	80	4000K	20,000 - 26,000
V2L-FEU-150-8-35-VL-AN-B90-000-000-FL	Fixture	150W	80	3500K	20,000 - 26,000
V2L-FEU-150-8-30-VL-AN-B90-000-000-FL	Fixture	150W	80	3000K	20,000 - 26,000
V2L-FEU-150-8-27-VL-AN-B90-000-000-FL	Fixture	150W	80	2700K	15,000 - 19,999
V2L-FEU-105-9-40-VL-AN-B90-000-000-FL	Fixture	105W	90	4000K	10,000 - 14,999
V2L-FEU-105-9-35-VL-AN-B90-000-000-FL	Fixture	105W	90	3500K	10,000 - 14,999
V2L-FEU-105-9-30-VL-AN-B90-000-000-FL	Fixture	105W	90	3000K	10,000 - 14,999
V2L-FEU-105-9-27-VL-AN-B90-000-000-FL	Fixture	105W	90	2700K	10,000 - 14,999
V2L-FEU-105-8-50-VL-AN-B90-000-000-FL	Fixture	105W	80	5000K	15,000 - 19,999
V2L-FEU-105-8-40-VL-AN-B90-000-000-FL	Fixture	105W	80	4000K	15,000 - 19,999
V2L-FEU-105-8-35-VL-AN-B90-000-000-FL	Fixture	105W	80	3500K	15,000 - 19,999
V2L-FEU-105-8-30-VL-AN-B90-000-000-FL	Fixture	105W	80	3000K	15,000 - 19,999
V2L-FEU-105-8-27-VL-AN-B90-000-000-FL	Fixture	105W	80	2700K	10,000 - 14,999
V2L-FEU-105-9-50-VL-AN-B90-000-000-FL	Fixture	105W	90	5000K	10,000 - 14,999

part number	Base Type	Power	CRI	CCT	Lumen Range
V2L-FEU-150-8-27-VL-AN-B90-000-000-FL	Fixture	150W	80	2700K	15,000 - 19,999
V2L-FEU-150-9-27-VL-AN-B90-000-000-FL	Fixture	150W	90	2700K	15,000 - 19,999
V2L-FEU-150-8-30-VL-AN-B90-000-000-FL	Fixture	150W	80	3000K	20,000 - 26,000
V2L-FEU-150-8-35-VL-AN-B90-000-000-FL	Fixture	150W	80	3500K	20,000 - 26,000
V2L-FEU-150-8-40-VL-AN-B90-000-000-FL	Fixture	150W	80	4000K	20,000 - 26,000
V2L-FEU-150-8-50-VL-AN-B90-000-000-FL	Fixture	150W	80	5000K	20,000 - 26,000
V2L-FEU-150-9-30-VL-AN-B90-000-000-FL	Fixture	150W	90	3000K	15,000 - 19,999
V2L-FEU-150-9-35-VL-AN-B90-000-000-FL	Fixture	150W	90	3500K	15,000 - 19,999
V2L-FEU-150-9-40-VL-AN-B90-000-000-FL	Fixture	150W	90	4000K	15,000 - 19,999
V2L-FEU-150-9-50-VL-AN-B90-000-000-FL	Fixture	150W	90	5000K	15,000 - 19,999
V2L-FEU-105-9-40-VL-AN-B90-000-000-FL	Fixture	105W	90	4000K	10,000 - 14,999
V2L-FEU-105-9-50-VL-AN-B90-000-000-FL	Fixture	105W	90	5000K	10,000 - 14,999
V2L-FEU-105-8-27-VL-AN-B90-000-000-FL	Fixture	105W	80	2700K	10,000 - 14,999
V2L-FEU-105-8-30-VL-AN-B90-000-000-FL	Fixture	105W	80	3000K	15,000 - 19,999
V2L-FEU-105-8-35-VL-AN-B90-000-000-FL	Fixture	105W	80	3500K	15,000 - 19,999
V2L-FEU-105-8-40-VL-AN-B90-000-000-FL	Fixture	105W	80	4000K	15,000 - 19,999
V2L-FEU-105-8-50-VL-AN-B90-000-000-FL	Fixture	105W	80	5000K	15,000 - 19,999
V2L-FEU-105-9-27-VL-AN-B90-000-000-FL	Fixture	105W	90	2700K	10,000 - 14,999
V2L-FEU-105-9-30-VL-AN-B90-000-000-FL	Fixture	105W	90	3000K	10,000 - 14,999
V2L-FEU-105-9-35-VL-AN-B90-000-000-FL	Fixture	105W	90	3500K	10,000 - 14,999

part number	Base Type	Power	CRI	CCT	Lumen Range
V2L-FIX-150-9-50-VL-AN-B90-000-000-FL	Fixture	150W	90	5000K	15,000 - 19,999
V2L-FIX-150-9-40-VL-AN-B90-000-000-FL	Fixture	150W	90	4000K	15,000 - 19,999
V2L-FIX-150-9-35-VL-AN-B90-000-000-FL	Fixture	150W	90	3500K	15,000 - 19,999
V2L-FIX-150-9-30-VL-AN-B90-000-000-FL	Fixture	150W	90	3000K	15,000 - 19,999
V2L-FIX-150-9-27-VL-AN-B90-000-000-FL	Fixture	150W	90	2700K	15,000 - 19,999
V2L-FIX-105-9-50-VL-AN-B90-000-000-FL	Fixture	105W	90	5000K	10,000 - 14,999
V2L-FIX-105-9-40-VL-AN-B90-000-000-FL	Fixture	105W	90	4000K	10,000 - 14,999
V2L-FIX-105-9-35-VL-AN-B90-000-000-FL	Fixture	105W	90	3500K	10,000 - 14,999
V2L-FIX-105-9-30-VL-AN-B90-000-000-FL	Fixture	105W	90	3000K	10,000 - 14,999
V2L-FIX-105-9-27-VL-AN-B90-000-000-FL	Fixture	105W	90	2700K	10,000 - 14,999
V2L-FIX-150-8-50-VL-AN-B90-000-000-FL	Fixture	150W	80	5000K	20,000 - 26,000
V2L-FIX-150-8-40-VL-AN-B90-000-000-FL	Fixture	150W	80	4000K	20,000 - 26,000
V2L-FIX-150-8-35-VL-AN-B90-000-000-FL	Fixture	150W	80	3500K	20,000 - 26,000
V2L-FIX-150-8-30-VL-AN-B90-000-000-FL	Fixture	150W	80	3000K	20,000 - 26,000
V2L-FIX-150-8-27-VL-AN-B90-000-000-FL	Fixture	150W	80	2700K	15,000 - 19,999
V2L-FIX-105-8-50-VL-AN-B90-000-000-FL	Fixture	105W	80	5000K	15,000 - 19,999
V2L-FIX-105-8-40-VL-AN-B90-000-000-FL	Fixture	105W	80	4000K	15,000 - 19,999
V2L-FIX-105-8-35-VL-AN-B90-000-000-FL	Fixture	105W	80	3500K	15,000 - 19,999
V2L-FIX-105-8-30-VL-AN-B90-000-000-FL	Fixture	105W	80	3000K	15,000 - 19,999
V2L-FIX-105-8-27-VL-AN-B90-000-000-FL	Fixture	105W	80	2700K	10,000 - 14,999
