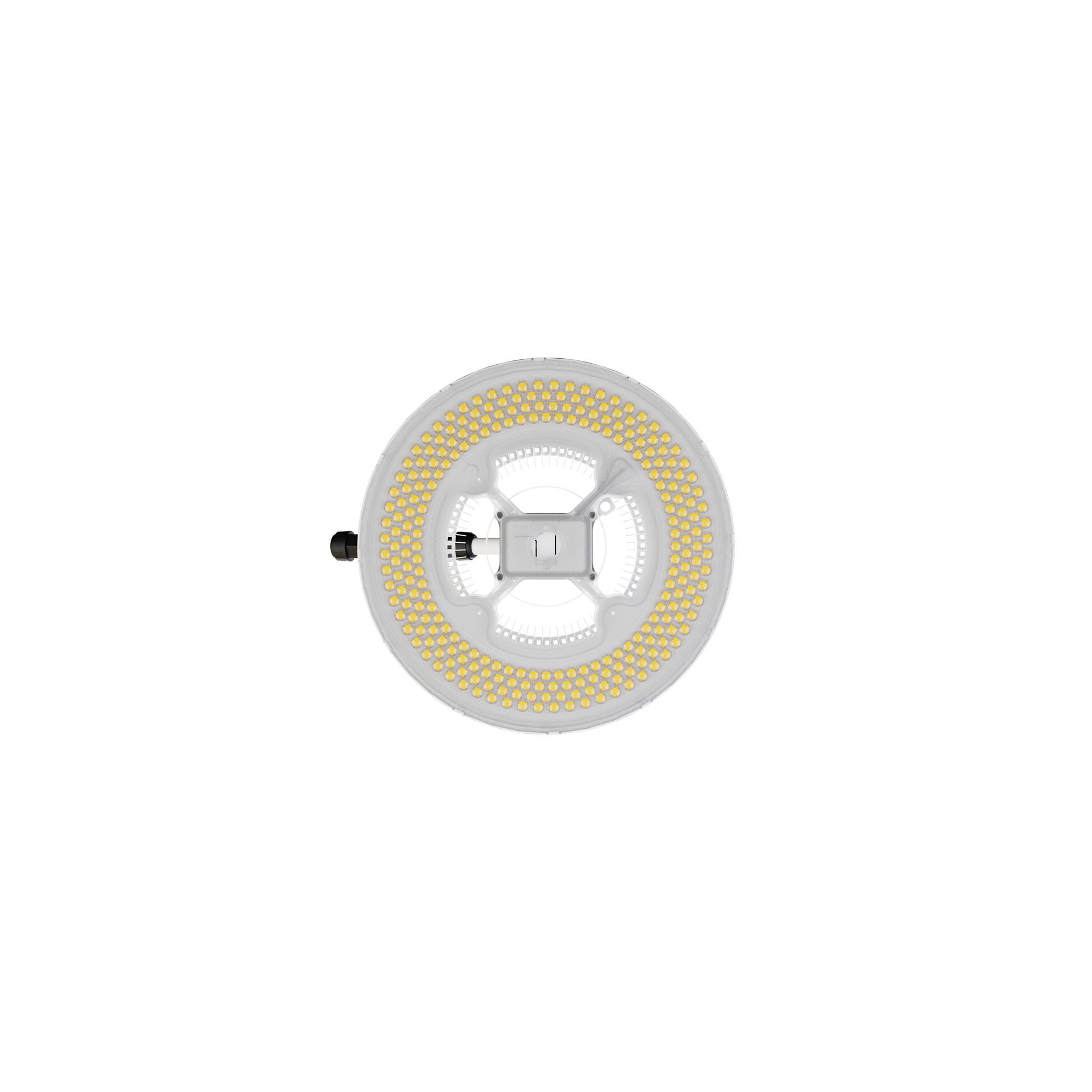

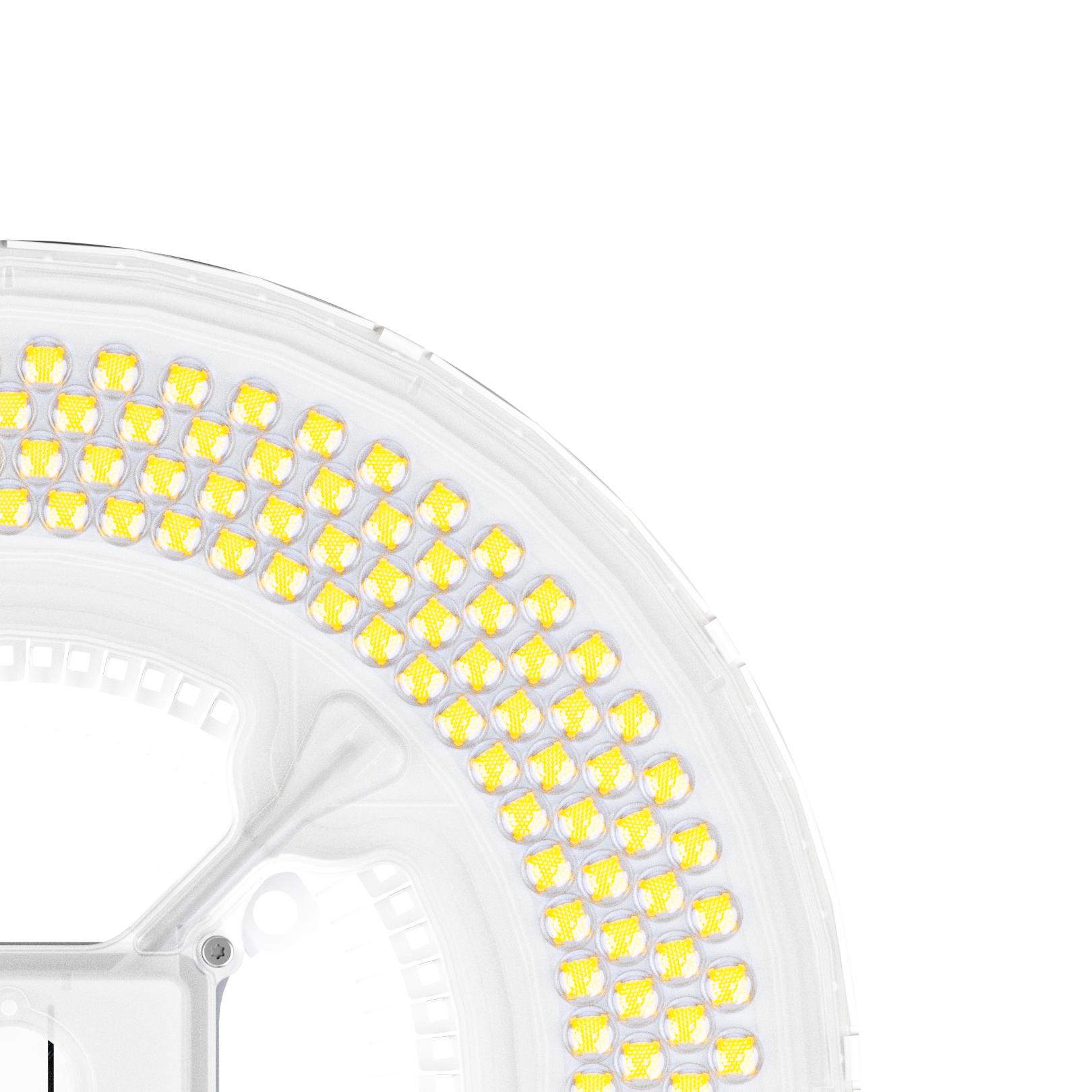

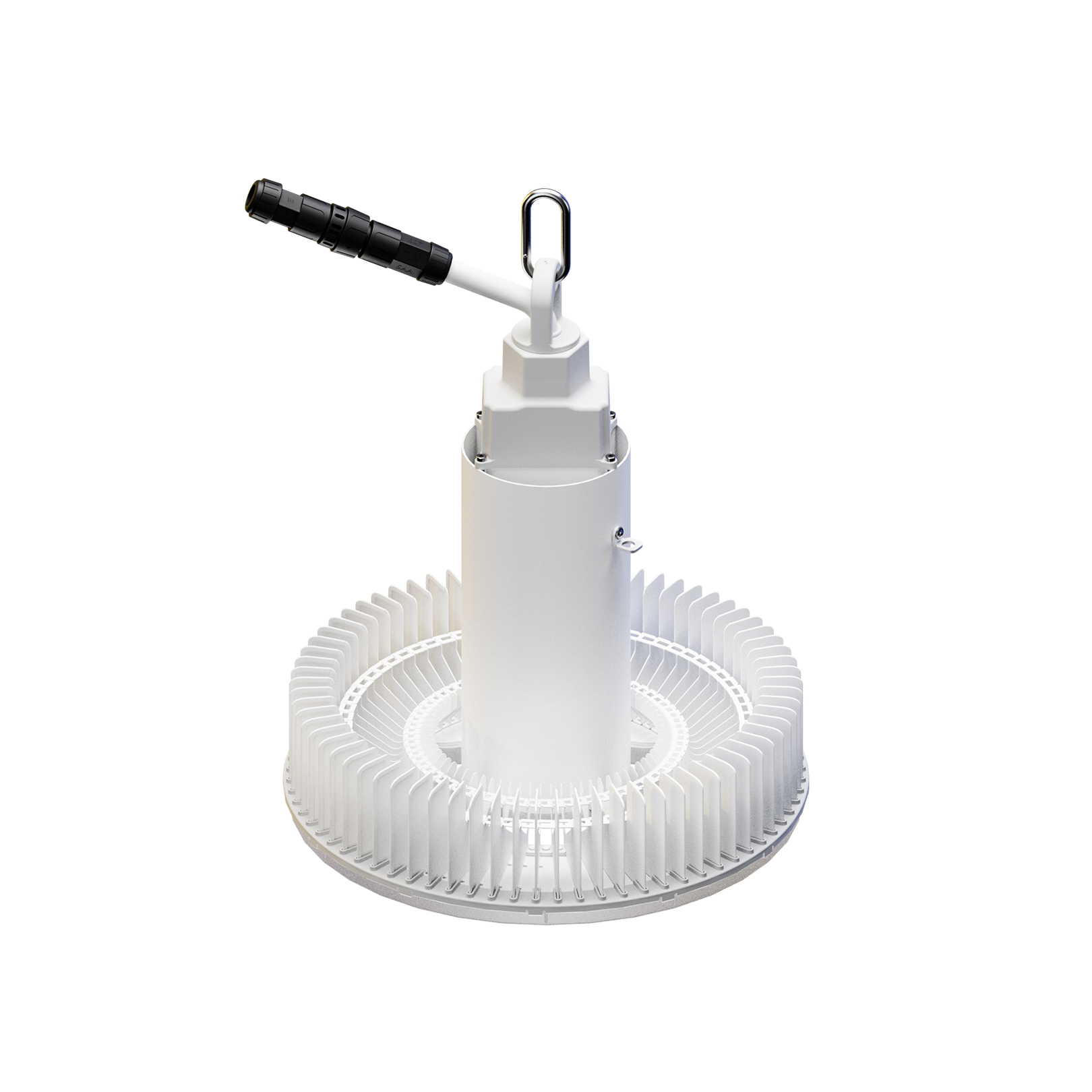

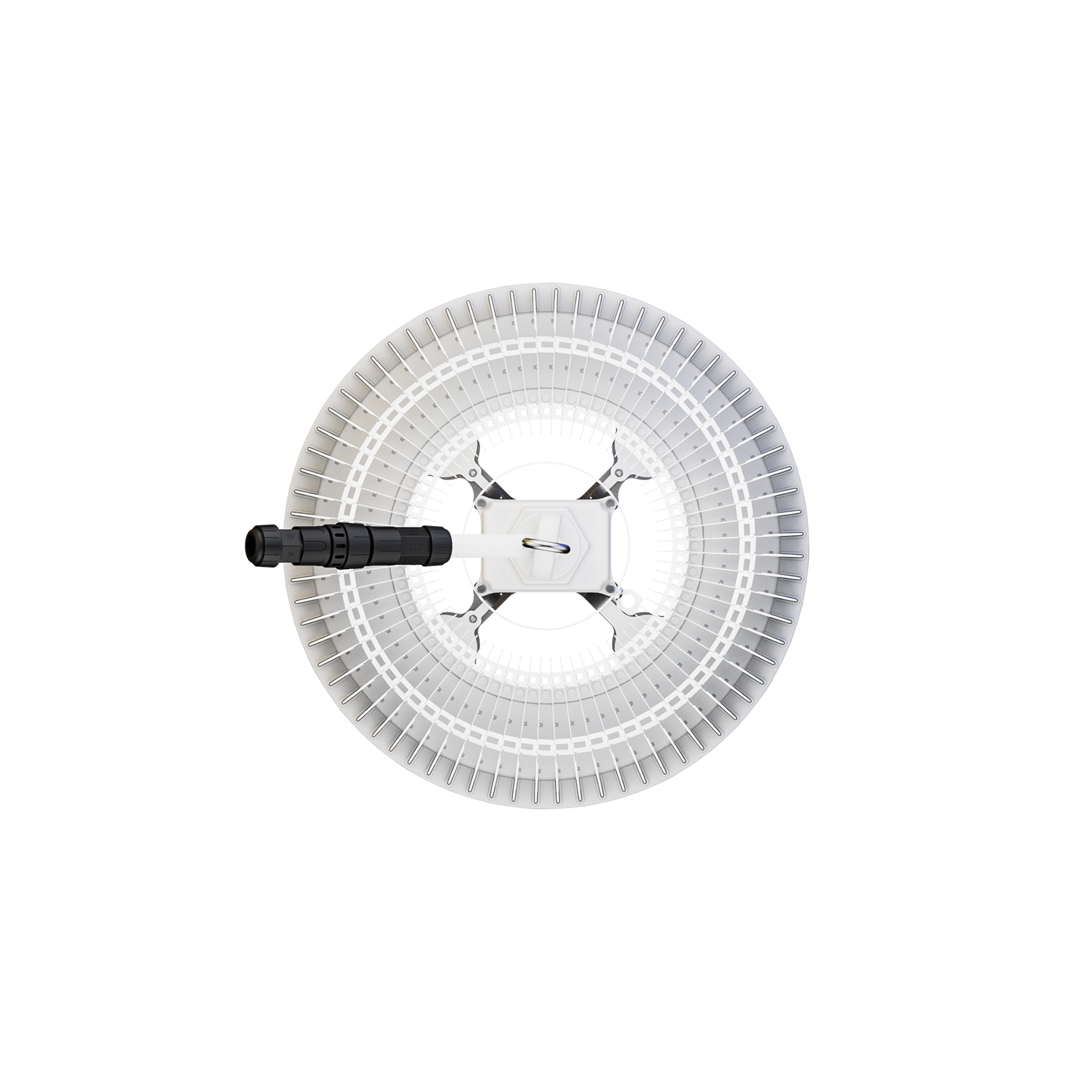

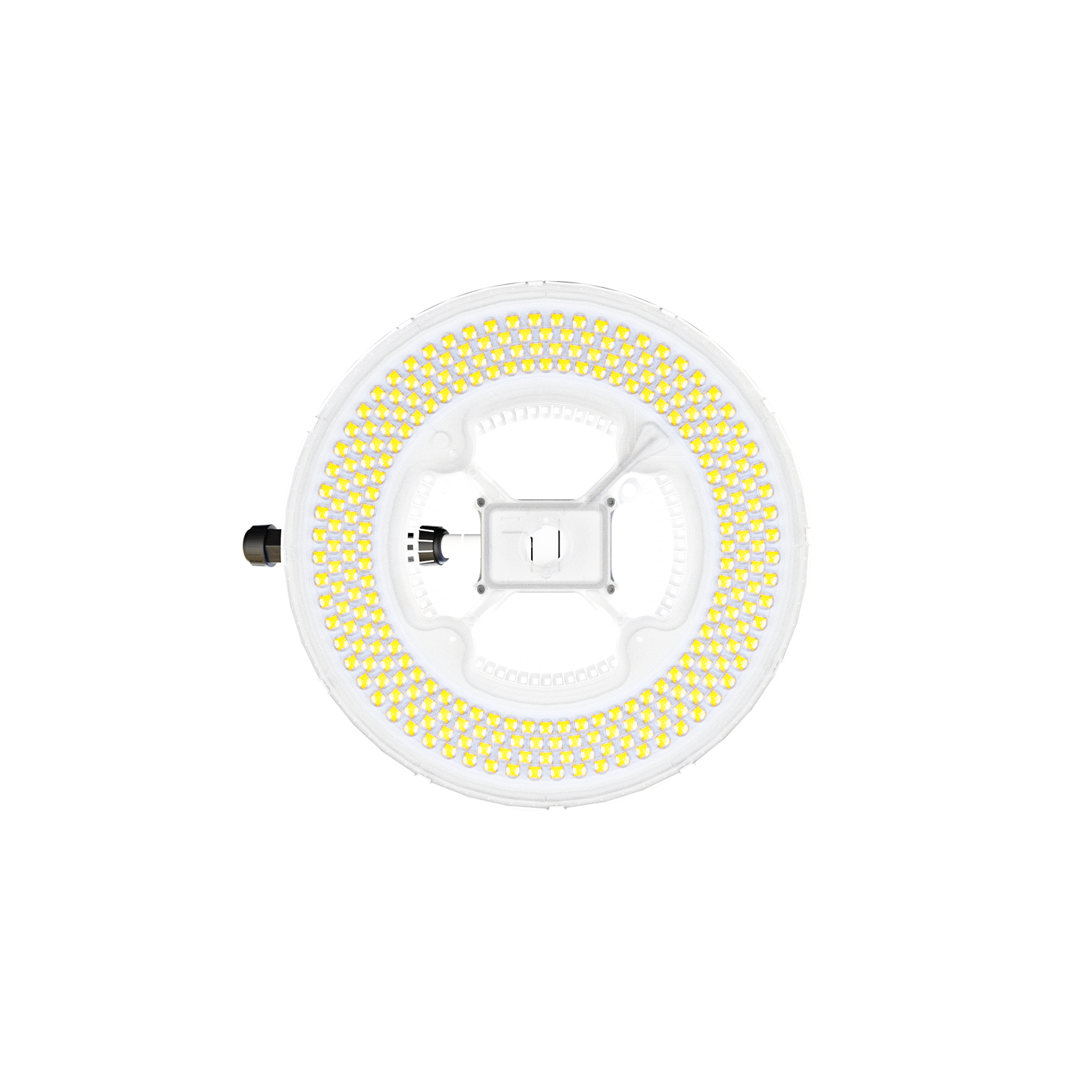

V4M Fixture

Up to 47,537 Lumens, T(Ambient) = 70ºC, 100-480 VAC

Applications

High lumens (e.g. 1000W HID Replacement)
High temperature environment (eg. steel plants)
High ceiling (eg. aircraft hangers)

General

Up to 47,537 Lumens @ 280W @ 80 CRI
Universal Voltage:
- 135W-200W 100-480 VAC
- 201W-280W 120-480 VAC
Temperature
- Up to T(Ambient) = 70ºC @ 200W opne fixture
- Up to T(Ambient) = 40ºC @ 200W enclose fixture
Low Glare, UGR<23
80 CRI Standard
Five Year warranty

Certifications [Pending]

IP65
ETL wet listed

Control Options

3 pin connector for off the shelf control modules
Power settable using NFC Phone Application

Mechanical

Mogul Base
Vertical Orientation
4.76 lb / 2.16 kg

Electrical

135W-200W 100-480 VAC
201W-280W 120-480 VAC
<1% Flicker
PF > 0.9, THD<20%
Surge: 6 kV (L-N), 10 kV (L-G, N-G)

	Amps @ Line Voltage (VAC)
	100V	120V	160V	240V	320V	400V	480V
135W	1.35A	1.13A	0.85A	0.57A	0.43A	0.34A	0.29A
200W	2.00A	1.67A	1.25A	0.83A	0.63A	0.50A	0.42A
240W	N/A	2.00A	1.50A	1.00A	0.75A	0.60A	0.50A
280W	N/A	2.33A	1.75A	1.17A	0.87A	0.70A	0.59A

			Lumens @ CCT		T(Ambient) Max
	Power	L/W	4000K	5000K	Open	Enclosed
High Efficiency	280W	181	50,772	50,772	50ºC	N/A
	240W	185	44,448	44,448	60ºC	N/A
	200W	200	37,636	37,636	70ºC	40°C
Standard Efficiency	280W	169	47,537	47,537	50ºC	N/A
	240W	174	41,576	41,576	60ºC	N/A
	200W	177	35,456	35,456	70ºC	40°C
	135W	185	25,000	25,000	70ºC	40°C

V4M Fixture Installation Guide (All Regions )

V4M Fixture Spec Sheet (UL/ULC )

P/N	Base	Power	CRI	CCT	Lumens	Termination	Control Module	IES	Spec
	FIX	200W	80	5000K	47,537	Quick Connect	3 Pin Control Ready
	FIX	240W	80	5000K	41,576	Quick Connect	3 Pin Control Ready
	FIX	280W	80	5000K	35,456	Quick Connect	3 Pin Control Ready
