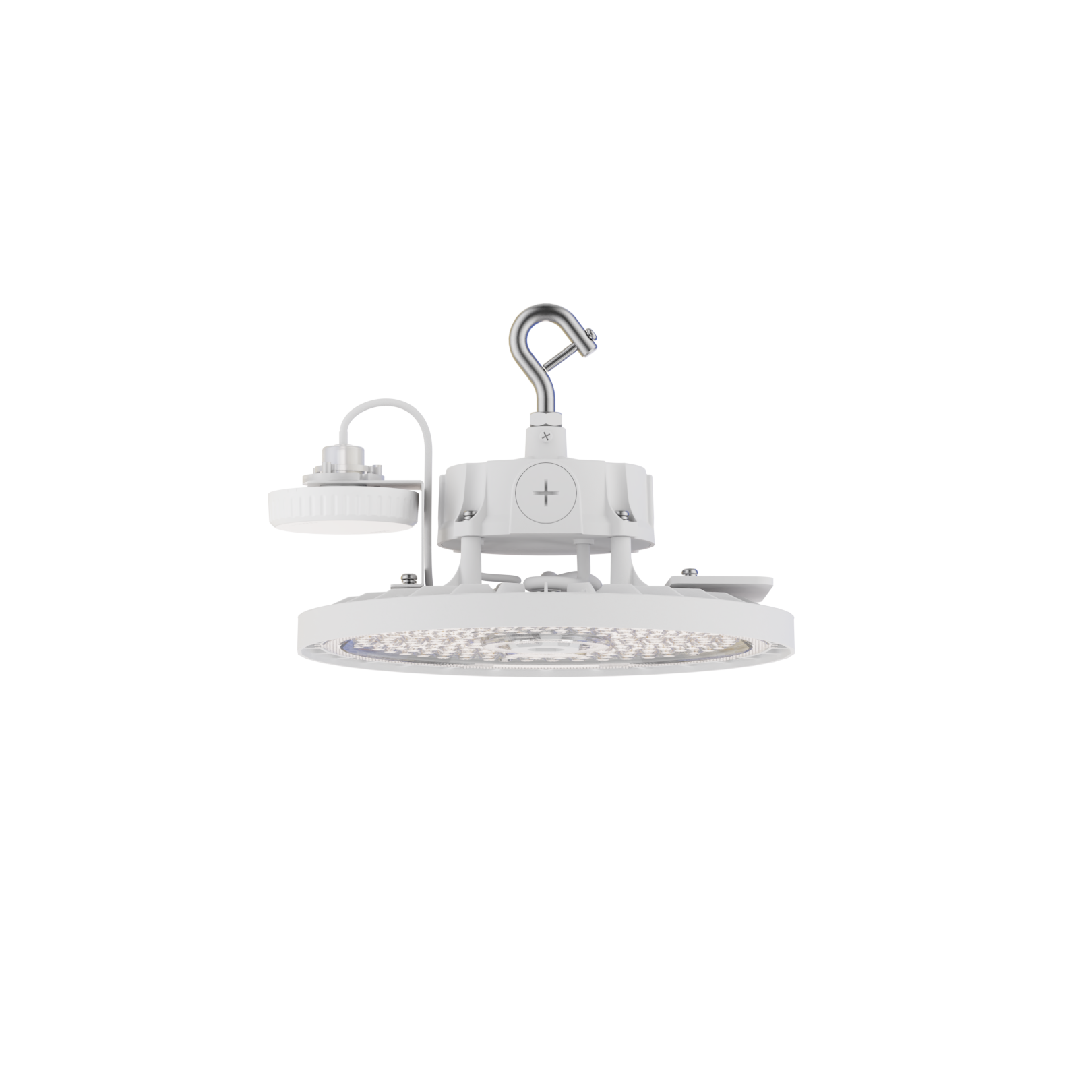

RH1 High Efficiency High Bay (Without Refractor and Uplight)

211 L/W, Low Glare, UGR<24

Applications

Retail
Warehousing
Manufacturing
Outdoor

General

26,349 Lumens, 125W, 211 L/W @ 80 CRI
- 136W, 150W also available
Key Optical Distribution Features:
- Low Glare UGR<24
120-277 VAC
Seven Years Warranty
Ten Years Warranty Optional

World Wide Certifications

UL, DLC Premium, IP65
UL wet listed
NOM

Control Options

Wireless:
- Synapse, Casambi
Local Fixture Control:
- 0-10V control
Dims to 10% then to off

Mechanical & Accessories

5 lbs / 2.26 kg
Included Hardware:
- Safety Harness, 1.8 m / 5.9 ft
- Jack Chain + 2 x Carabiner, 2.0 m / 6.6 ft
Ø 10.5" (266.7mm) x 6.15" (156mm) H

Lumen Maintenance

Hours
0	30,000	45,000	60,000	100,000	>108,000
100%	95%	93%	90%	84%	70%

Electrical

VS: 120-277 VAC, 50-60Hz
<1% Flicker
PF > 0.9, THD<20%
Surge: 6 kV (L-N), 6kV (L-G, N-G)
1.8 m / 6.0 ft Power Cable

Amps @ Line Voltage (VAC)
	120V	220V	240V	277V
125W	1.04A	0.57A	0.52A	0.45A
136W	1.13A	0.62A	0.57A	0.49A
150W	1.25A	0.68A	0.63A	0.54A

CRI	Power	4000K	5000K
80	125W	26,349	26,349
	136W	28,714	28,714
	150W	31,003	31,003

RH1 (Without Refractor and Uplight) Spec Sheet (UL/ULC )

RH1 Installation Guide (All Regions )

P/N	Base	Power	CRI	CCT	Lumens	Termination	Control Module	IES	Spec
	FIX	125W	80	4000K	26,349	Bare wire	Casambi
	FIX	136W	80	4000K	28,714	Bare wire	None
	FIX	125W	80	4000K	26,349	Bare wire	None
	FIX	125W	80	4000K	26,349	Bare wire	3 Pin Connector
	FIX	125W	80	4000K	26,349	Bare wire	Synapse
	FIX	136W	80	4000K	28,714	NEMA L715 Plug	3 Pin Connector
	FIX	136W	80	4000K	28,714	NEMA L715 Plug	Synapse
	FIX	136W	80	4000K	28,714	NEMA L715 Plug	None
	FIX	136W	80	5000K	28,714	NEMA L715 Plug	Synapse
	FIX	150W	80	4000K	31,003	NEMA L715 Plug	Synapse
	FIX	136W	80	4000K	28,714	NEMA L715 Plug	3 Pin Connector
