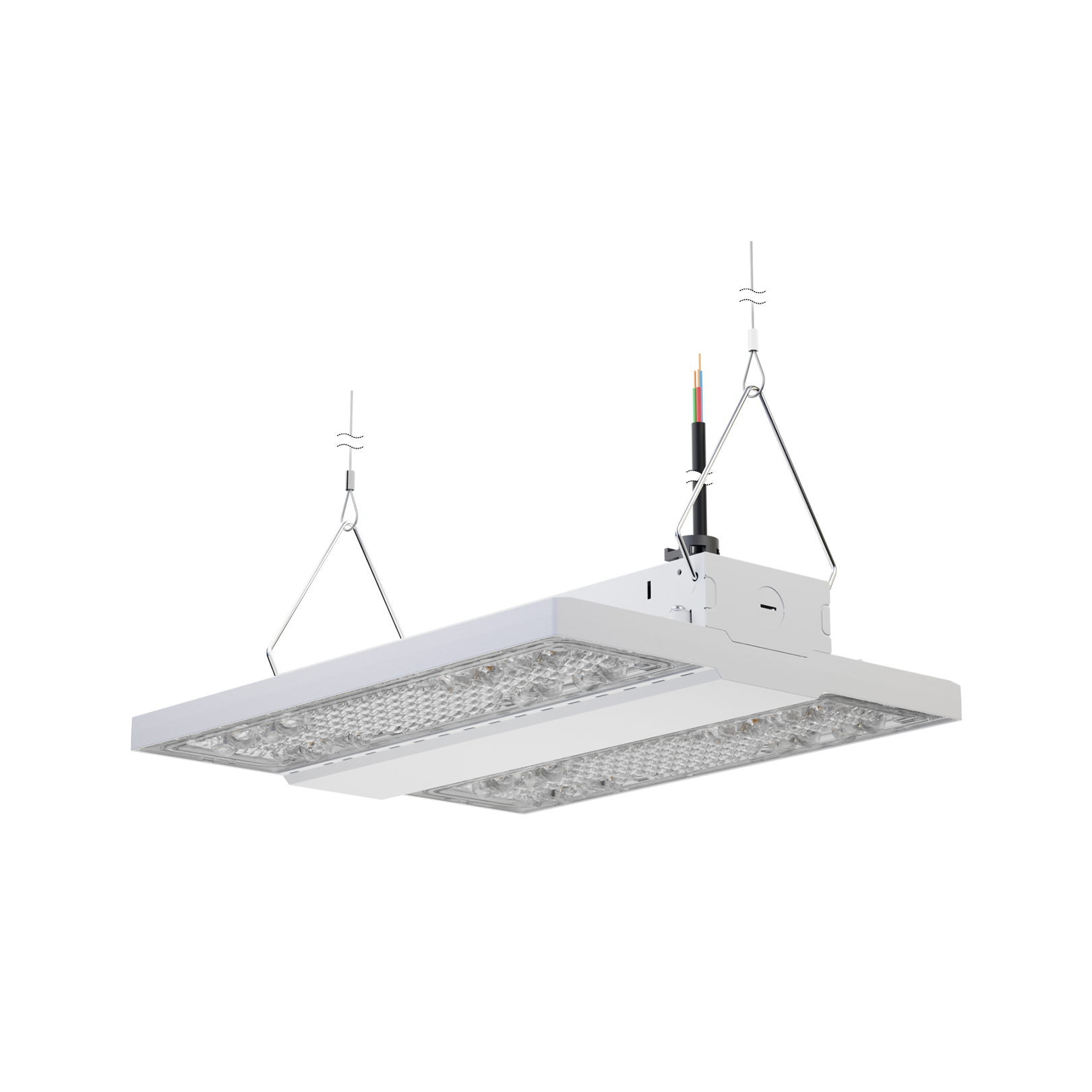

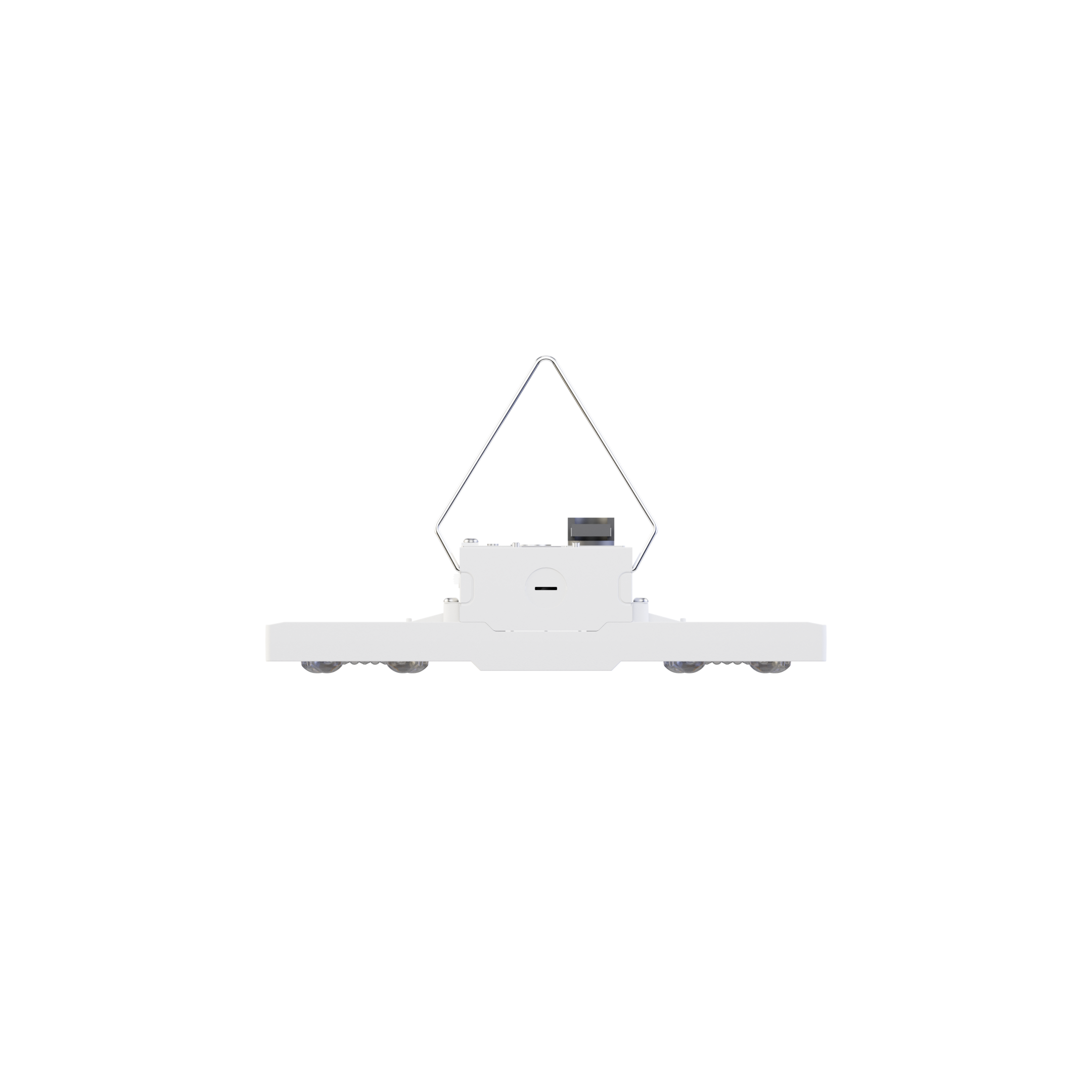

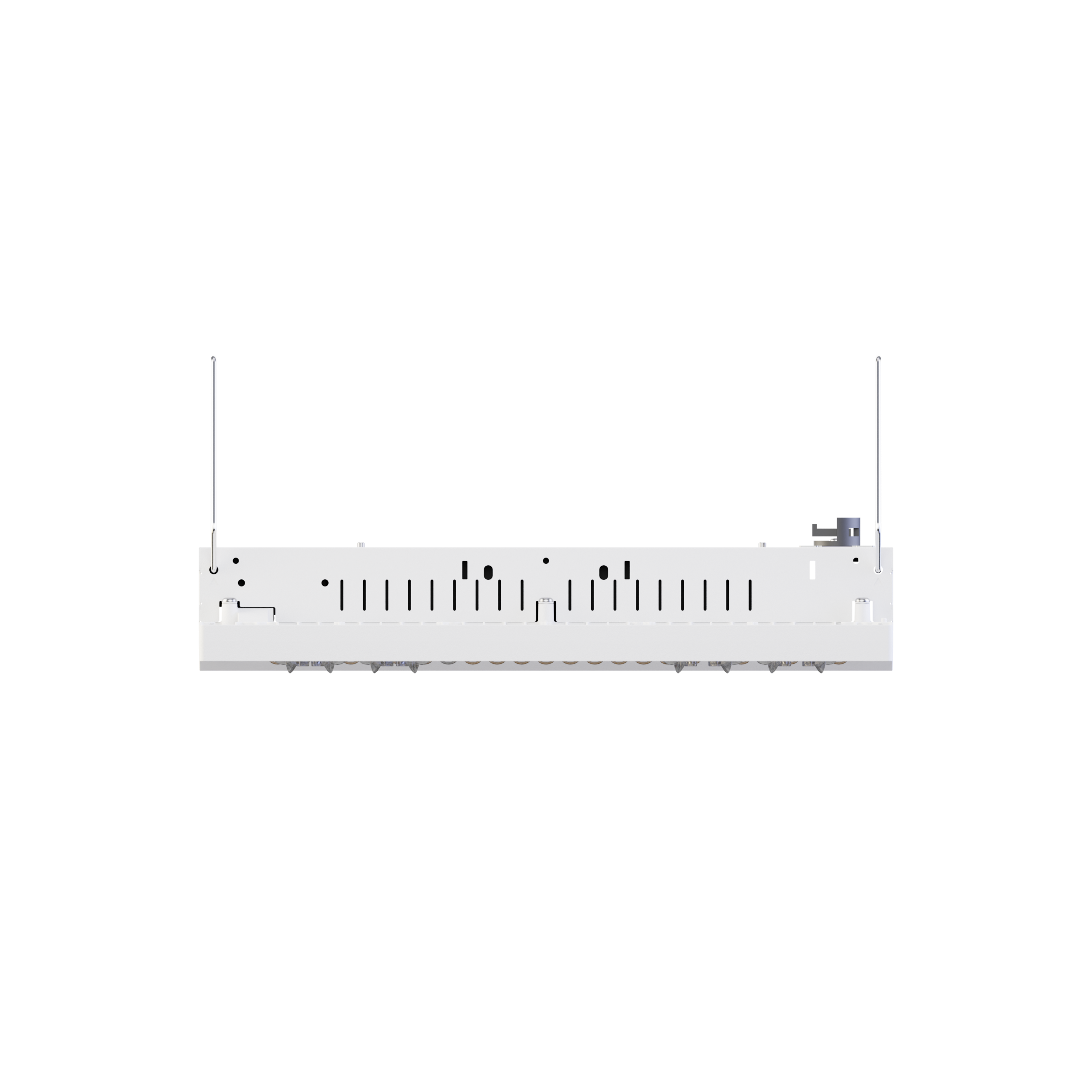

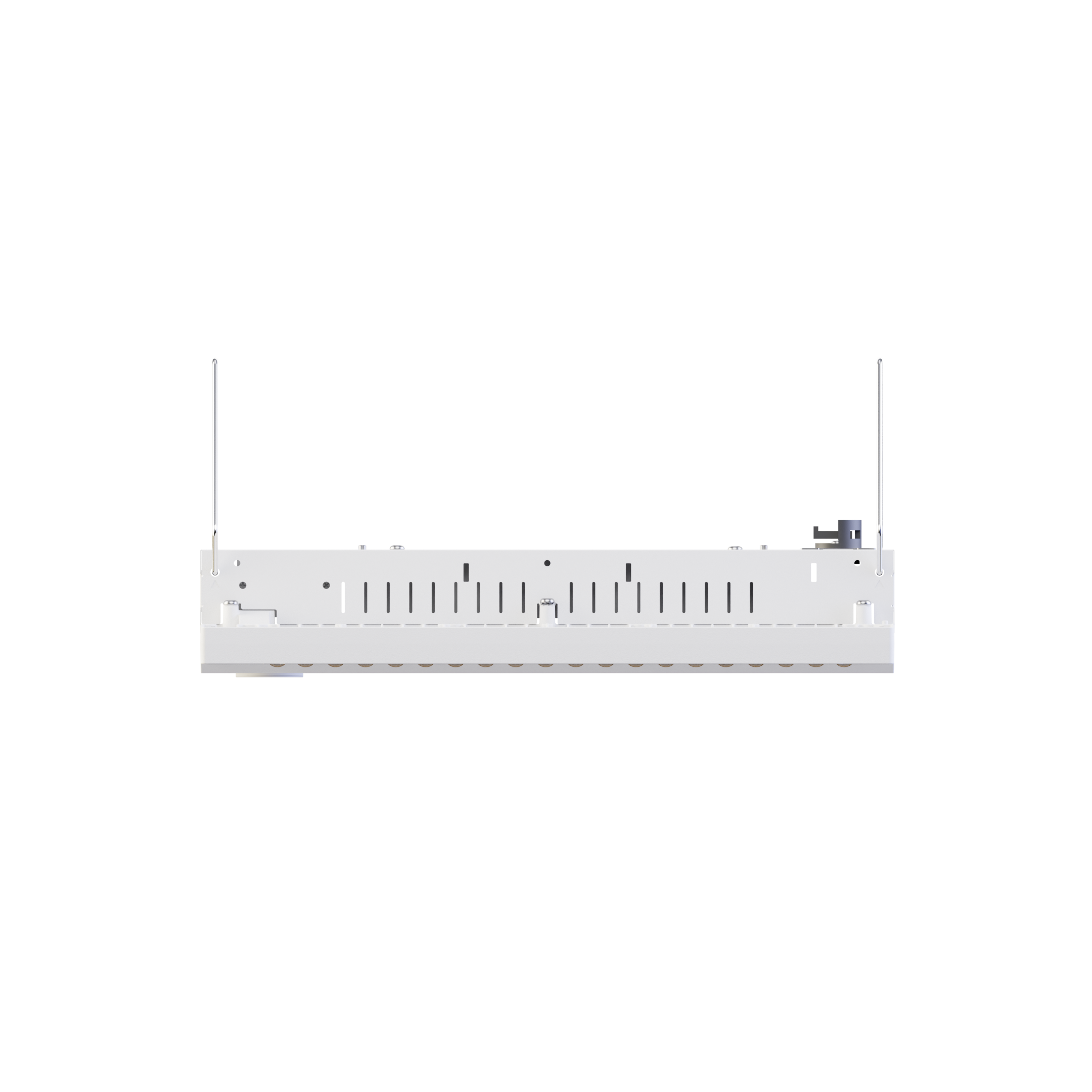

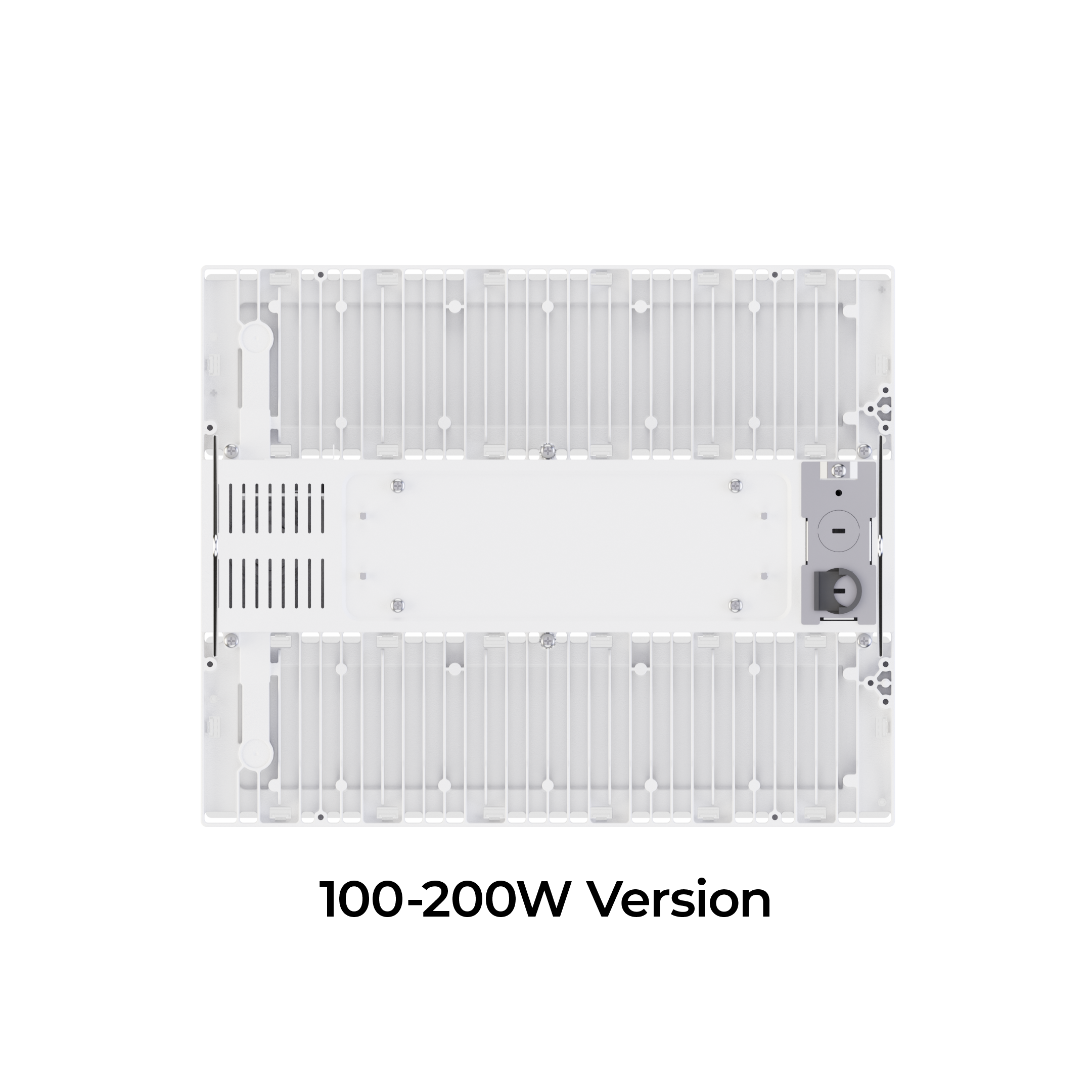

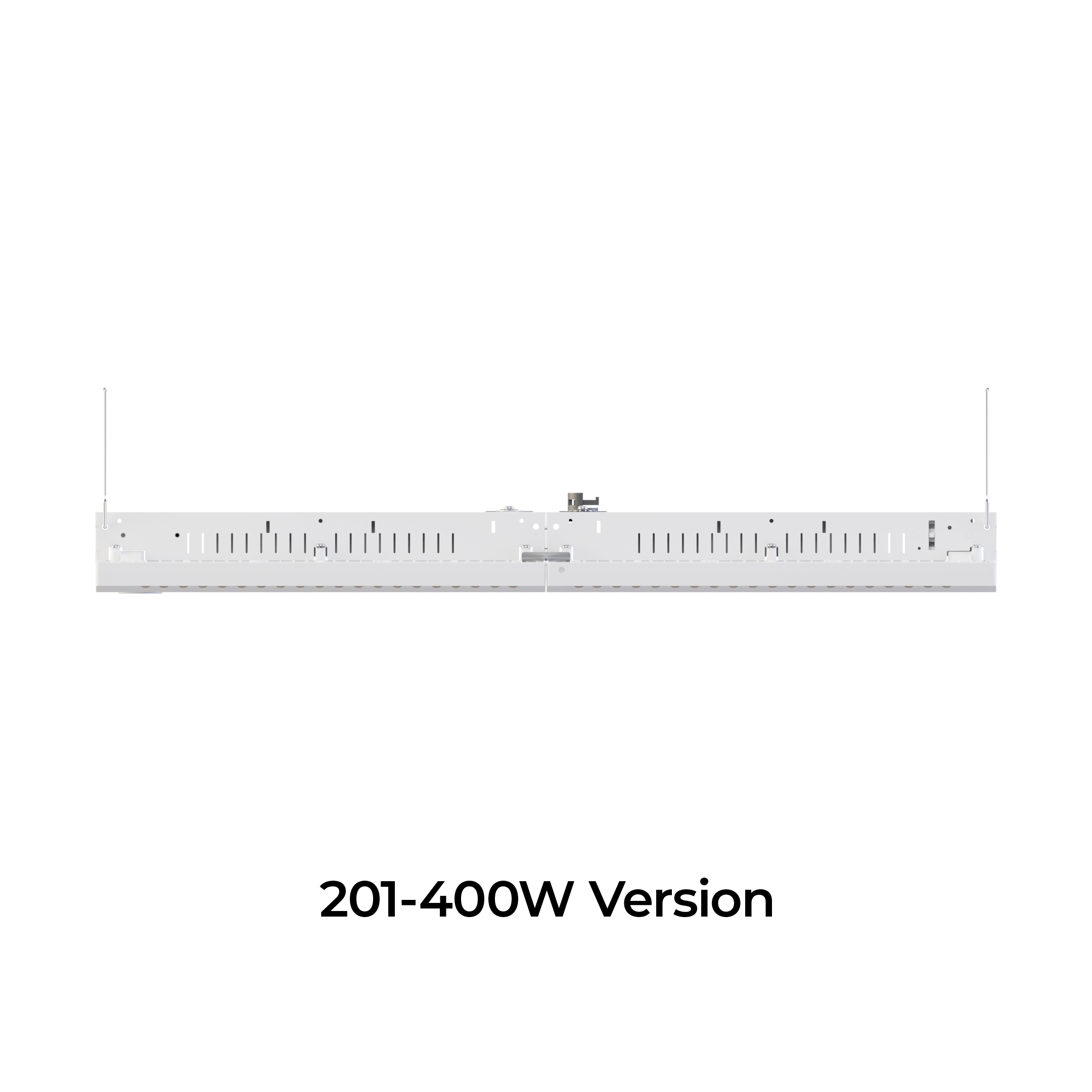

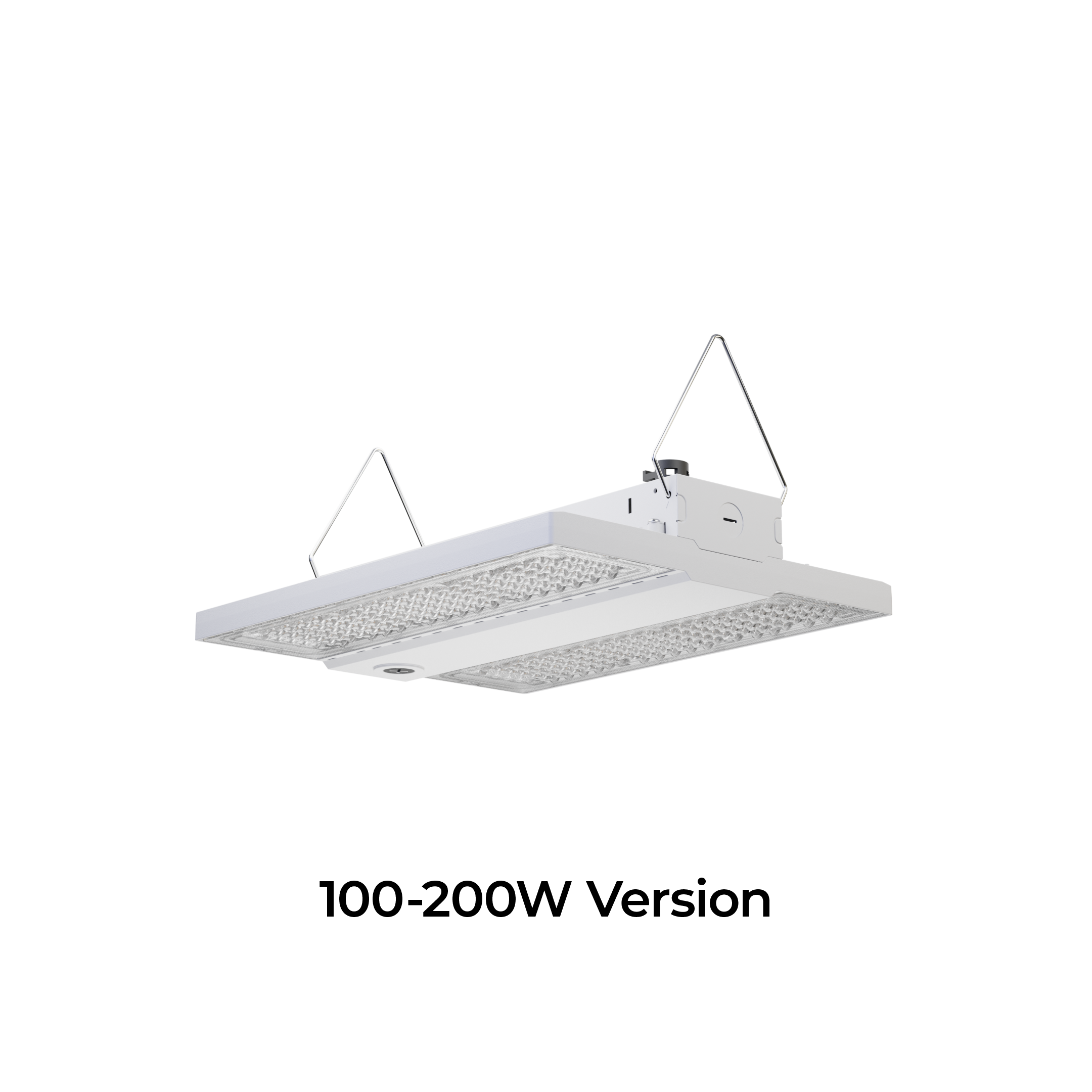

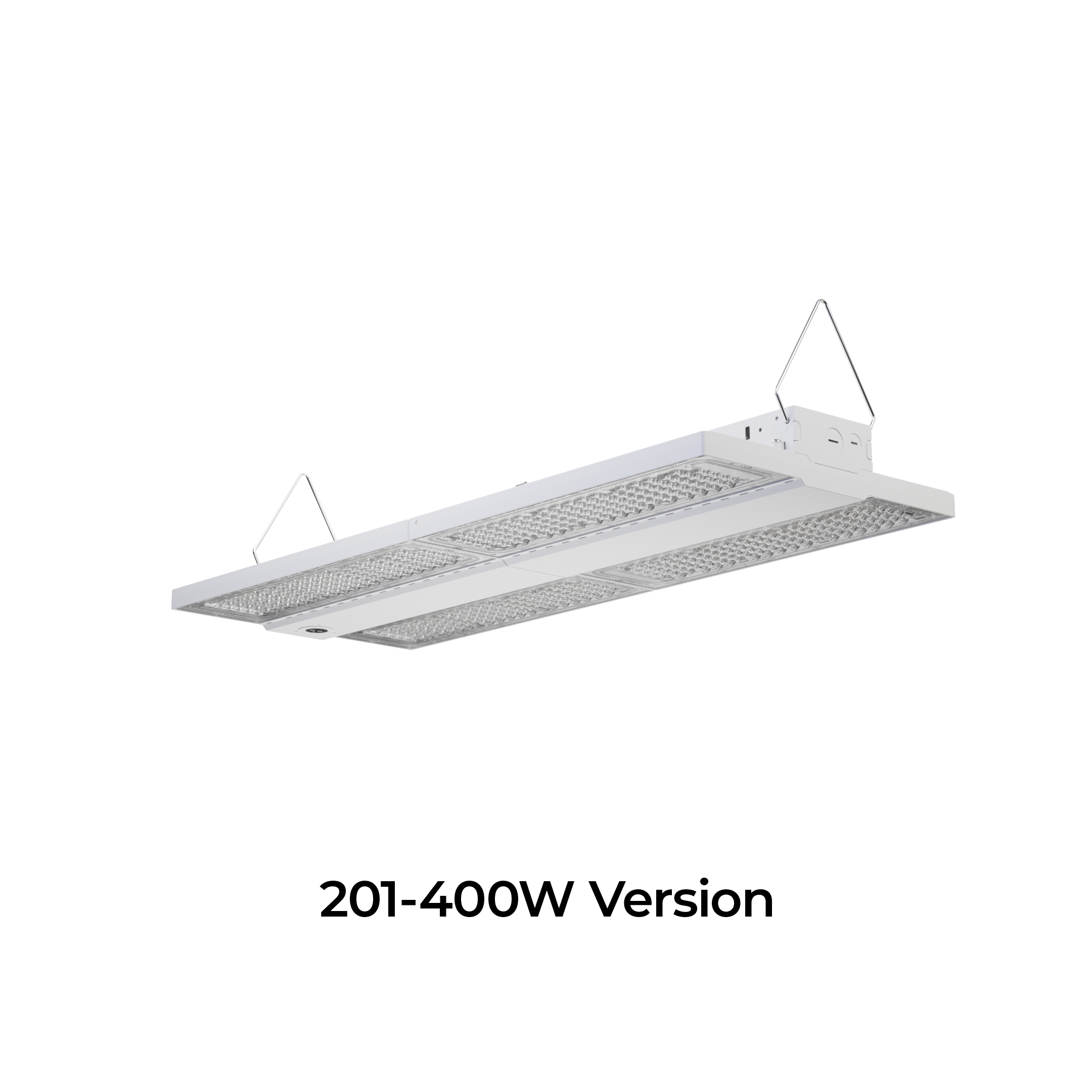

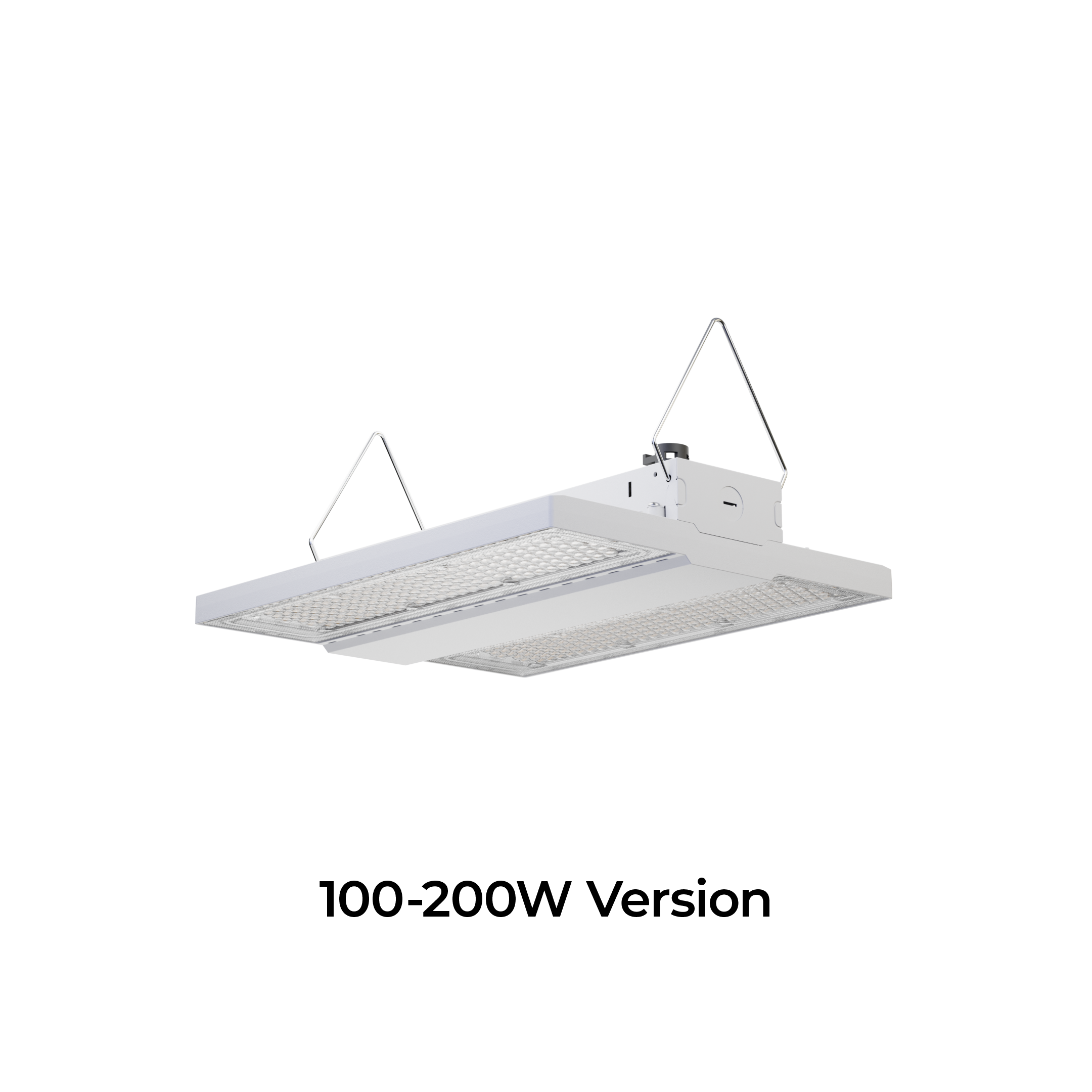

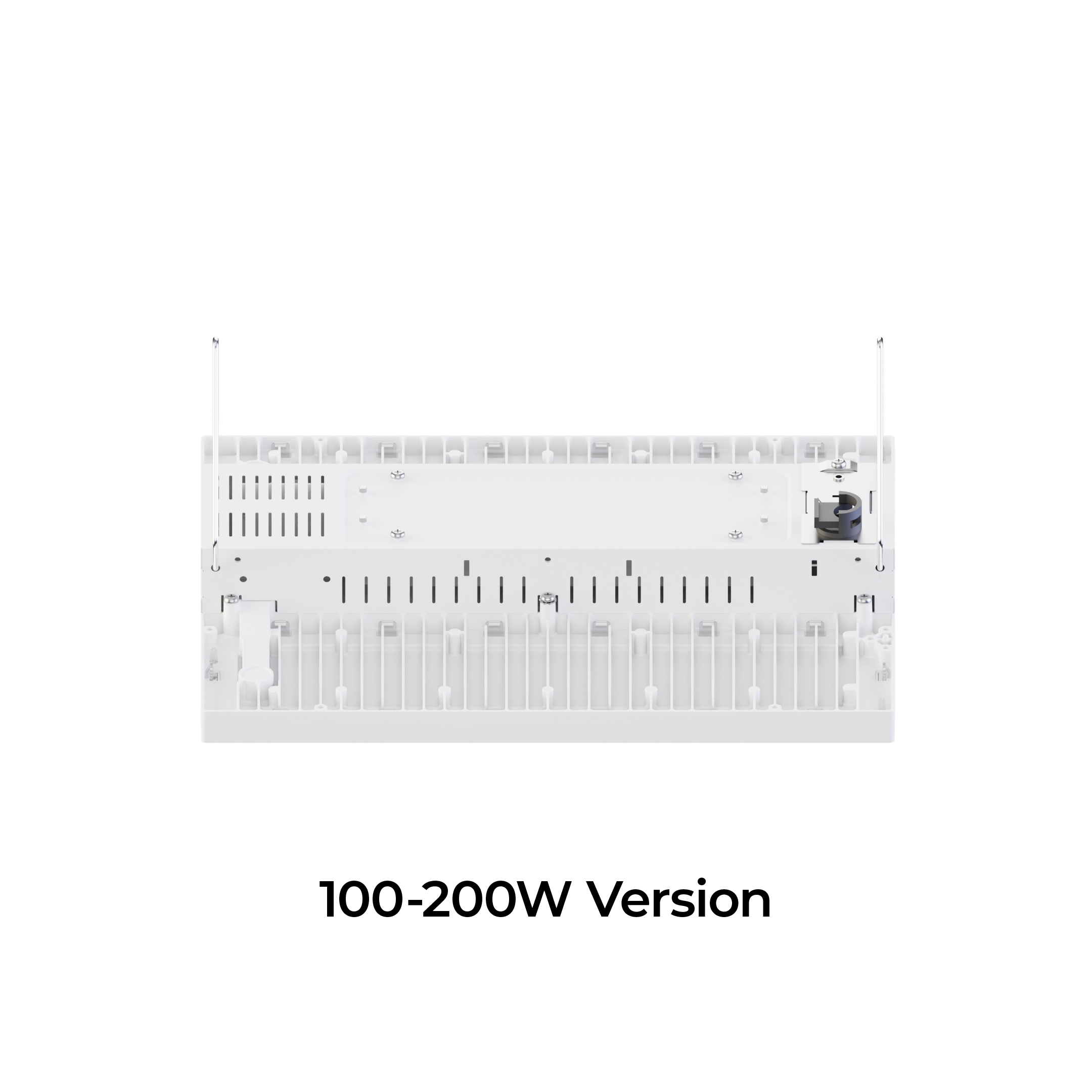

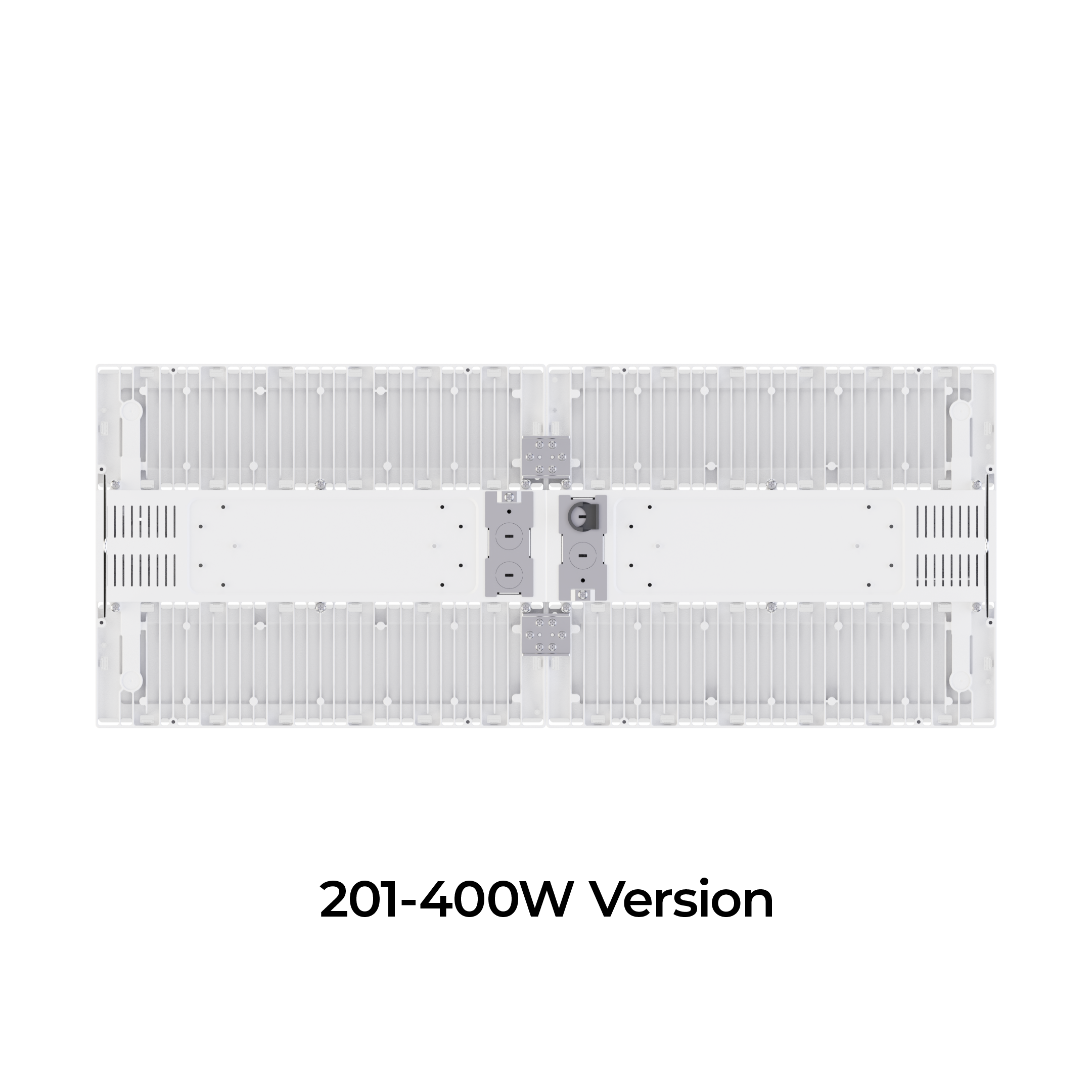

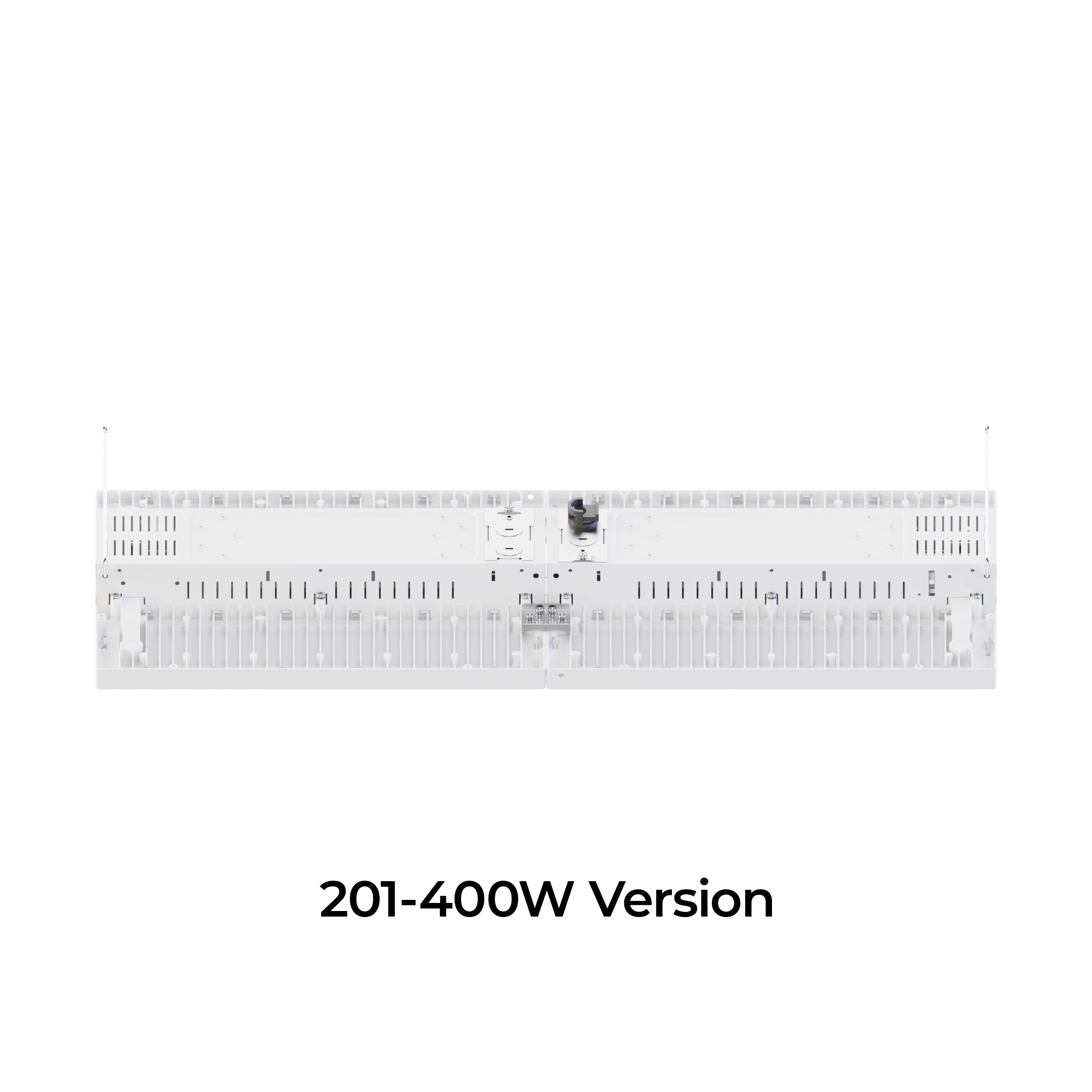

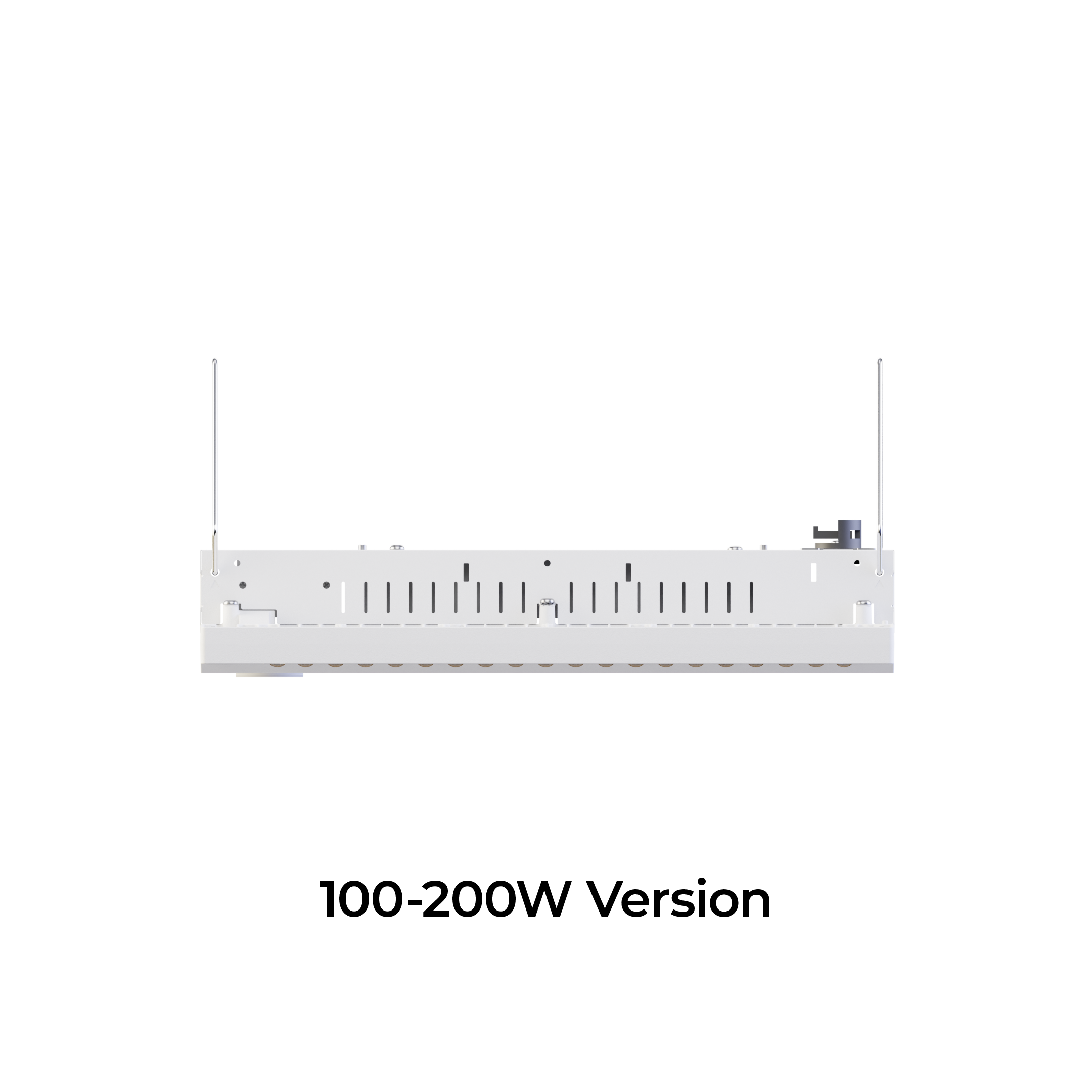

LA1 High Bay: Linear Distribution

Up to 50% Less Energy and 50% fewer fixtures

Applications

High Racks, Aisle
Corridors

General

The Filamento aisle lighter’s exceptional optical distribution enables upto:

50% energy saving at same spacing
50% energy saving & 50% fewer fixture at wider spacing

Features

17,226 to 32,604 Lumens
- 5 selectable power levels
100-277 VAC
80 CRI Standard
4000K or 5000K CCT
UGR < 26
Wireless and non-wireless control options
Five Years Warranty

World Wide Certifications

UL, DLC

Control Options

Wireless Control:
- Occupancy and Daylight - Casambi
- Occupancy and Daylight - Generic
Dims to 10% then to off

Mechanical & Accessories

4.9 lbs / 2.24 kg
Order separately: Power cord, aircraft cable or safety cable

Emergency Battery Option

40W

Lumen Maintenance

Hours
0	30,000	45,000	60,000	100,000	>102,000
100%	95%	92%	90%	84%	70%

Electrical

VS: 100-277 VAC, 50-60Hz
<1% Flicker
PF > 0.9, THD<20%
Surge: 6 kV (L-N), 10kV (L-G, N-G)

Amps @ Line Voltage (VAC)
	100V	120V	220V	240V	277V
100W	1.00A	0.83A	0.45A	0.42A	0.36A
118W	1.18A	0.98A	0.54A	0.49A	0.43A
140W	1.40A	1.17A	0.64A	0.58A	0.51A
167W	1.67A	1.39A	0.76A	0.70A	0.60A
200W	2.00A	1.67A	0.91A	0.83A	0.72A

CRI	Power	4000K	5000K
80	100W	17,226	17,226
	118W	20,100	20,100
	140W	23,508	23,508
	167W	27,602	27,602
	200W	32,604	32,604

LA1 Spec Sheet (UL/ULC )

LA1 Installation Guide (All Regions )

LA1 Linear High Bay Application Introduction (All Regions )

P/N	Base	Power	CRI	CCT	Lumens	Termination	Control Module	IES	Spec
	FIX	100-200W	80	5000K	17,226-32,604	No Power Cable	3 Pin Connector
	FIX	100-200W	80	4000K	17,226-32,604	No Power Cable	3 Pin Connector
	FIX	100W	80	4000K	17,226	No Power Cable	3 Pin Connector
	FIX	100W	80	5000K	17,226	No Power Cable	3 Pin Connector
	FIX	118W	80	4000K	20,100	No Power Cable	3 Pin Connector
	FIX	118W	80	5000K	20,100	No Power Cable	3 Pin Connector
	FIX	140W	80	5000K	23,508	No Power Cable	3 Pin Connector
	FIX	140W	80	4000K	23,508	No Power Cable	3 Pin Connector
	FIX	167W	80	5000K	27,602	No Power Cable	3 Pin Connector
	FIX	167W	80	4000K	27,602	No Power Cable	3 Pin Connector
	FIX	200W	80	4000K	32,604	No Power Cable	3 Pin Connector
	FIX	200W	80	5000K	32,604	No Power Cable	3 Pin Connector
	FIX	100-200W	80	4000K	7,408	No Power Cable	3 Pin Connector
	FIX	100-200W	80	5000K	7,408	No Power Cable	3 Pin Connector
