LS1 High Bay

Up to 30% energy saving over other LEDs

Applications

Warehousing
Manufacturing
High ceiling open space

General

This compact higher efficiency LED Fixture enables up 30% over other LED fixtures. Ideal for open space areas.

Features

19,263 to 35,145 Lumens
Option for 5 selectable power levels:
- 100W, 118W, 140W, 167W, 200W
- 201W, 236W, 280W, 334W, 400W
100-277 VAC or 277-480 VAC
80 CRI Standard
4000K or 5000K CCT
Wireless and non-wireless control options
Five Year Warranty

World Wide Certifications

UL, DLC Premium

Control Options

Wireless:
- Synapse, Silvair, GEBC
Dims to 10% then to off

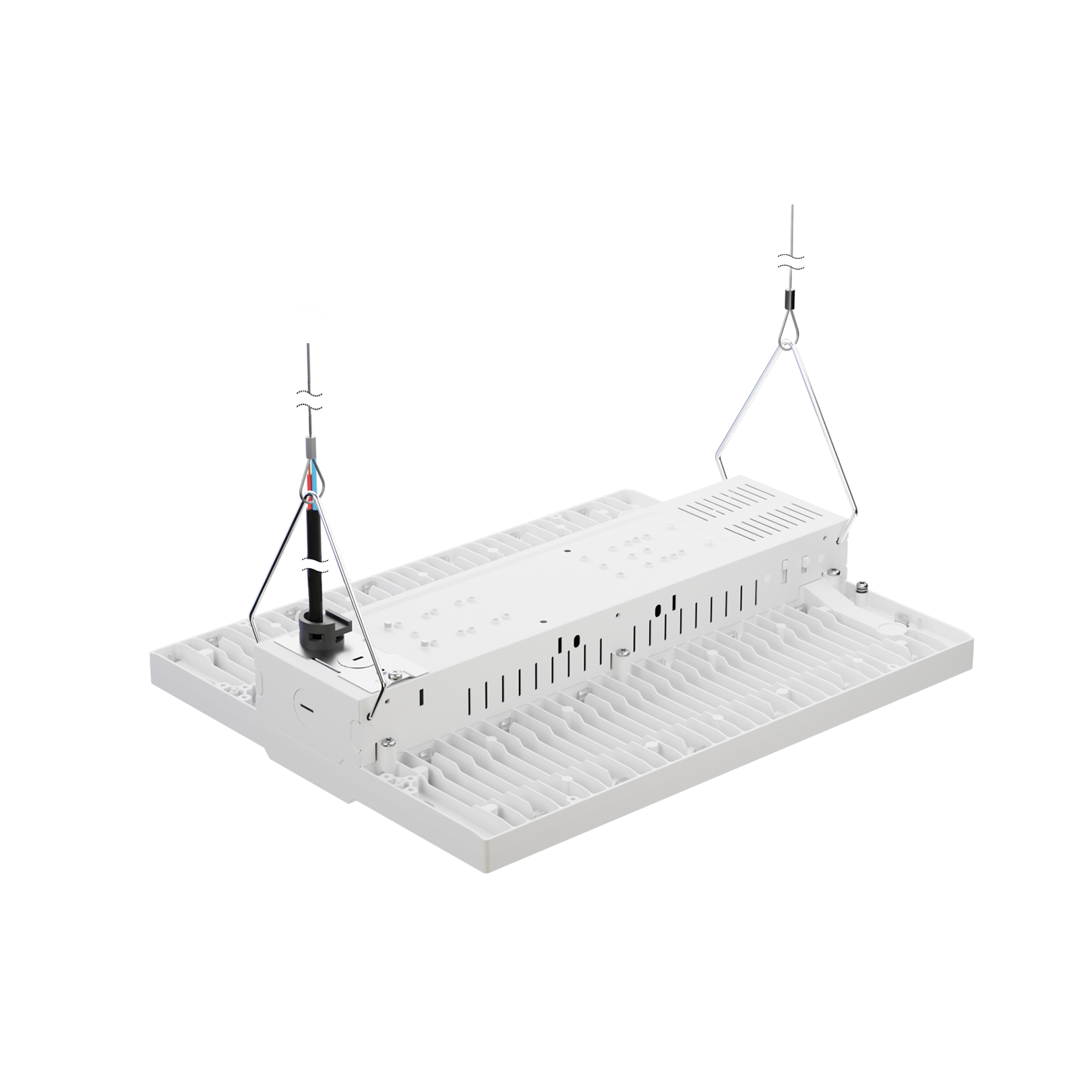

Mechanical & Accessories

100-200W: 4.9 lbs / 2.24 kg
201-400W: 9.8 lbs / 4.48 kg
Available separately: power cord, aircraft cable or safety cable

Lumen Maintenance

Hours
0	30,000	45,000	60,000	100,000	>108,000
100%	95%	92%	90%	84%	70%

Electrical

VS: 100-277 VAC, 50-60Hz
<1% Flicker
PF > 0.9, THD<20%
Surge: 6 kV (L-N), 10kV (L-G, N-G)

Amps @ Line Voltage (VAC)
VS
	100V	120V	220V	240V	277V
100W	1.00A	0.83A	0.45A	0.42A	0.36A
118W	1.18A	0.98A	0.54A	0.49A	0.43A
140W	1.40A	1.17A	0.64A	0.58A	0.51A
167W	1.67A	1.39A	0.76A	0.70A	0.60A
200W	2.00A	1.67A	0.91A	0.83A	0.72A
201W	2.01A	1.68A	0.91A	0.84A	0.73A
236W	2.36A	1.97A	1.07A	0.98A	0.85A
280W	2.80A	2.33A	1.27A	1.17A	1.01A
334W	3.34A	2.78A	1.52A	1.39A	1.21A
400W	4.00A	3.33A	1.82A	1.67A	1.44A

Amps @ Line Voltage (VAC)
V4
	347V	480V
100W	0.29A	0.21A
118W	0.34A	0.25A
140W	0.40A	0.29A
167W	0.48A	0.35A
200W	0.58A	0.42A
201W	0.58A	0.42A
236W	0.68A	0.49A
280W	0.81A	0.58A
334W	0.96A	0.70A
400W	1.15A	0.83A

CRI	Power	4000K	5000K
80	100W	19,263	19,263
	118W	22,671	22,671
	140W	26,192	26,192
	167W	30,307	30,307
	200W	35,145	35,145

LS1 Installation Guide (All Regions )

LS1 Spec Sheet (UL/ULC )

P/N	Base	Power	CRI	CCT	Lumens	Termination	Control Module	IES	Spec
	FIX	100-200W	80	5000K	19,263-35,145	No Power Cable	3 Pin Connector
	FIX	100-200W	80	4000K	19,263-35,145	No Power Cable	3 Pin Connector
	FIX	100W	80	5000K	19,263	No Power Cable	3 Pin Connector
	FIX	100W	80	4000K	19,263	No Power Cable	3 Pin Connector
	FIX	118W	80	5000K	22,671	No Power Cable	3 Pin Connector
	FIX	118W	80	4000K	22,671	No Power Cable	3 Pin Connector
	FIX	140W	80	5000K	26,057	No Power Cable	3 Pin Connector
	FIX	140W	80	4000K	26,057	No Power Cable	3 Pin Connector
	FIX	167W	80	5000K	30,307	No Power Cable	3 Pin Connector
	FIX	167W	80	4000K	30,307	No Power Cable	3 Pin Connector
	FIX	200W	80	5000K	35,145	No Power Cable	3 Pin Connector
	FIX	200W	80	5000K	35,145	No Power Cable	3 Pin Connector
	FIX	100-200W	80	4000K	19,263-35,145	No Power Cable	3 Pin Connector
	FIX	100-200W	80	5000K	19,263-35,145	No Power Cable	3 Pin Connector
