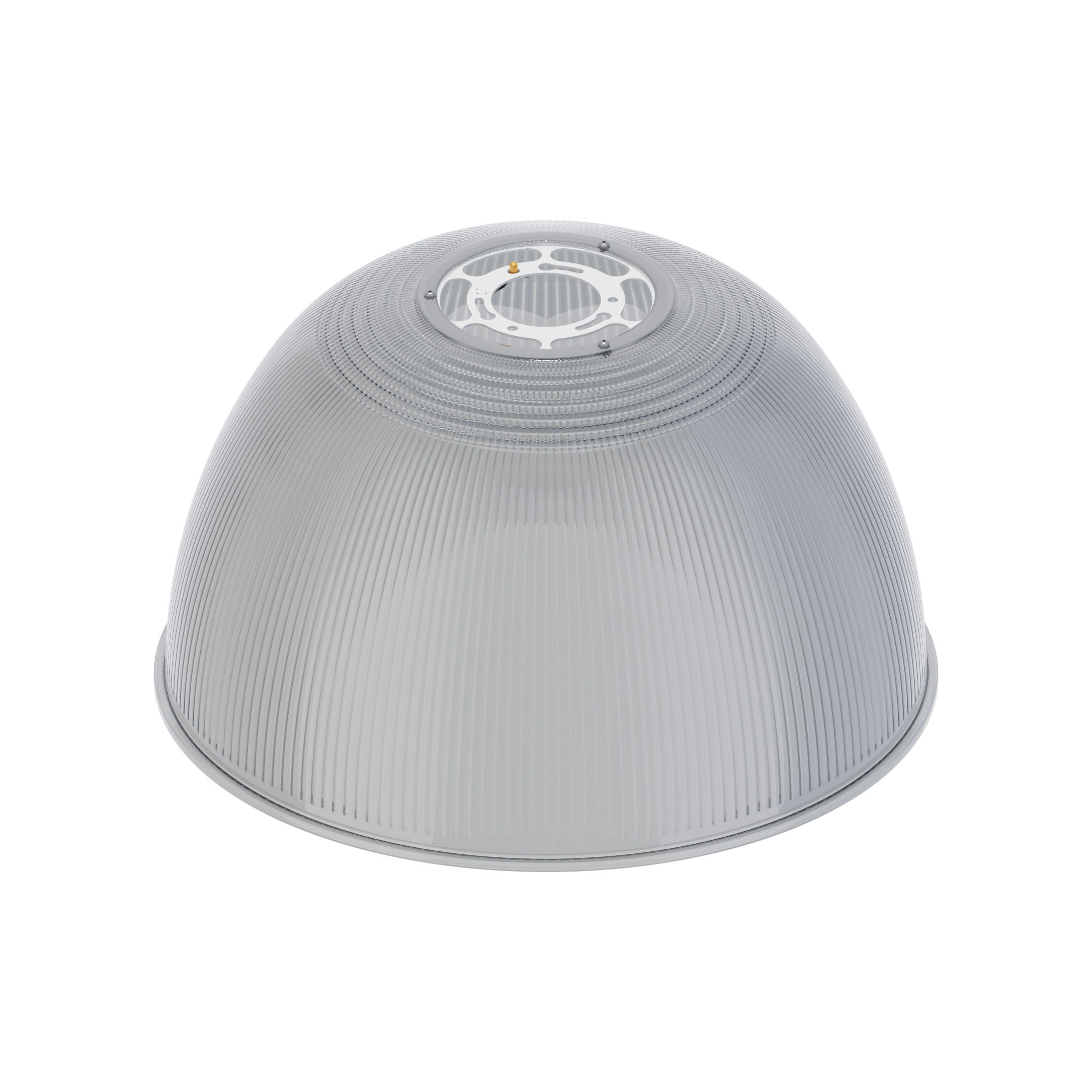

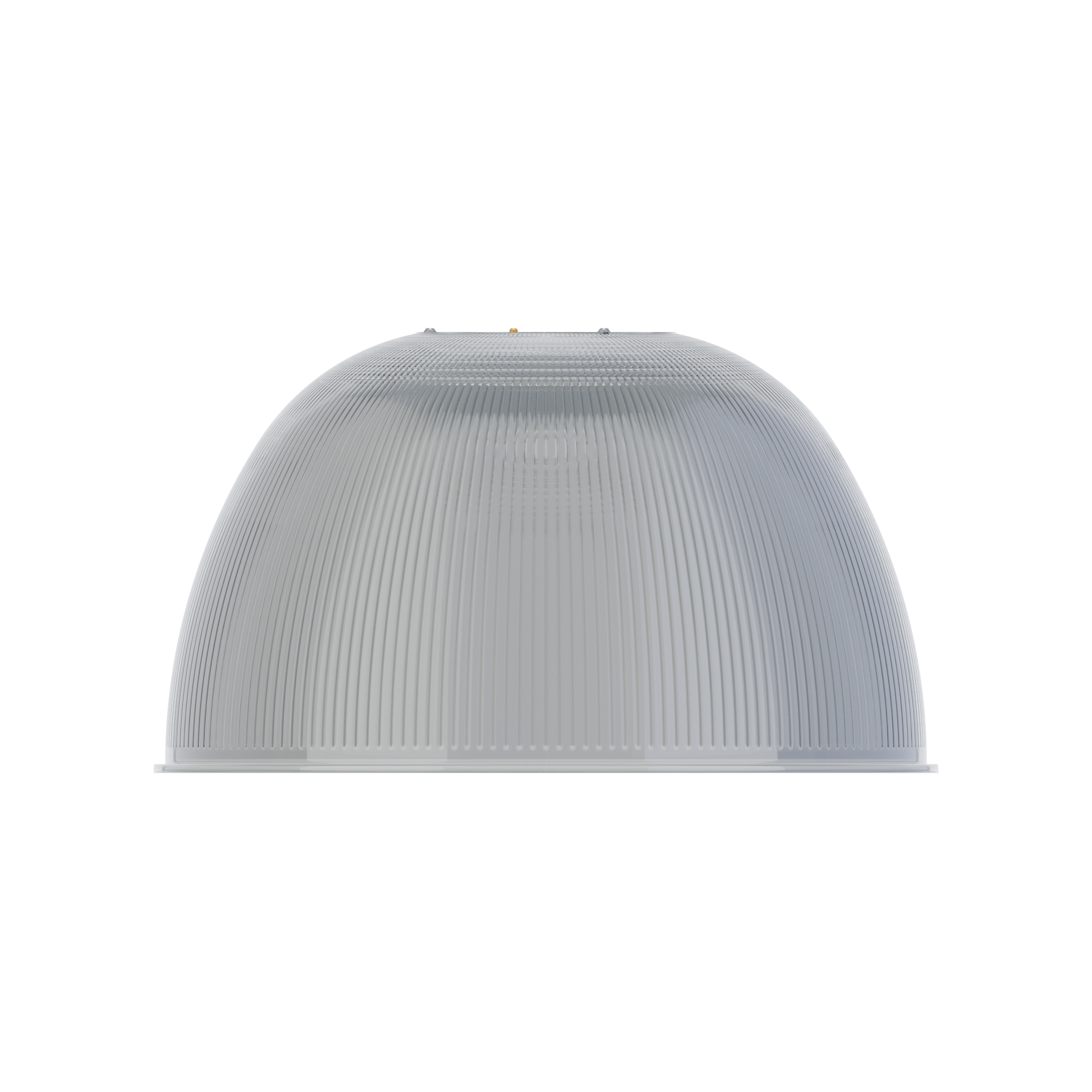

Prismatic 22"/56cm Clear Polycarbonate Reflector
22"/56cm Cosmetic Reflector
General
The optional reflector is available to create a traditional high-bay aesthetic. However, these reflectors are not needed and its installation does not substantially alter the light distribution. The Filamento lamp has integral optics that create a cutoff at 50°, eliminating glare so an external reflector is not required.
- Solid polycarbonate reflector
- Reflectors are vented to allow for airflow
- Compatible with all ADP mounting bases
- Compatible with all mogul base lamps
- Easy to install - Simply twist and lock assembly to ADP mounting bases, no tools required
- Optional diffuser, drop lens, wireguard accessories
- Matching ADP mounting bases are sold separately
Mechanical
- 1.63 kg / 3.6 lb
- Ø 22.40" (569mm) x 12.85" (326mm)
- Solid polycarbonate body
P/N | Diameter | Shape | Exterior/Interior | Spec | ||||
---|---|---|---|---|---|---|---|---|
| 22"/56cm | Prismatic Polycarbonate Bell | Clear/Clear |
-
|
|
|||
|
-
|
P/N | Diameter | Shape | Exterior/Interior | Spec | ||||
---|---|---|---|---|---|---|---|---|
| 22"/56cm | Prismatic Polycarbonate Bell | Clear/Clear |
-
|
|
|||
|
-
|
P/N | Diameter | Shape | Exterior/Interior | Spec | ||||
---|---|---|---|---|---|---|---|---|
| 22"/56cm | Prismatic Polycarbonate Bell | Clear/Clear |
-
|
|
|||
|
-
|
P/N | Diameter | Shape | Exterior/Interior | Spec | ||||
---|---|---|---|---|---|---|---|---|
| 22"/56cm | Prismatic Polycarbonate Bell | Clear/Clear |
-
|
|
|||
|
-
|
