Up to 7,000 Lumens - Prismatic Clear Polycarbonate 16” Reflector + VA6 Lamp

Transcendent Luminaire 16”/41cm Prismatic Reflector + VA6 Lamp

30W, 3,500 lumens, 118 L/W, CRI > 80
45W, 5,100 lumens, 113 L/W, CRI > 80
Over-temperature protection dims to guarantee reliability
- 65°C/150°F full light output for 30W
- 45°C/113°F full light output for 45W
Enclosed fixture rated
UL listed for BOTH Ballast Bypass and Ballast Compatible driver options
E39, E40, E26, E27 lamp base options
Designed for enclosed fixtures
Integral optics with no glare and 35% more lumens on target
No fan
Five years or 50,000 hours warranty
IP52 / UL Wet Listed
IP65 optional - special order
EX39 base, vertical orientation only
0.60 kg / 1.32 lb
Beautiful anodized solid aluminum body

VL: Line Voltage 100-277 VAC, 50-60 Hz
VH: Hybrid: Ballast Compatible and Line Voltage 100-277 VAC
< 1% flicker
6 kV surge protection, PF>0.9/THD<20%

	Amps @ Line Voltage (VAC)
	100V	110V	120V	220V	240V	277V
30W	0.30A	0.27A	0.25A	0.14A	0.13A	0.11A
45W	0.45A	0.41A	0.38A	0.20A	0.19A	0.16A

50° glare cutoff with UGR (ave) < 18
Field-installed optical accessories without the need for tools (Options include uplights and diffusers)

CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	30W	3,800	4,237	4,485	4,684	4,849	4,849
80	45W	5,497	6,129	6,488	6,775	7,014	7,014
90	30W	3,131	3,490	3,695	3,858	3,994	3,994
90	45W	4,528	5,049	5,344	5,581	5,778	5,778

The Hybrid series is compatible with HID magnetic ballast between 175-600W. Such ballast types include probe start, pulse start, CWA, or reactive. The table below shows compatible ballast that have been tested. Input to ballast may be up to 480V. Optical distribution and lumen output are constant regardless of Ballast type or wattage. Ballast operation is not compatible with dimming or controls.

	HID Ballast Compatibility
Type	45-70W	100W	150W	175W	200W	250W
Metal Halide	M98 M110 M143	M90	-	M57 M137 M152 MH175	-	M138 M153 MH250
HPS	NG50 NG70	NG100	NG150	-	S66	S50 NG250
MV	H175	-	-	H175	-	-

Name	Media
Transcendent 16" Prismatic + VA6 Lamp Spec Sheet (UL/ULC USA/Canada , DLC USA , CB/CE Europe and Rest of the World , PSE Japan , CCC China , SAA Australia )
ADP Mounting Base to Reflector Installation Guide (All Regions)
Transcendent Prismatic/Aluminum Bell Luminaire Installation Video (All Regions)

Configurator

Complete Assembly

Transcendent Luminaire 16”/41cm Prismatic Reflector + VA6 Lamp

Part Number

TU -PR16-CL1PC1 -A020-WH1-WIRE -000 +VA6-E26-030-8-27-VH-AN-B90-000-000

Bill of Material

Category	Part Number	Product

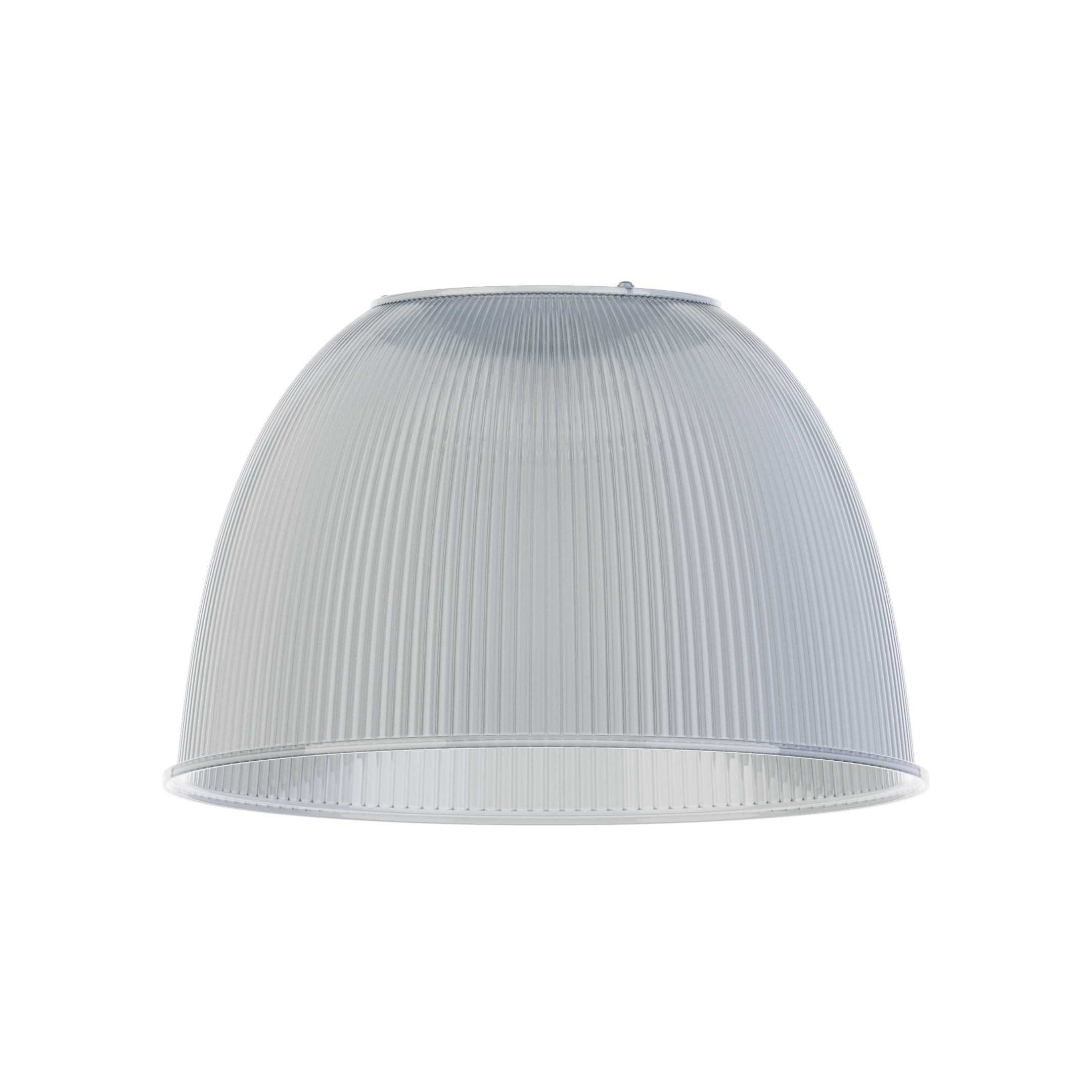

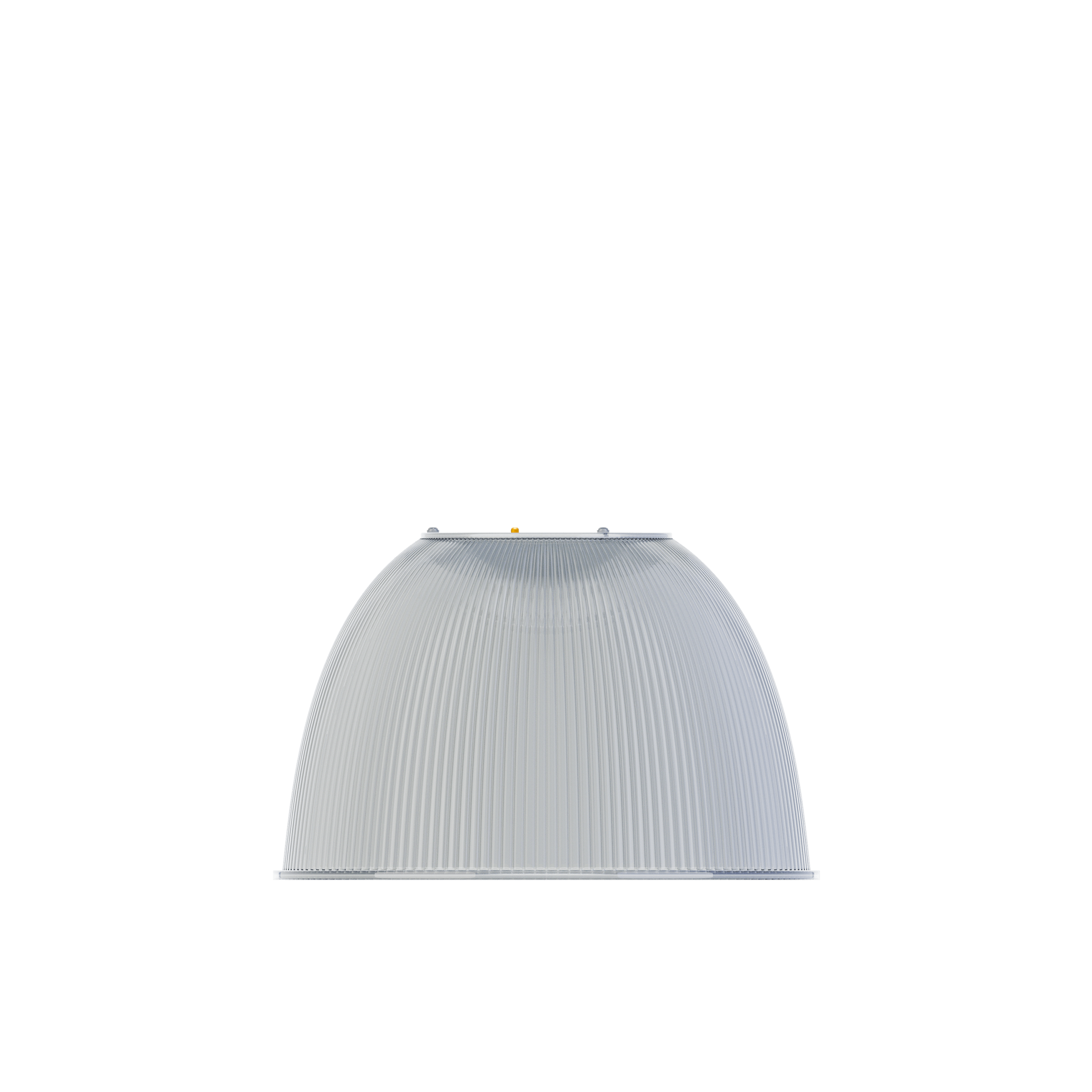

Reflector	RFL-PR16-CL1PC1	Prismatic 16"/41cm Clear Polycarbonate Reflector	Details
Mounting Base	ADP-E39-AC2-20-WIRE-0300-000-000-FL	ADP Base Aircraft Cable Mount - White	Edit
Reflector Accessory	000	No Reflector Accessory	Details
Lamp/Retrofit	VA6-E26-030-8-27-VH-AN-B90-000-000	VA6 Lamp Medium Base	Edit
Lamp Accessory	000	No Lamp Accessory	Edit
Control Cap	CAP-A75-000-WH-FL-FL	Blank Cap - No Controls	Edit
