Up to 26,000 Lumens - Cosmetic Cylinder 13” Reflector + VA6 Lamp

Transcendent Luminaire 13”/33cm Cylinder Reflector + VA6 Lamp

Array
(
    [0] => Array
        (
            [id] => 420
            [region_name] => All Regions
            [region_id] => 16
            [resources_id] => 2
            [media_type] => pdf
            [short_url] => https://www.filamento.com/spec_tx-cy13_va6
            [file_name] => SPEC_Tx-CY13_VA6_240515.pdf
            [name] => Transcendent 13" Cylinder + VA6 Lamp Spec Sheet
            [resource_name] => Spec Sheets
            [resource_slug] => SPEC-SHEETS
        )

    [1] => Array
        (
            [id] => 79
            [region_name] => All Regions
            [region_id] => 16
            [resources_id] => 1
            [media_type] => pdf
            [short_url] => https://www.filamento.com/INST_ADP-Reflector
            [file_name] => INST_ADP-Reflector_240301.pdf
            [name] => ADP Mounting Base to Reflector Installation Guide
            [resource_name] => Installation Guides
            [resource_slug] => INSTALLATION-GUIDES
        )

    [2] => Array
        (
            [id] => 30
            [region_name] => All Regions
            [region_id] => 16
            [resources_id] => 4
            [media_type] => mp4
            [short_url] => https://www.filamento.com/INSV_TU-CY13-xxxxxx-xxxx-xxx-xxxx-xxx
            [file_name] => INSV_TU-CY13-xxxxxx-xxxx-xxx-xxxx-xxx_230906.mp4
            [name] => Transcendent Cylinder 13" Luminaire Installation Video
            [resource_name] => Videos
            [resource_slug] => VIDEOS
        )

)

General

Up to 7,000 Lumens, 156 L/W
Certified for Magnetic HID Ballast & 100-277 VAC
Integrated Patented Optic provides:
- Low Glare UGR<18
- 1.3x cd/lumen higher efficiency over no optic
80 CRI Standard, High CRI optional
Wireless control options
Temperature protection with full output:
- T(Ambient) = 65ºC/150F for 30W
- T(Ambient) = 45ºC/115F for 45W
Socket extender option sold separately
Enclosed fixture and IC rated for 30W
Five Year or 50,000 Hour warranty

Control Options

Wireless Options:
- Synpase, Casambi, Avi-On
Non Wiress Options:
- Occupancy & Daylight, Manual Power Set
Dims to 10% then to off
Controls not compatible with ballast operation

World Wide Qualifications

UL/ULC, CE/CB, PSE, CCC, SAA
DLC Standard
IP52 / UL damp listed standard
IP65 / UL wet optional

Mechanical

Ø 12.41" (315mm) x 15.26" (388mm)

Electrical

VL: Line Voltage 100-277 VAC, 50-60 Hz
< 1% flicker
6 kV surge protection, PF>0.9/THD<20%

Amps @ Line Voltage (VAC)
	100V	110V	120V	220V	240V	277V
30W	0.30A	0.27A	0.25A	0.14A	0.13A	0.11A
45W	0.45A	0.41A	0.38A	0.20A	0.19A	0.16A

50° glare cutoff with UGR (ave) < 18
Field-installed optical accessories without the need for tools (Options include uplights and diffusers)

No Optical Accessories

CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	30W	3,297	3,677	3,892	4,064	4,207	4,207
80	45W	4,770	5,318	5,629	5,879	6,086	6,086
90	30W	2,716	3,029	3,206	3,348	3,466	3,466
90	45W	3,929	4,381	4,637	4,843	5,013	5,013

Name	Media
Transcendent 13" Cylinder + VA6 Lamp Spec Sheet (All Regions )
ADP Mounting Base to Reflector Installation Guide (All Regions )
Transcendent Cylinder 13" Luminaire Installation Video (All Regions )

Configurator

Complete Assembly

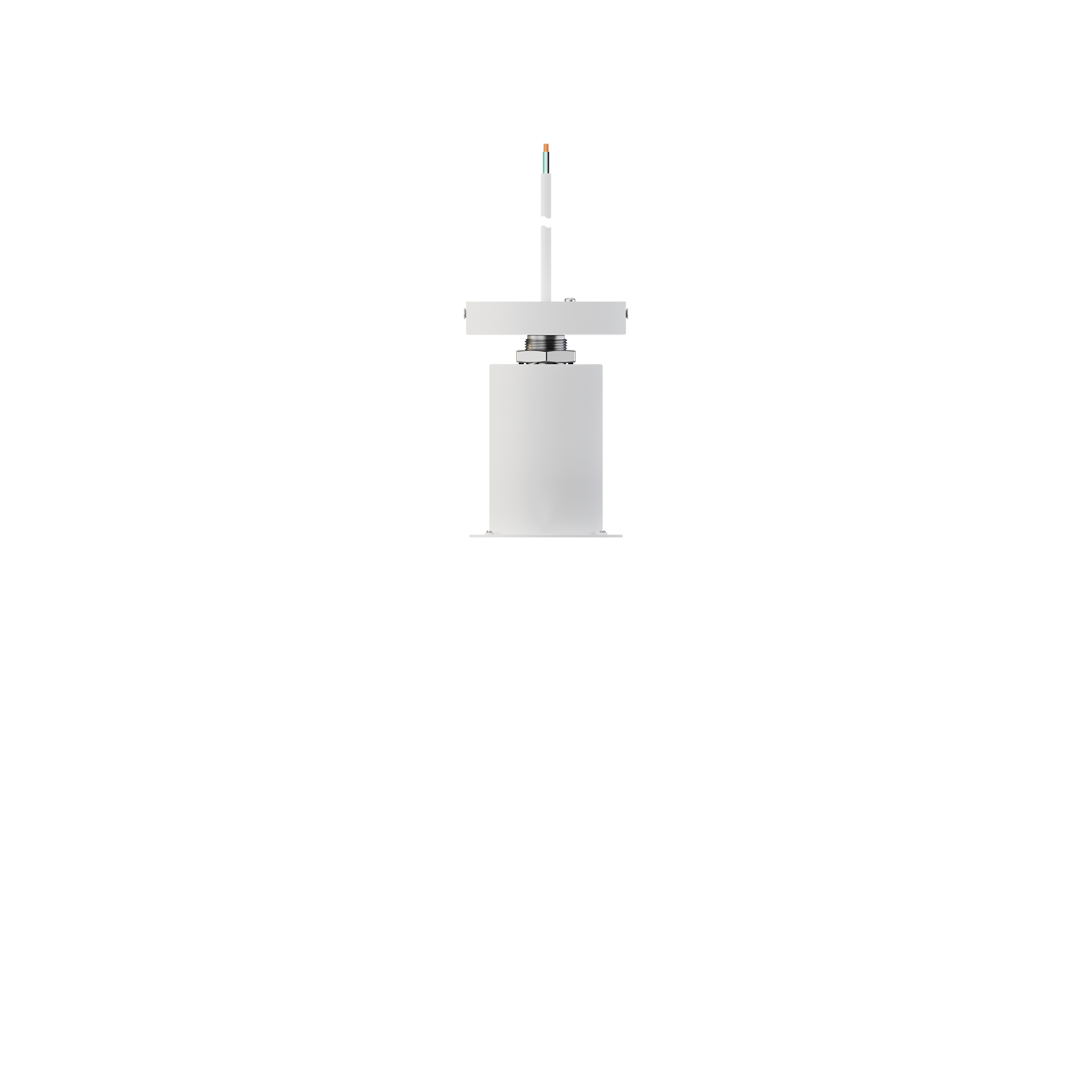

Transcendent Luminaire 13”/33cm Cylinder Reflector + VA6 Lamp

Part Number

TU -CY13-WH2BK2 -J020-WH1-WIRE +VA6-E39-030-8-30-VH-AN-B90-000-000

Bill of Material

Category	Product
Reflector	Cylinder 13"/33mm White/Black Reflector	Edit Link
Mounting Base	ADP Base Surface Mount - White	Edit Link
Lamp/Fixture	VA6 Lamp Mogul Base	Edit Link
Control Cap	Blank Cap - No Controls	Edit Link
