Up to 7,000 Lumens - Cosmetic Aluminum Bell 16” Reflector + VA6 Lamp

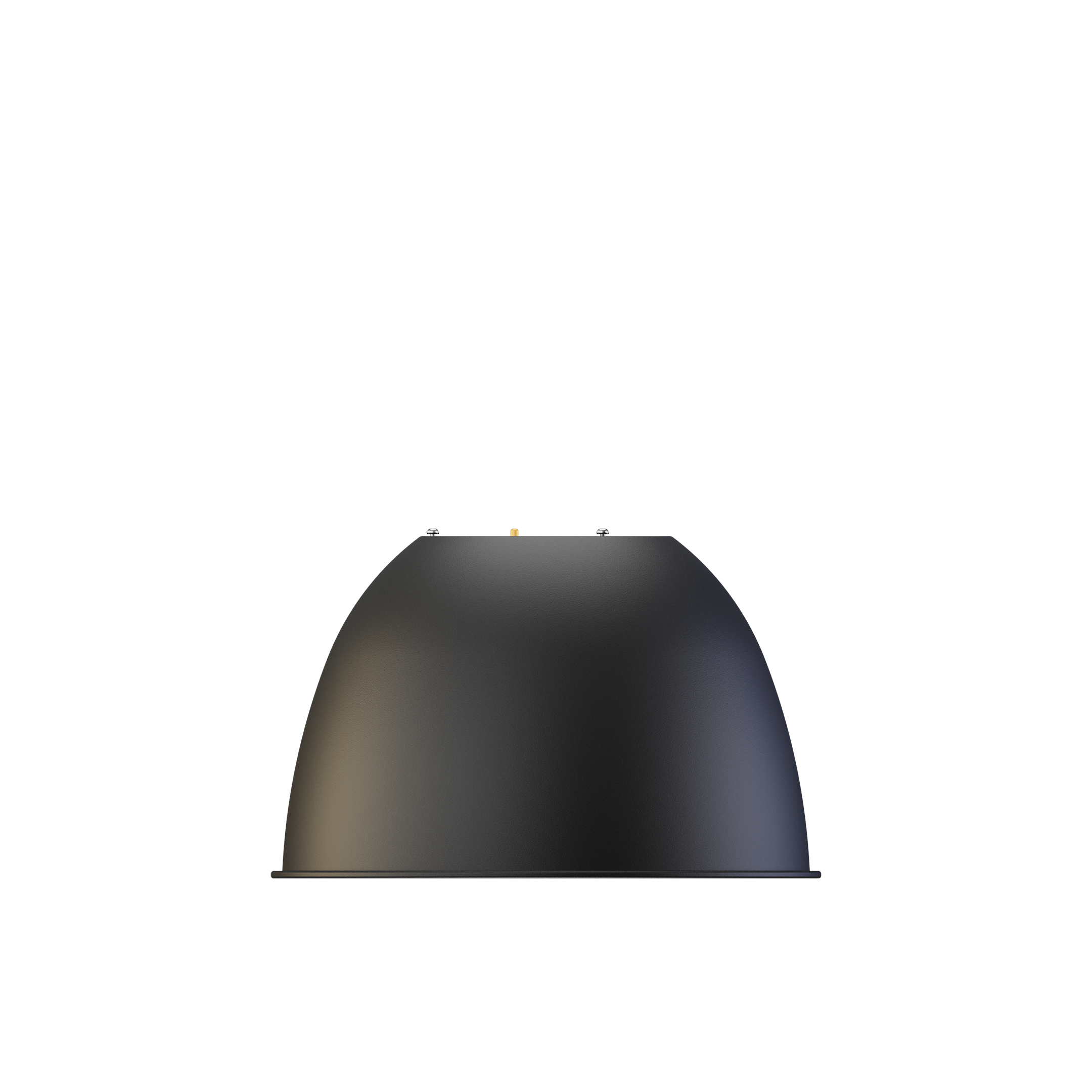

Transcendent Luminaire 16”/41cm Aluminum Reflector - Black/White + VA6 Lamp
- Up to 7,000 Lumens, 156 L/W
- Certified for Magnetic HID Ballast & 100-277 VAC
- Integrated Patented Optic provides:
- Low Glare UGR<18
- 1.3x cd/lumen higher efficiency over no optic
- 80 CRI Standard, High CRI optional
- Wireless control options
- Temperature protection with full output:
- T(Ambient) = 65ºC/150F for 30W
- T(Ambient) = 45ºC/115F for 45W
- Socket extender option sold separately
- Enclosed fixture and IC rated for 30W
- Five Year or 50,000 Hour warranty
- Wireless Options:
- Synpase, Casambi, Avi-On
- Non Wiress Options:
- Occupancy & Daylight, Manual Power Set
- Dims to 10% then to off
- VL: Line Voltage 100-277 VAC, 50-60 Hz
- VH: Hybrid: Ballast Compatible and Line Voltage 100-277 VAC
- < 1% flicker
- 6 kV surge protection, PF>0.9/THD<20%
Amps @ Line Voltage (VAC) | ||||||
---|---|---|---|---|---|---|
100V | 110V | 120V | 220V | 240V | 277V | |
30W | 0.30A | 0.27A | 0.25A | 0.14A | 0.13A | 0.11A |
45W | 0.45A | 0.41A | 0.38A | 0.20A | 0.19A | 0.16A |
The Hybrid series is compatible with HID magnetic ballast between 175-600W. Such ballast types include probe start, pulse start, CWA, or reactive. The table below shows compatible ballast that have been tested. Input to ballast may be up to 480V. Optical distribution and lumen output are constant regardless of Ballast type or wattage. Ballast operation is not compatible with dimming or controls.
HID Ballast Compatibility | ||||||
---|---|---|---|---|---|---|
Type | 45-70W | 100W | 150W | 175W | 200W | 250W |
Metal Halide | M98 M110 M143 |
M90 |
- |
M57 M137 M152 MH175 |
- |
M138 M153 MH250 |
HPS |
NG50 |
NG100 | NG150 |
- |
S66 | S50 NG250 |
MV |
H175 |
- | - | H175 | - | - |
