General
- Up to 25,700 Lumens, 156 L/W
- Integrated Patented Optic provides:
- Low Glare UGR<18
- 1.3x cd/lumen higher efficiency over no optic
- 80 CRI Standard, High CRI optional
- Wireless control options
- Temperature protection with full output:
- T(Ambient) = 55ºC/150F for 105W
- T(Ambient) = 45ºC/115F for 150W
- T(Ambient) = 40ºC/115F for 165W
- Enclosed Fixture rated for 105W
- Five years or 50,000 hours warranty
Control Options
- Wireless Options:
- Non Wiress Options:
- Occupancy & Daylight, Manual Power Set
- Dims to 10% then to off
- Controls not compatible with ballast operation
World Wide Qualifications
- UL/ULC, CE/CB, PSE, KC, BSMI, NOM
- DLC Standard
- IP52 / UL damp listed standard
- IP65 / UL wet optional
Mechanical
- Ø 410mm (16.14”) x 394mm (15.51”)
Compatible Accessories

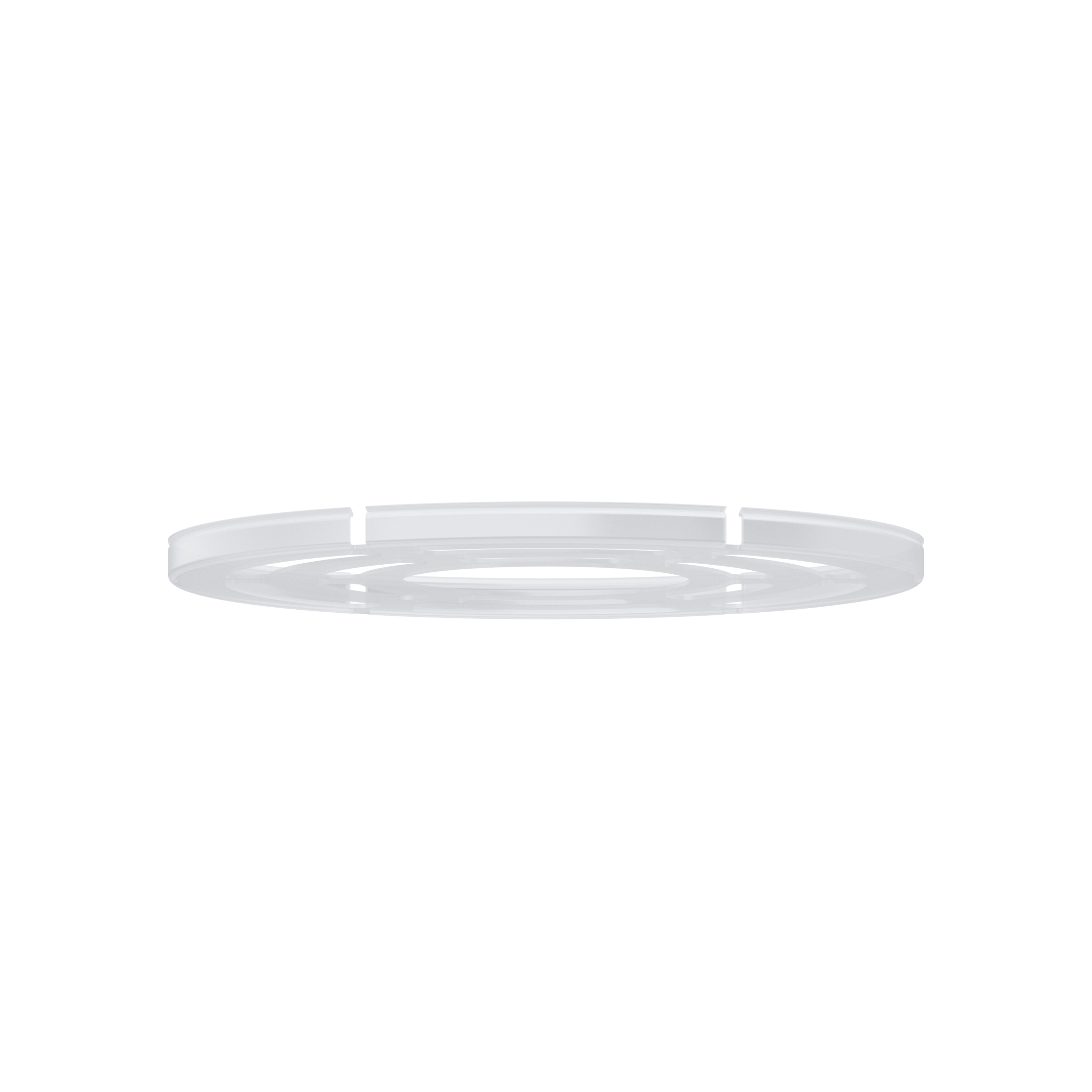

- 16” UGR Diffuser (ACC-016-UGR-000-FL)
- 16” Conical Lens (ACC-016-CNL-000-FL)
- 16” Drop Lens (ACC-016-DRL-000-FL)
- 16” Wireguard Black (ACC-016-WBK-000-FL)
Electrical
- VL: Line Voltage 100-277 VAC, 50-60 Hz
- < 1% flicker
- 6 kV surge protection, PF>0.9/THD<20%
| Amps @ Line Voltage (VAC) |
| |
100V |
110V |
120V |
220V |
240V |
277V |
| 105W |
1.05A |
0.95A |
0.88A |
0.48A |
0.44A |
0.38A |
| 150W |
1.50A |
1.36A |
1.25A |
0.68A |
0.63A |
0.54A |
| 165W |
1.65A |
1.50A |
1.38A |
0.75A |
0.69A |
0.60A |
- 50° glare cutoff with UGR (ave) < 18
- Field-installed optical accessories without the need for tools (Options include uplights and diffusers)
No Optical Accessories
| CRI |
Power |
2200K |
2700K |
3000K |
3500K |
4000K |
5000K |
| 80 |
105W |
12,841
|
14,317
|
15,155
|
15,826
|
16,384
|
16,384
|
| 150W |
17,019
|
18,976
|
20,086
|
20,975
|
21,715
|
21,715
|
| 165W |
19,783
|
22,057
|
23,348
|
24,381
|
25,241
|
25,241
|
| 90 |
105W |
10,578
|
11,794
|
12,484
|
13,037
|
13,496
|
13,496
|
| 150W |
14,020
|
15,632
|
16,546
|
17,279
|
17,888
|
17,888
|
| 165W |
16,296
|
18,170
|
19,233
|
20,084
|
20,792
|
20,792
|
