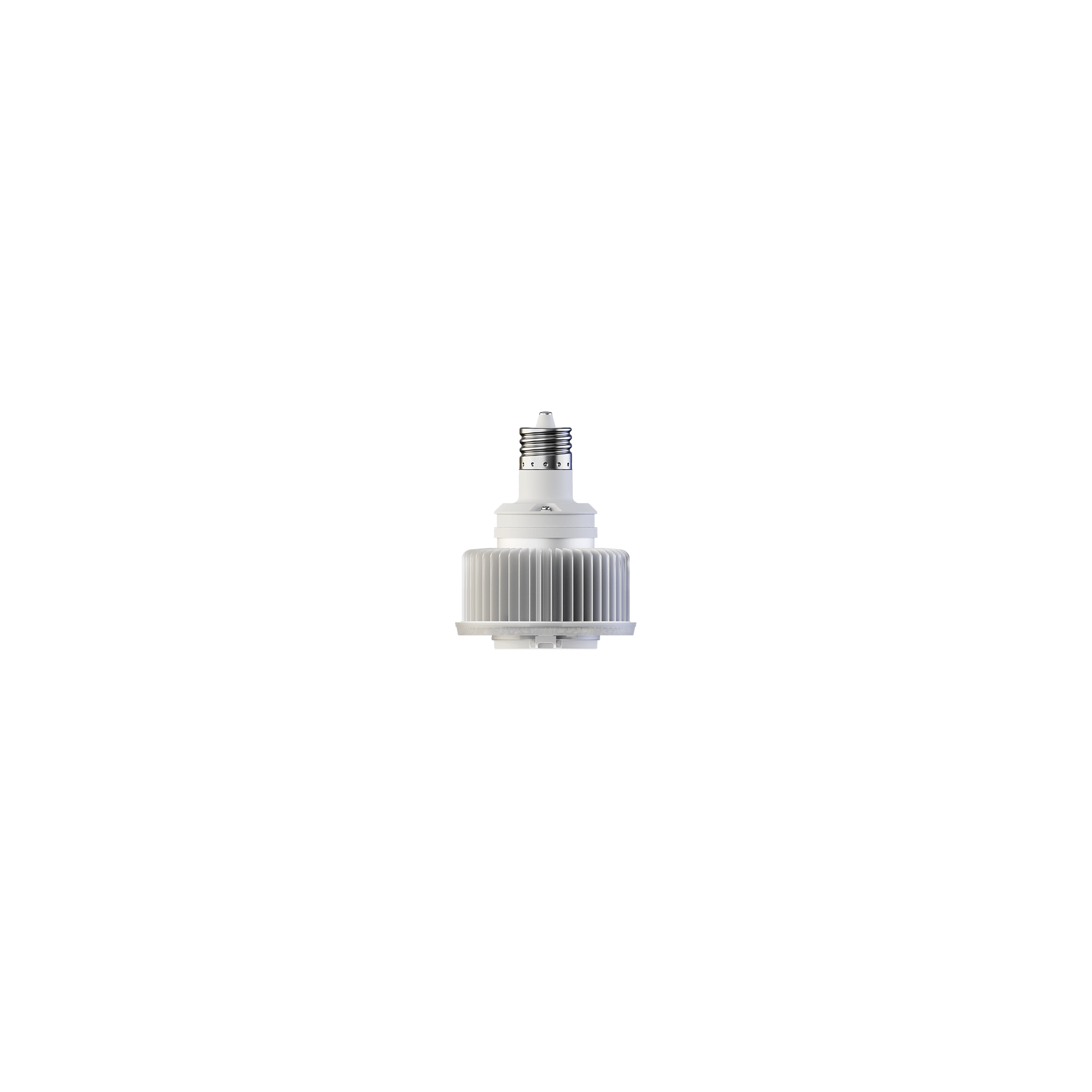

General
- Up to 7,000 Lumens, 156 L/W
- Integrated Patented Optic provides:
- Low Glare UGR<18
- 1.3x cd/lumen higher efficiency over no optic
- 80 CRI Standard, High CRI optional
- Wireless control options
- Temperature protection with full output:
- T(Ambient) = 65ºC/150F for 30W
- T(Ambient) = 45ºC/115F for 45W
- Socket extender option sold separately
- Enclosed fixture and IC rated for 30W
- Five Year or 50,000 Hour warranty
Control Options
- Wireless Options:
- Non Wiress Options:
- Occupancy & Daylight, Manual Power Set
- Dims to 10% then to off
- Controls not compatible with ballast operation
World Wide Qualifications
- UL/ULC, CE/CB, PSE, KC, BSMI, NOM
- DLC Standard
- IP52 / UL damp listed standard
- IP65 / UL wet optional
Mechanical
- Ø 16.14" (410mm) x 15.51" (394mm)
Compatible Accessories
- 16” UGR Diffuser (ACC-016-UGR-000-FL)
- 16” Conical Lens (ACC-016-CNL-000-FL)
- 16” Drop Lens (ACC-016-DRL-000-FL)
- 16” Wireguard Black (ACC-016-WBK-000-FL)
Electrical
- VL: Line Voltage 100-277 VAC, 50-60 Hz
- < 1% flicker
- 6 kV surge protection, PF>0.9/THD<20%
| Amps @ Line Voltage (VAC) |
| |
100V |
110V |
120V |
220V |
240V |
277V |
| 30W |
0.30A |
0.27A |
0.25A |
0.14A |
0.13A |
0.11A |
| 45W |
0.45A |
0.41A |
0.38A |
0.20A |
0.19A |
0.16A |
- 50° glare cutoff with UGR (ave) < 18
- Field-installed optical accessories without the need for tools (Options include uplights and diffusers)
No Optical Accessories
| CRI |
Power |
2200K |
2700K |
3000K |
3500K |
4000K |
5000K |
| 80 |
30W |
3,690
|
4,115
|
4,355
|
4,548
|
4,708
|
4,708
|
| 45W |
5,338
|
5,952
|
6,300
|
6,579
|
6,811
|
6,811
|
| 90 |
30W |
3,040
|
3,389
|
3,588
|
3,746
|
3,879
|
3,879
|
| 45W |
4,397
|
4,903
|
5,190
|
5,419
|
5,611
|
5,611
|
