VH: Hybrid: Ballast Compatible and Line Voltage 100-277 VAC
< 1% flicker
6 kV surge protection, PF>0.9/THD<20%
Amps @ Line Voltage (VAC)
100V
110V
120V
220V
240V
277V
30W
0.30A
0.27A
0.25A
0.14A
0.13A
0.11A
45W
0.45A
0.41A
0.38A
0.20A
0.19A
0.16A
50° glare cutoff with UGR (ave) < 18

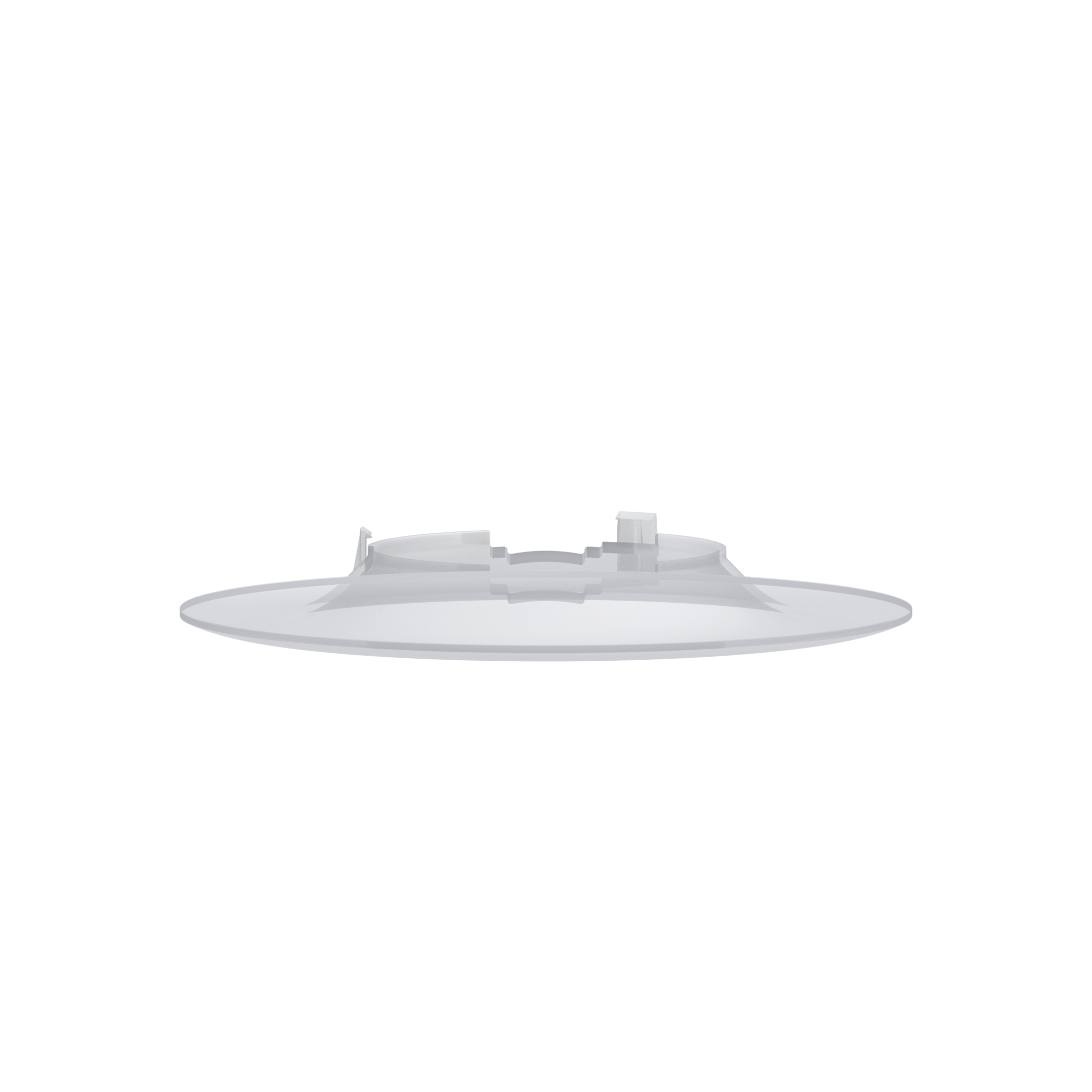

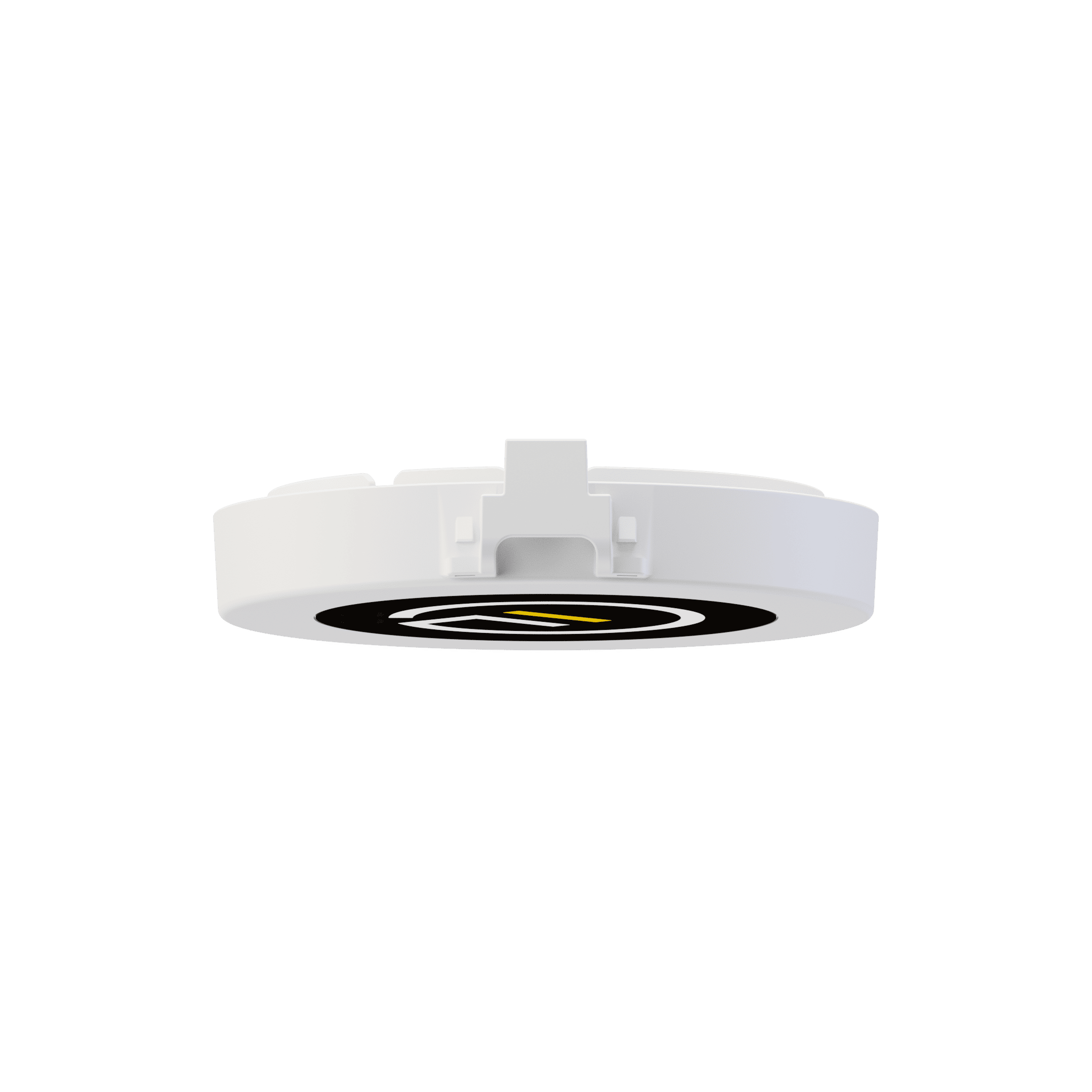

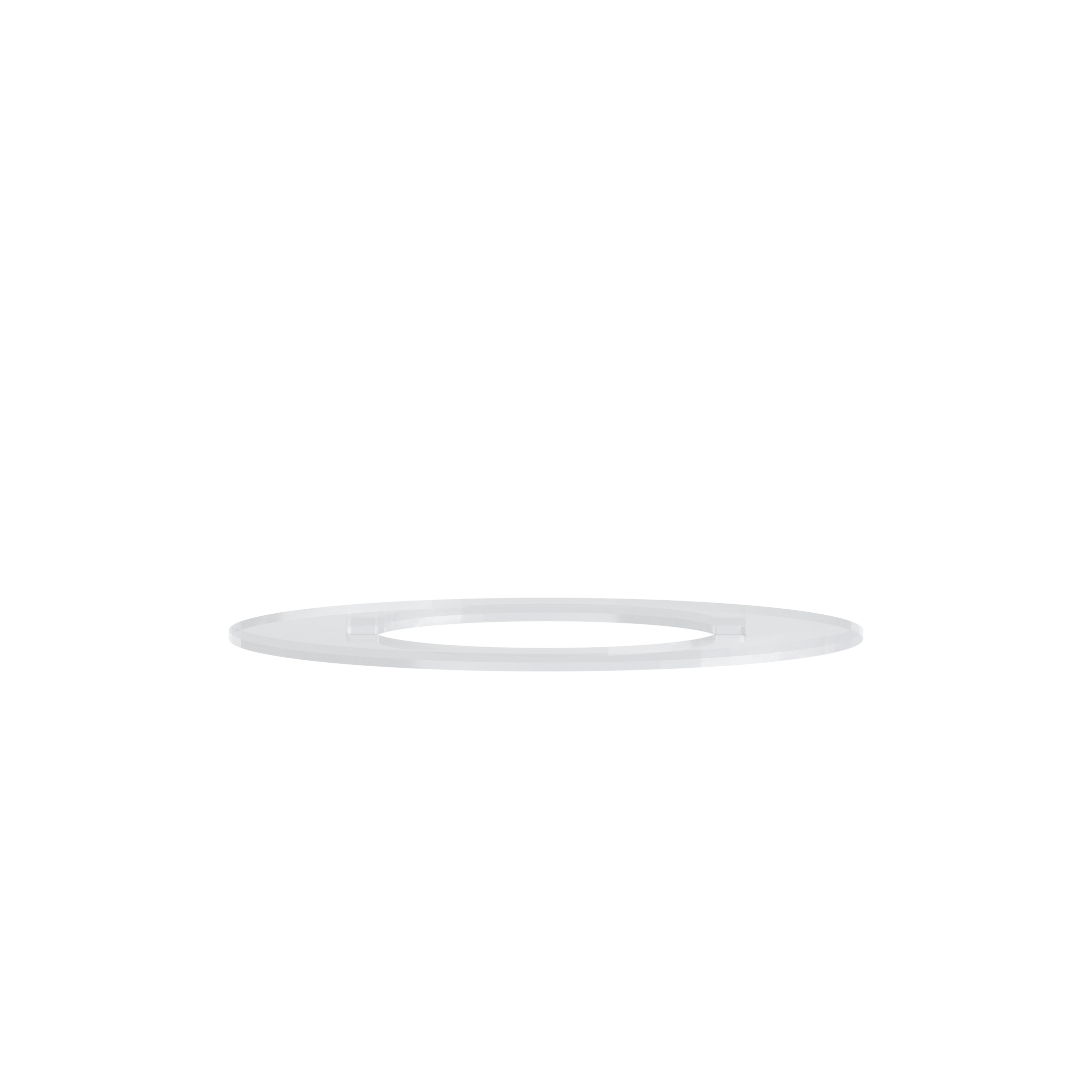

Field-installed optical accessories without the need for tools (Options include uplights and diffusers)
CRI
Power
2200K
2700K
3000K
3500K
4000K
5000K
80
30W
3,666
4,087
4,326
4,518
4,677
4,677
45W
5,303
5,913
6,258
6,536
6,766
6,766
90
30W
3,020
3,367
3,564
3,722
3,853
3,853
45W
4,368
4,870
5,155
5,384
5,574
5,574
The Hybrid series is compatible with HID magnetic ballast between 175-600W. Such ballast types include probe start, pulse start, CWA, or reactive. The table below shows compatible ballast that have been tested. Input to ballast may be up to 480V. Optical distribution and lumen output are constant regardless of Ballast type or wattage. Ballast operation is not compatible with dimming or controls.
HID Ballast Compatibility
Type
45-70W
100W
150W
175W
200W
250W
Metal Halide
M98
M110
M143
M90
-
M57
M137
M152
MH175
-
M138
M153
MH250
HPS
NG50
NG70
NG100
NG150
-
S66
S50
NG250
MV
H175
-
-
H175
-
-
Name
Media

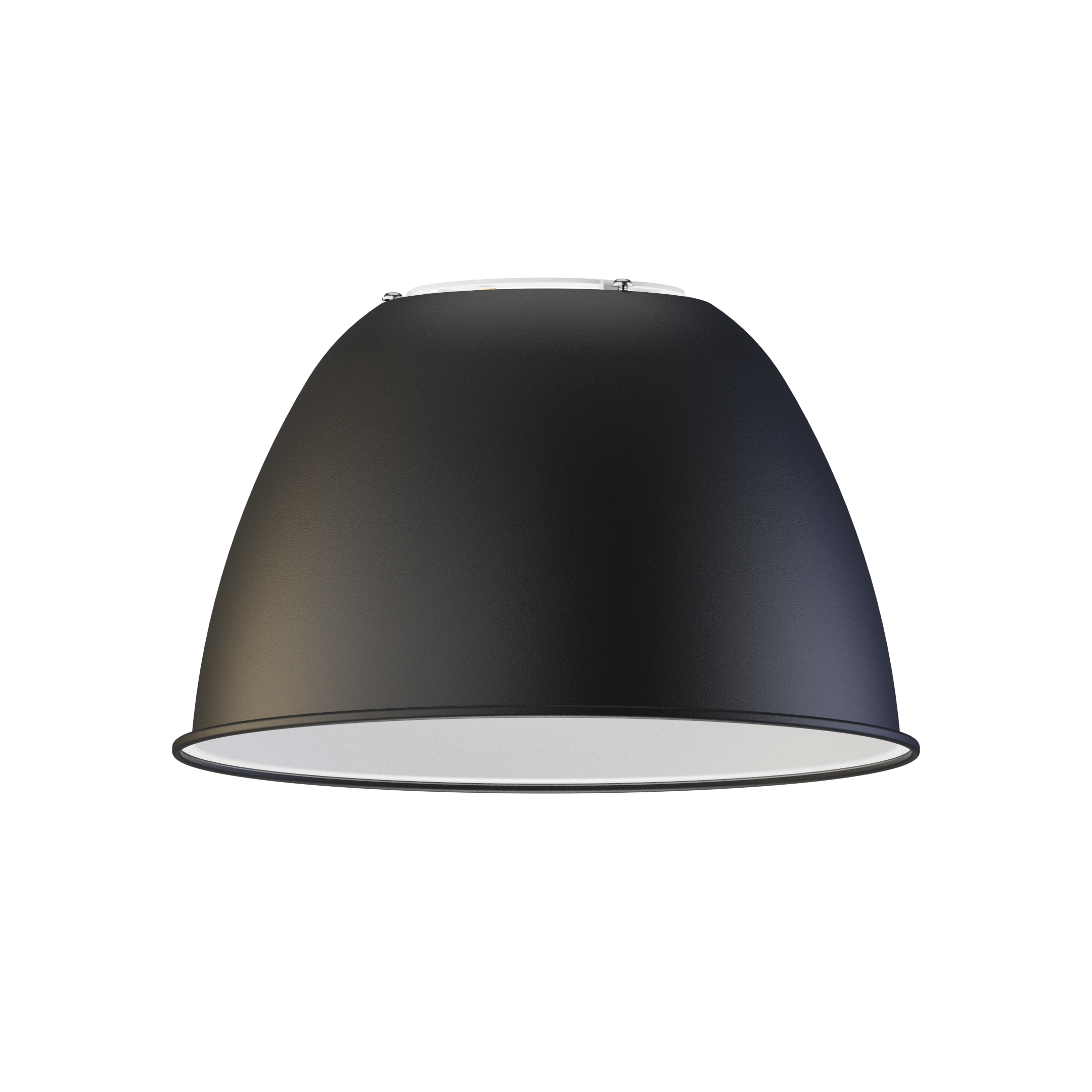

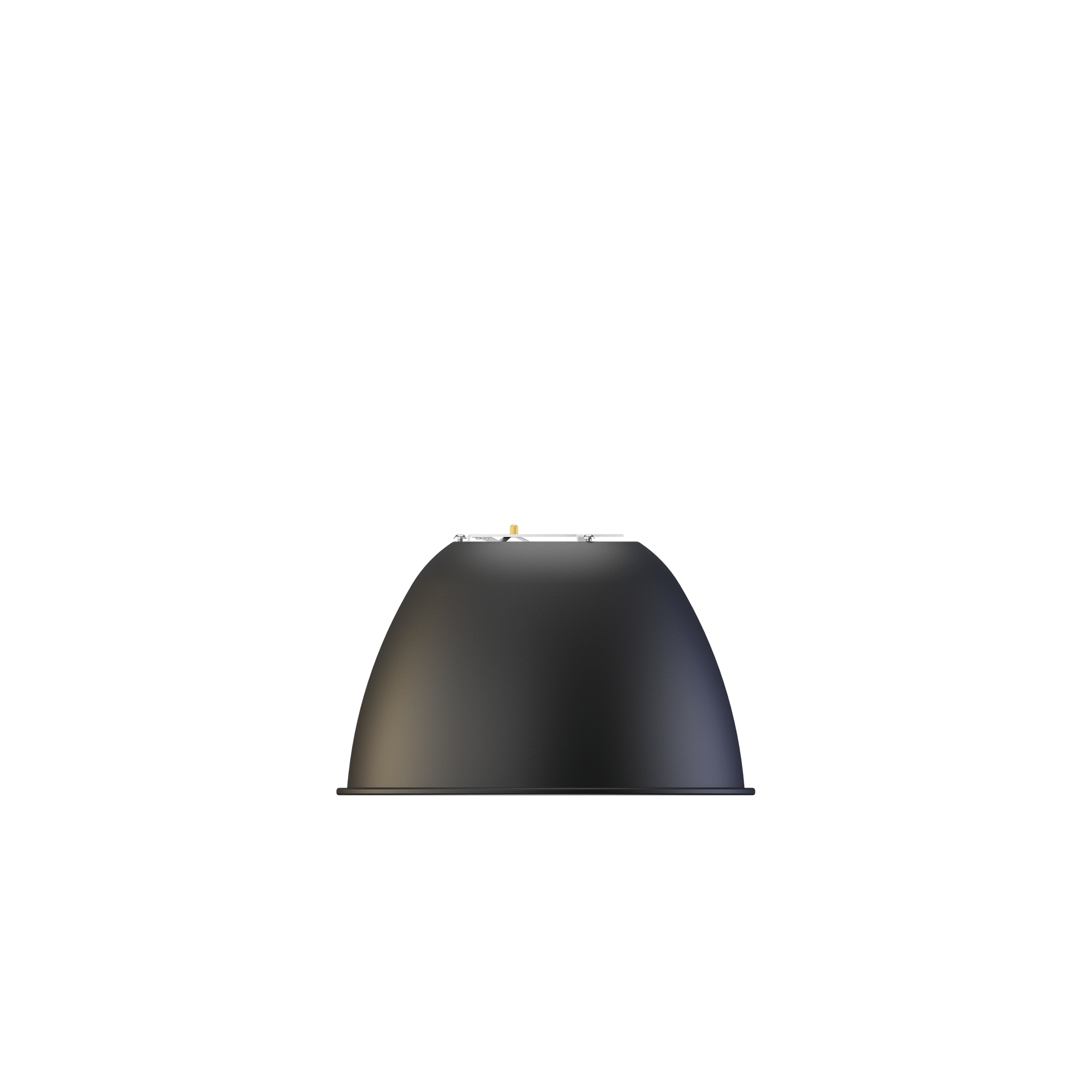

Transcendent 12" Aluminum Bell + VA6 Lamp Spec Sheet (UL/ULC USA/Canada , DLC USA , CB/CE Europe and Rest of the World , PSE Japan , CCC China , SAA Australia )

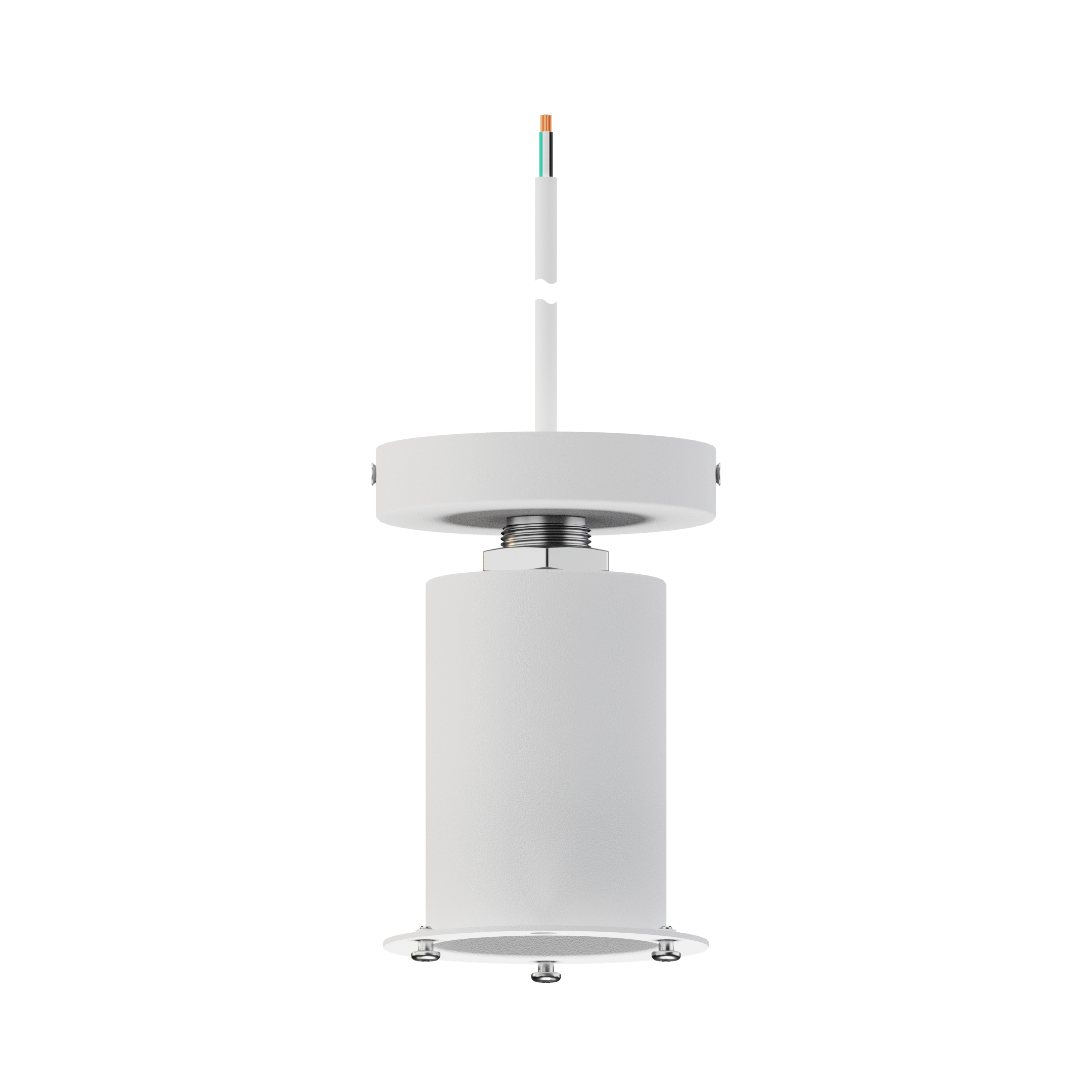

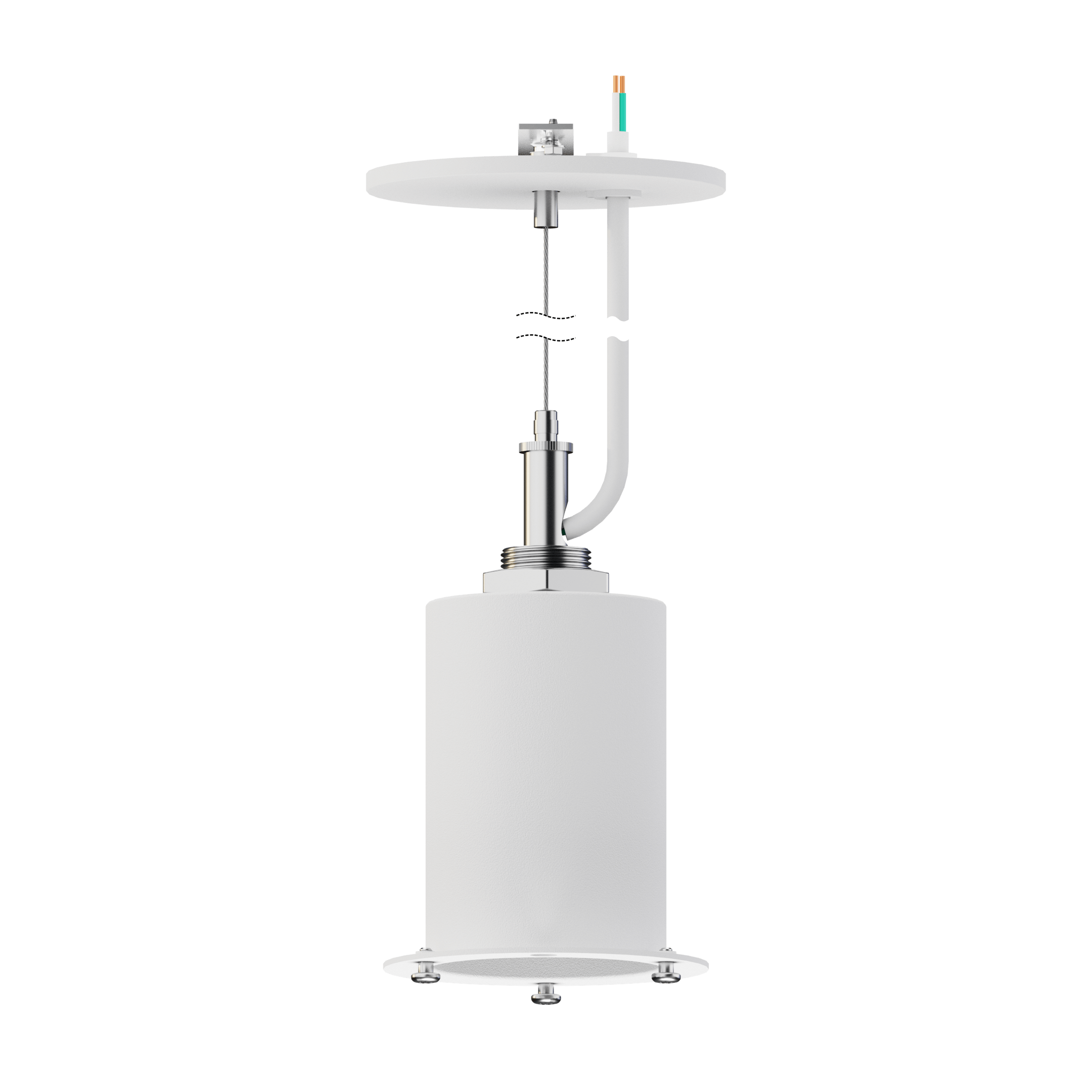

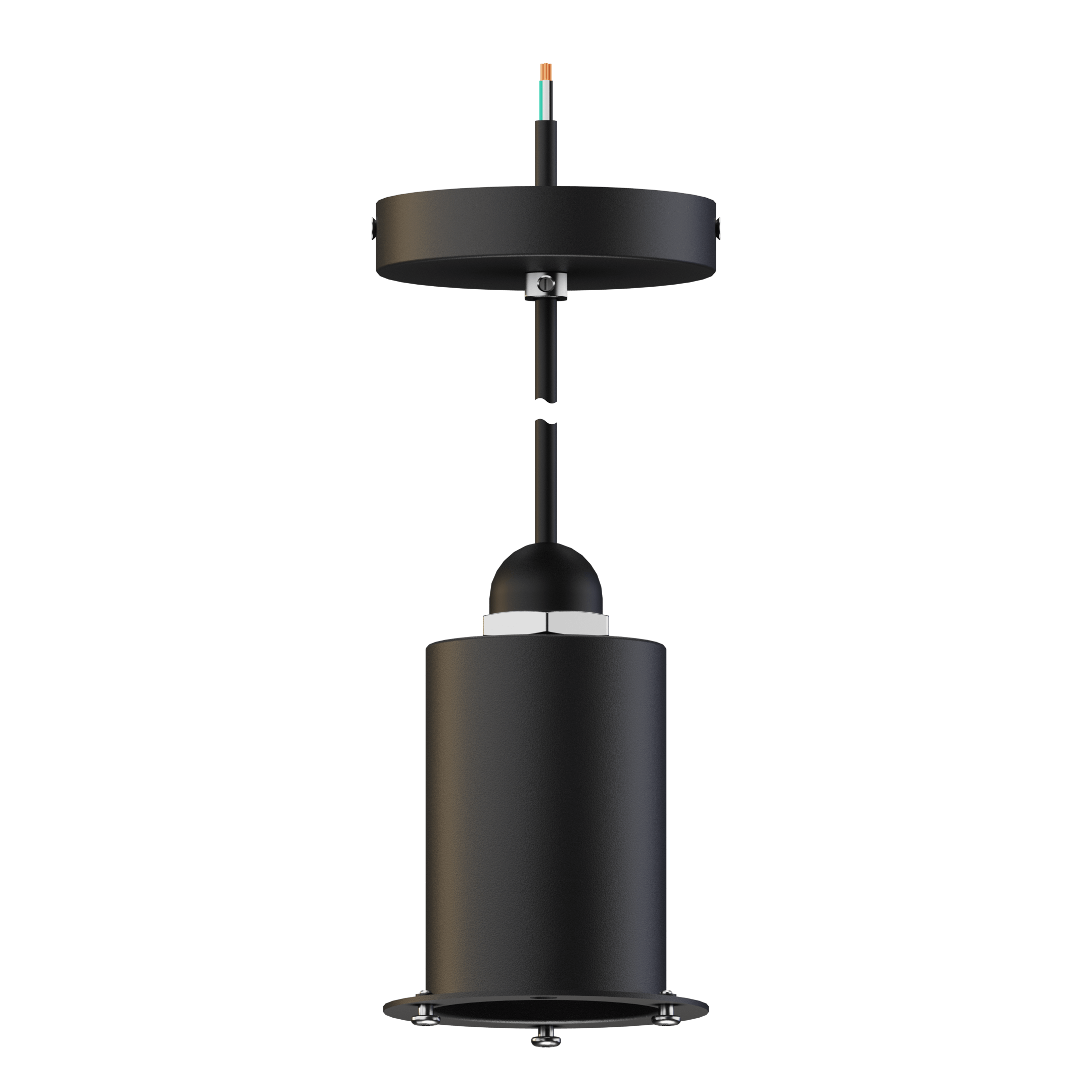

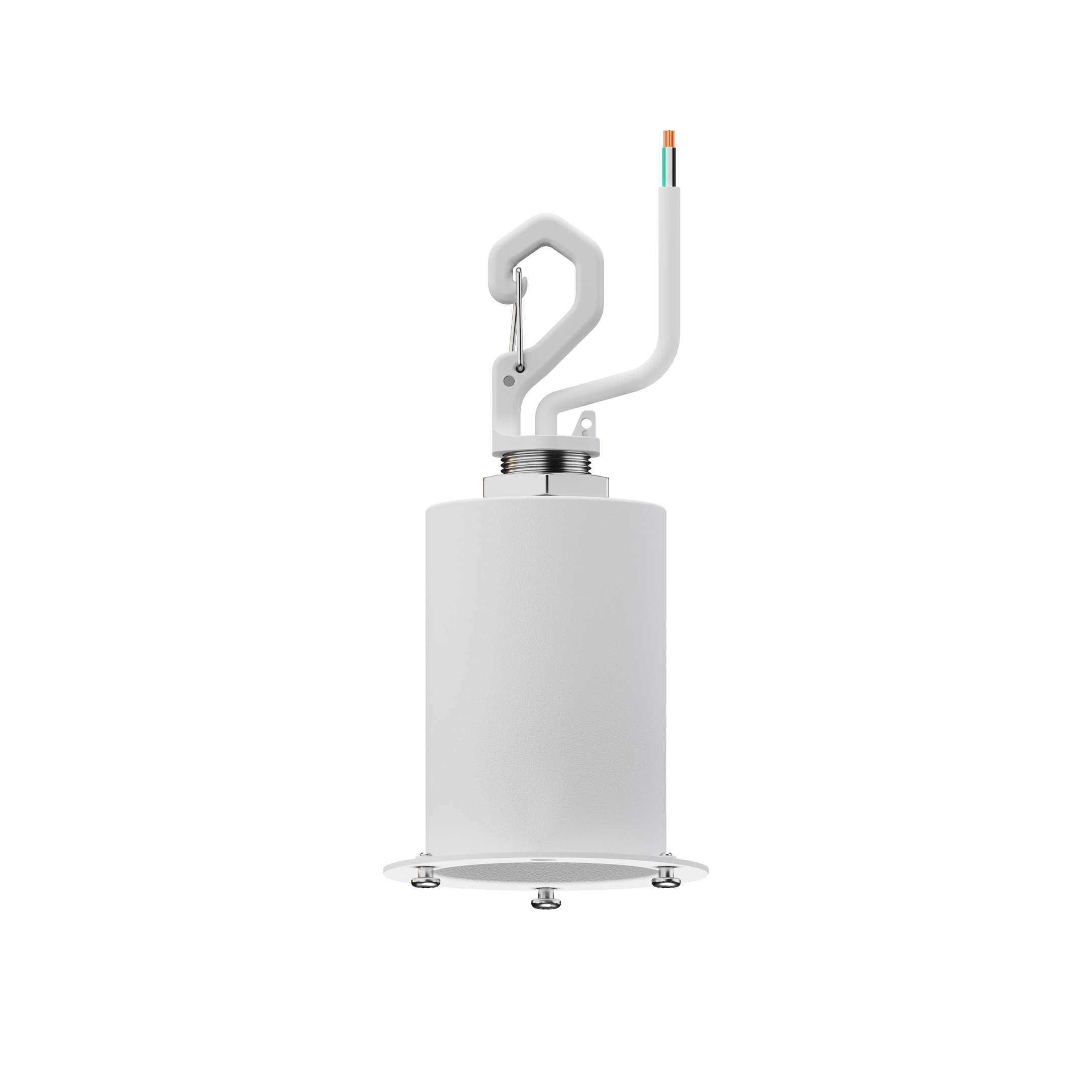

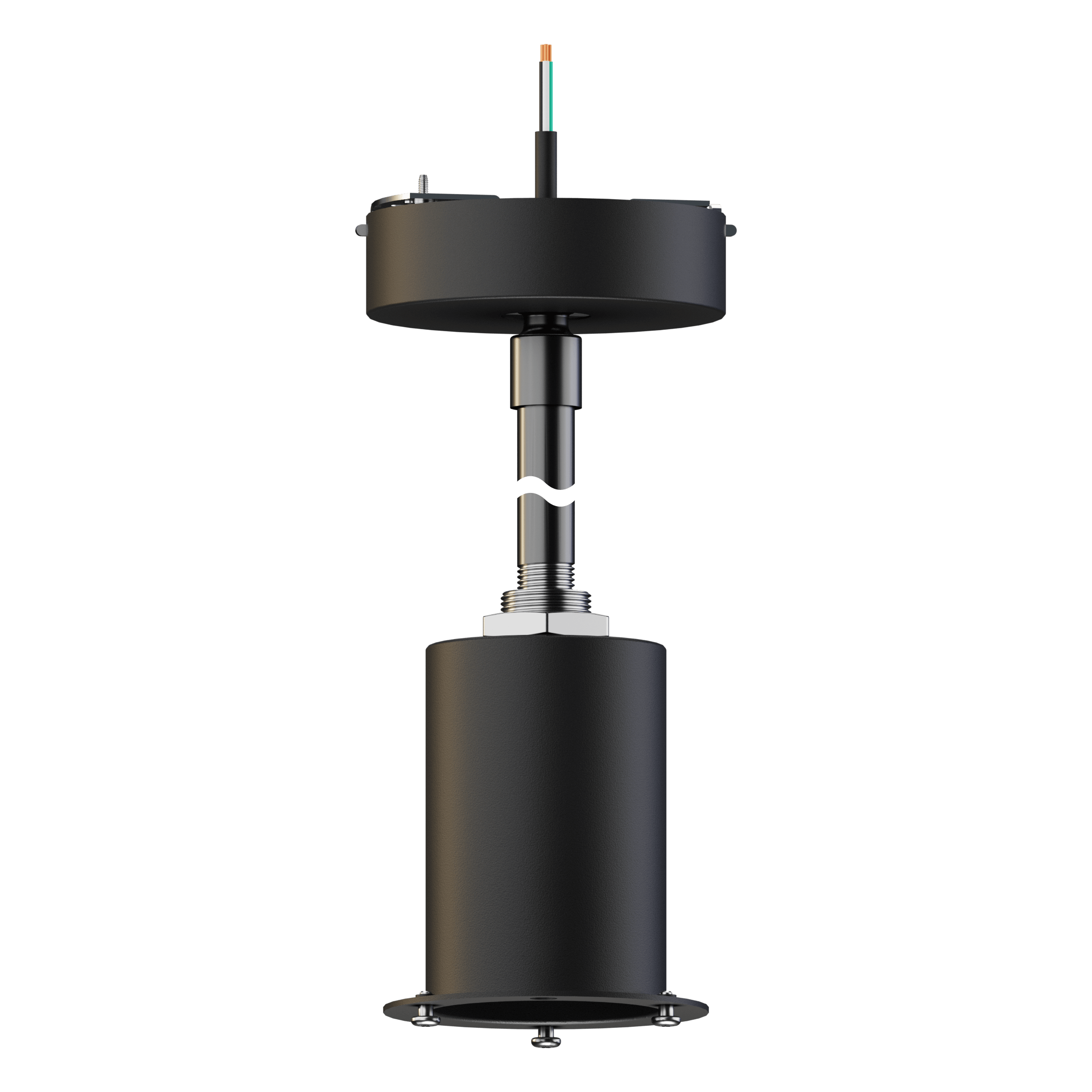

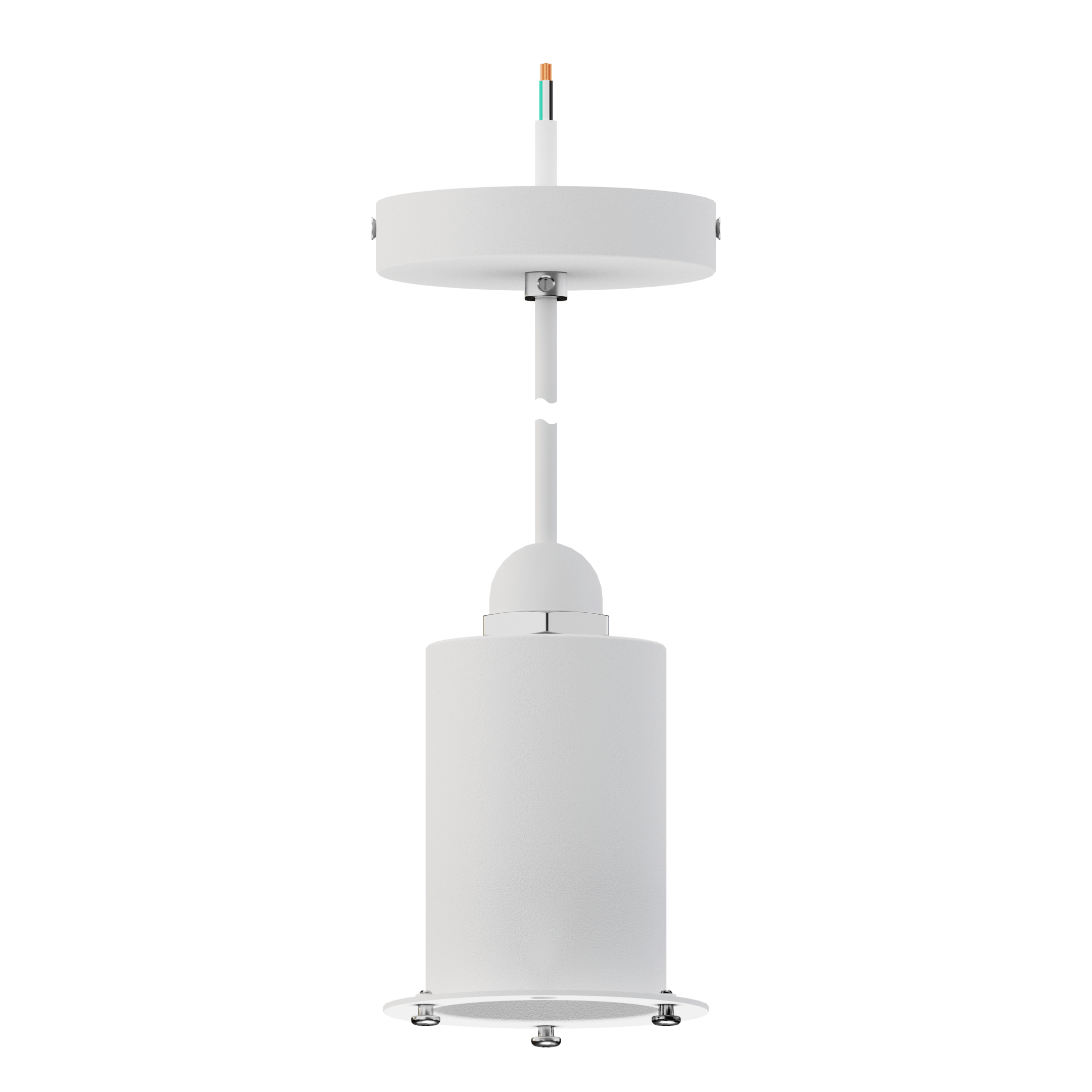

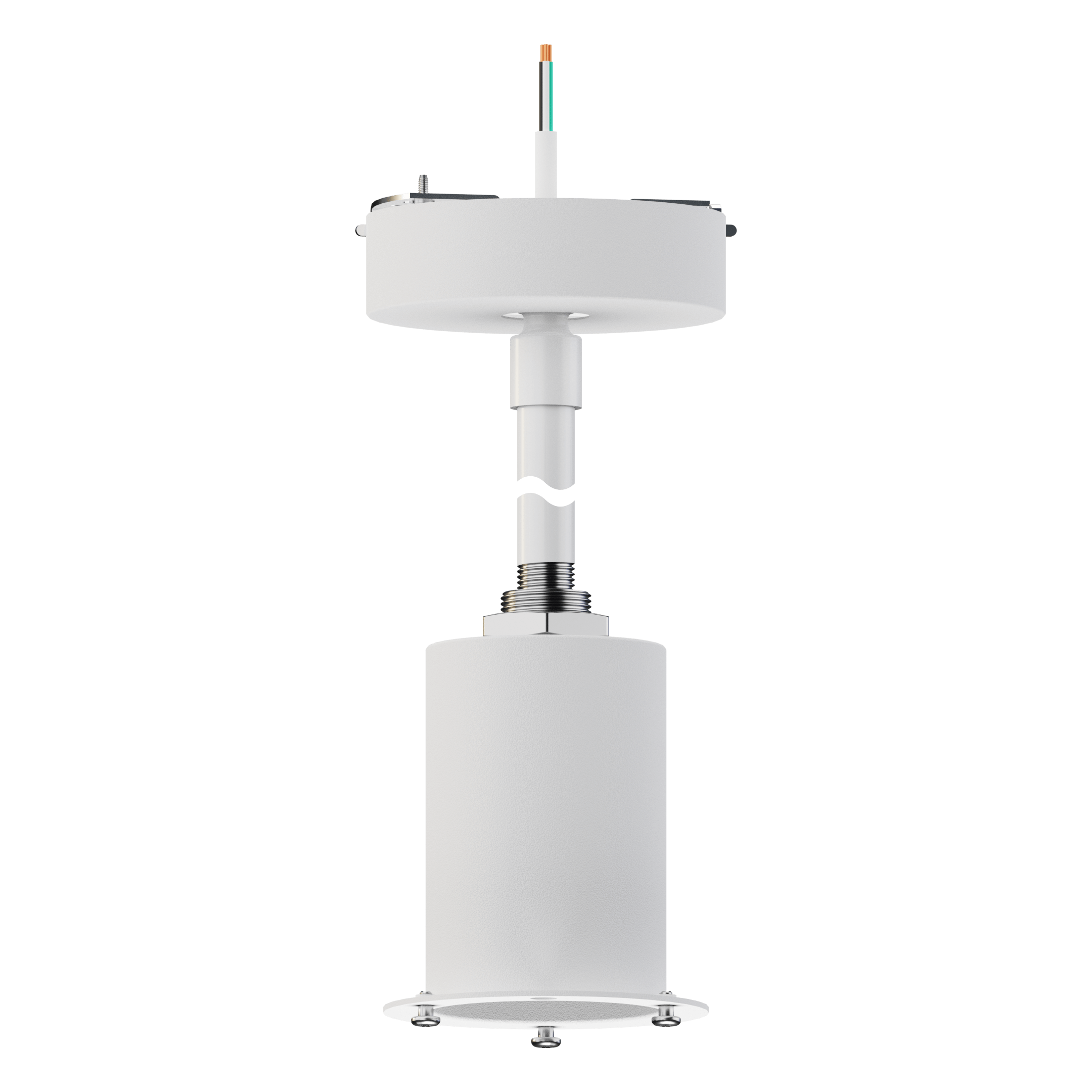

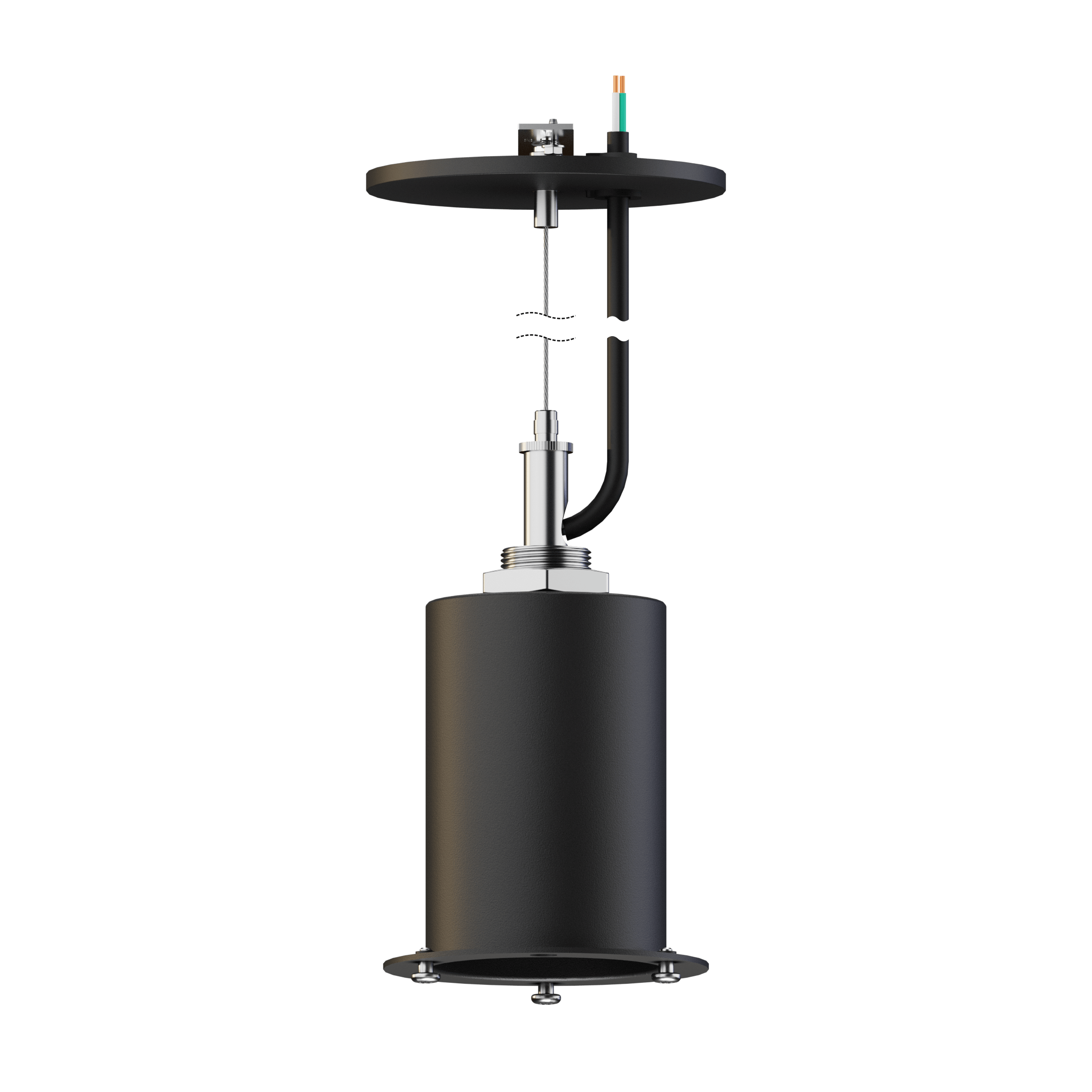

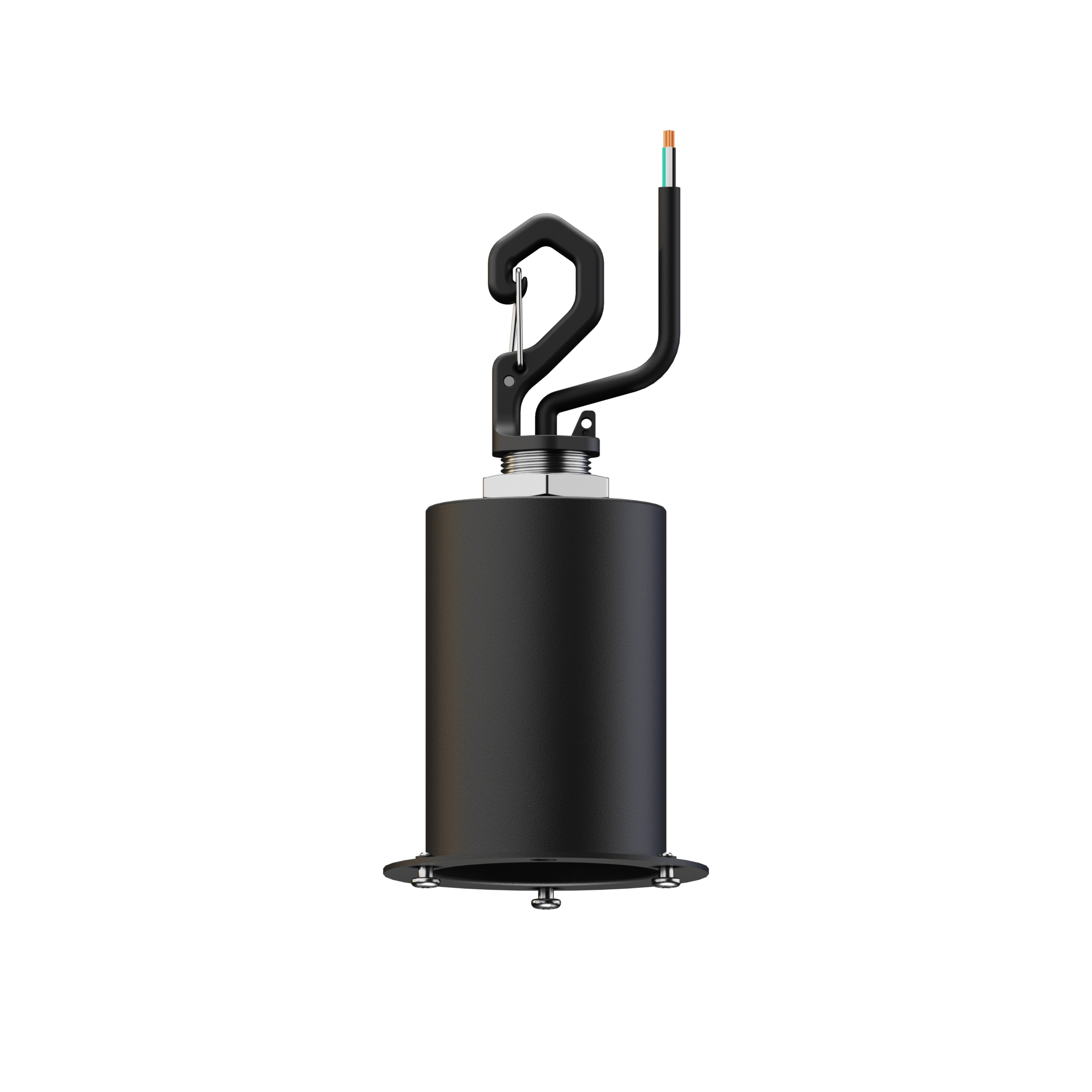

ADP Mounting Base to Reflector Installation Guide (All Regions)
Transcendent Prismatic/Aluminum Bell Luminaire Installation Video (All Regions)
