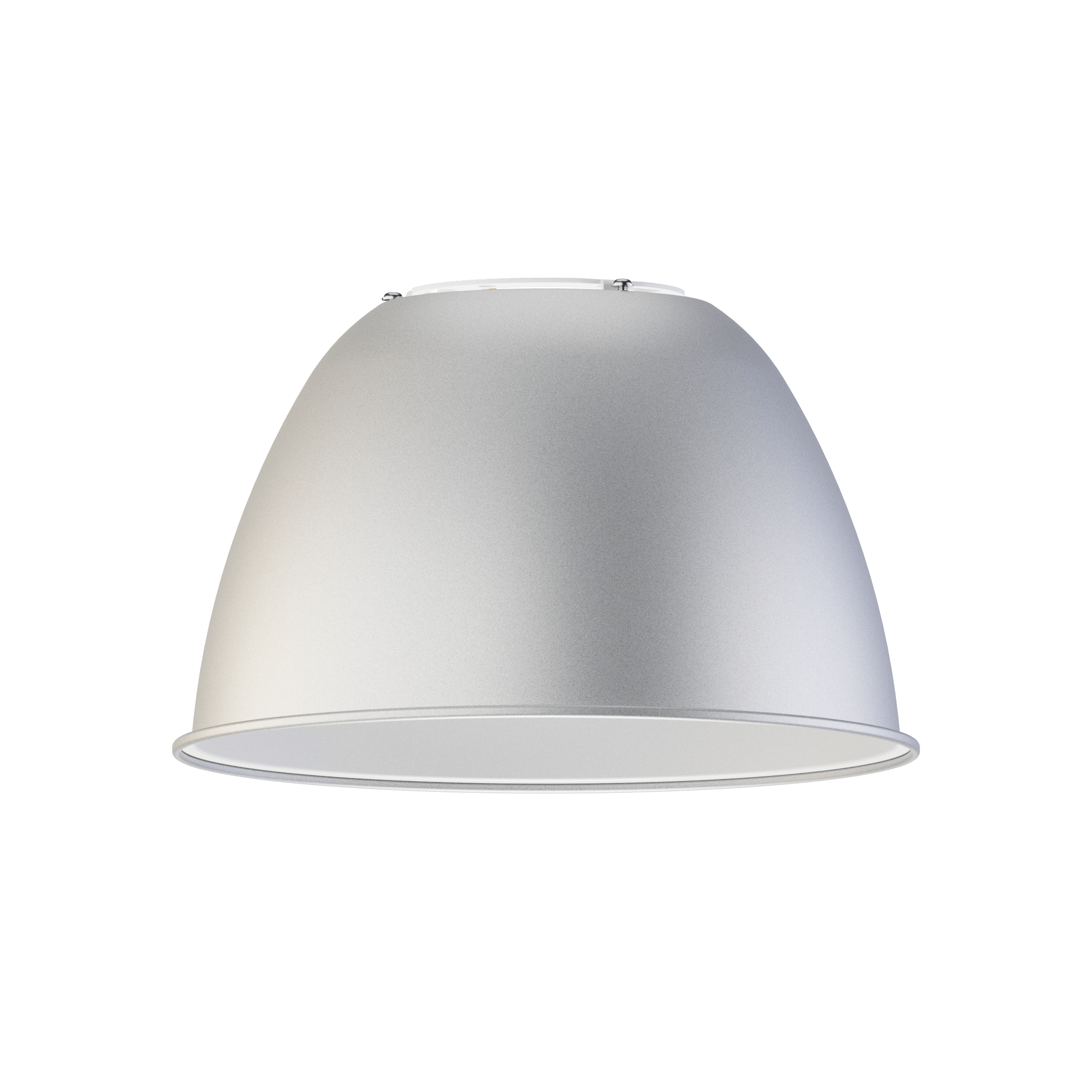

Up to 7,000 Lumens - Cosmetic Aluminum Bell 12” Reflector + VA6 Lamp

Transcendent Luminaire 12”/31cm Aluminum Reflector + VA6 Lamp

Array
(
    [0] => Array
        (
            [id] => 429
            [region_name] =>
            [region_id] => 15
            [resources_id] => 2
            [media_type] => pdf
            [short_url] => https://www.filamento.com/SPEC_Tx-AB12_VA6
            [file_name] => SPEC_Tx-AB12_VA6_240515.pdf
            [name] => Transcendent 12" Aluminum Bell + VA6 Lamp Spec Sheet
            [resource_name] => Spec Sheets
            [resource_slug] => SPEC-SHEETS
        )

    [1] => Array
        (
            [id] => 87
            [region_name] =>
            [region_id] => 15
            [resources_id] => 1
            [media_type] => pdf
            [short_url] => https://www.filamento.com/INST_ADP-Reflector
            [file_name] => INST_ADP-Reflector_240301.pdf
            [name] => ADP Mounting Base to Reflector Installation Guide
            [resource_name] => Installation Guides
            [resource_slug] => INSTALLATION-GUIDES
        )

    [2] => Array
        (
            [id] => 38
            [region_name] =>
            [region_id] => 15
            [resources_id] => 4
            [media_type] => mp4
            [short_url] => https://www.filamento.com/INSV_TU-PRxx-xxxxxx-xxxx-xxx-xxxx-xxx
            [file_name] => INSV_TU-PRxx-xxxxxx-xxxx-xxx-xxxx-xxx_240122.mp4
            [name] => Transcendent Prismatic/Aluminum Bell Luminaire Installation Video
            [resource_name] => Videos
            [resource_slug] => VIDEOS
        )

)

General

Up to 7,000 Lumens, 156 L/W
Integrated Patented Optic provides:
- Low Glare UGR<18
- 1.3x cd/lumen higher efficiency over no optic
80 CRI Standard, High CRI optional
Wireless control options
Temperature protection with full output:
- T(Ambient) = 65ºC/150F for 30W
- T(Ambient) = 45ºC/115F for 45W
Socket extender option sold separately
Enclosed fixture and IC rated for 30W
Five Year or 50,000 Hour warranty

Control Options

Wireless Options:
- Synpase, Casambi, Avi-On
Non Wiress Options:
- Occupancy & Daylight, Manual Power Set
Dims to 10% then to off
Controls not compatible with ballast operation

World Wide Qualifications

UL/ULC, CE/CB, PSE, KC, BSMI, NOM
DLC Standard
IP52 / UL damp listed standard
IP65 / UL wet optional

Mechanical

Ø 309mm (12.17”) x 333mm (13.11”)

Compatible Accessories

12” UGR Diffuser (ACC-012-UGR-000-FL)
12” Conical Lens (ACC-012-CNL-000-FL)
12” Drop Lens (ACC-012-DRL-000-FL)
12” Wireguard Black (ACC-012-WBK-000-FL)

Electrical

VL: Line Voltage 100-277 VAC, 50-60 Hz
< 1% flicker
6 kV surge protection, PF>0.9/THD<20%

Amps @ Line Voltage (VAC)
	100V	110V	120V	220V	240V	277V
30W	0.30A	0.27A	0.25A	0.14A	0.13A	0.11A
45W	0.45A	0.41A	0.38A	0.20A	0.19A	0.16A

50° glare cutoff with UGR (ave) < 18
Field-installed optical accessories without the need for tools (Options include uplights and diffusers)

No Optical Accessories

CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	30W	3,666	4,087	4,326	4,518	4,677	4,677
80	45W	5,303	5,913	6,258	6,536	6,766	6,766
90	30W	3,020	3,367	3,564	3,722	3,853	3,853
90	45W	4,368	4,870	5,155	5,384	5,574	5,574

Name	Media
Transcendent 12" Aluminum Bell + VA6 Lamp Spec Sheet ()
ADP Mounting Base to Reflector Installation Guide ()
Transcendent Prismatic/Aluminum Bell Luminaire Installation Video ()

Configurator

Complete Assembly

Transcendent Luminaire 12”/31cm Aluminum Reflector + VA6 Lamp

Part Number

TU -AB12-GR2WH2 -S020-WH1-WIRE -000 +VA6-E39-030-8-30-VH-AN-B90-000-000

Bill of Material

Category	Product
Reflector	Aluminum Bell 12"/31cm Gray/White Reflector	Edit Link
Mounting Base	ADP Base Pendant Mount - White	Edit Link
Reflector Accessory	No Reflector Accessory	Details Link
Lamp/Fixture	VA6 Lamp Mogul Base	Details Link
Lamp Accessory	No Lamp Accessory	Edit Link
Control Cap	Blank Cap - No Controls	Edit Link
