Up to 26,000 Lumens - Cosmetic Cylinder 07” Reflector + VA6 Lamp

Transcendent Luminaire 7”/18cm Cylinder Reflector black/black+ VA6 Lamp

Up to 7,000 Lumens, 156 L/W
Certified for Magnetic HID Ballast & 100-277 VAC
Integrated Patented Optic provides:
- Low Glare UGR<18
- 1.3x cd/lumen higher efficiency over no optic
80 CRI Standard, High CRI optional
Wireless control options
Temperature protection with full output:
- T(Ambient) = 65ºC/150F for 30W
- T(Ambient) = 45ºC/115F for 45W
Socket extender option sold separately
Enclosed fixture and IC rated for 30W
Five Year or 50,000 Hour warranty

Wireless Options:
- Synpase, Casambi, Avi-On
Non Wiress Options:
- Occupancy & Daylight, Manual Power Set
Dims to 10% then to off

VL: Line Voltage 100-277 VAC, 50-60 Hz
VH: Hybrid: Ballast Compatible and Line Voltage 100-277 VAC
< 1% flicker
6 kV surge protection, PF>0.9/THD<20%

	Amps @ Line Voltage (VAC)
	100V	110V	120V	220V	240V	277V
30W	0.30A	0.27A	0.25A	0.14A	0.13A	0.11A
45W	0.45A	0.41A	0.38A	0.20A	0.19A	0.16A

50° glare cutoff with UGR (ave) < 18
Field-installed optical accessories without the need for tools (Options include uplights and diffusers)

CRI	Power	2200K	2700K	3000K	3500K	4000K	5000K
80	30W	3,607	4,022	4,257	4,446	4,603	4,603
80	45W	5,218	5,818	6,159	6,431	6,658	6,658
90	30W	2,972	3,313	3,507	3,662	3,791	3,791
90	45W	4,299	4,793	5,073	5,298	5,485	5,485

The Hybrid series is compatible with HID magnetic ballast between 175-600W. Such ballast types include probe start, pulse start, CWA, or reactive. The table below shows compatible ballast that have been tested. Input to ballast may be up to 480V. Optical distribution and lumen output are constant regardless of Ballast type or wattage. Ballast operation is not compatible with dimming or controls.

	HID Ballast Compatibility
Type	45-70W	100W	150W	175W	200W	250W
Metal Halide	M98 M110 M143	M90	-	M57 M137 M152 MH175	-	M138 M153 MH250
HPS	NG50 NG70	NG100	NG150	-	S66	S50 NG250
MV	H175	-	-	H175	-	-

Name	Media
Transcendent 7" Cylinder + VA6 Lamp Spec Sheet (UL/ULC USA/Canada , DLC , CB/CE Europe and Rest of the World , PSE Japan , CCC China , SAA Australia )
ADP Mounting Base to Reflector Installation Guide (All Regions)
Transcendent Cylinder 7" Luminaire Installation Video (All Regions)

Configurator

Complete Assembly

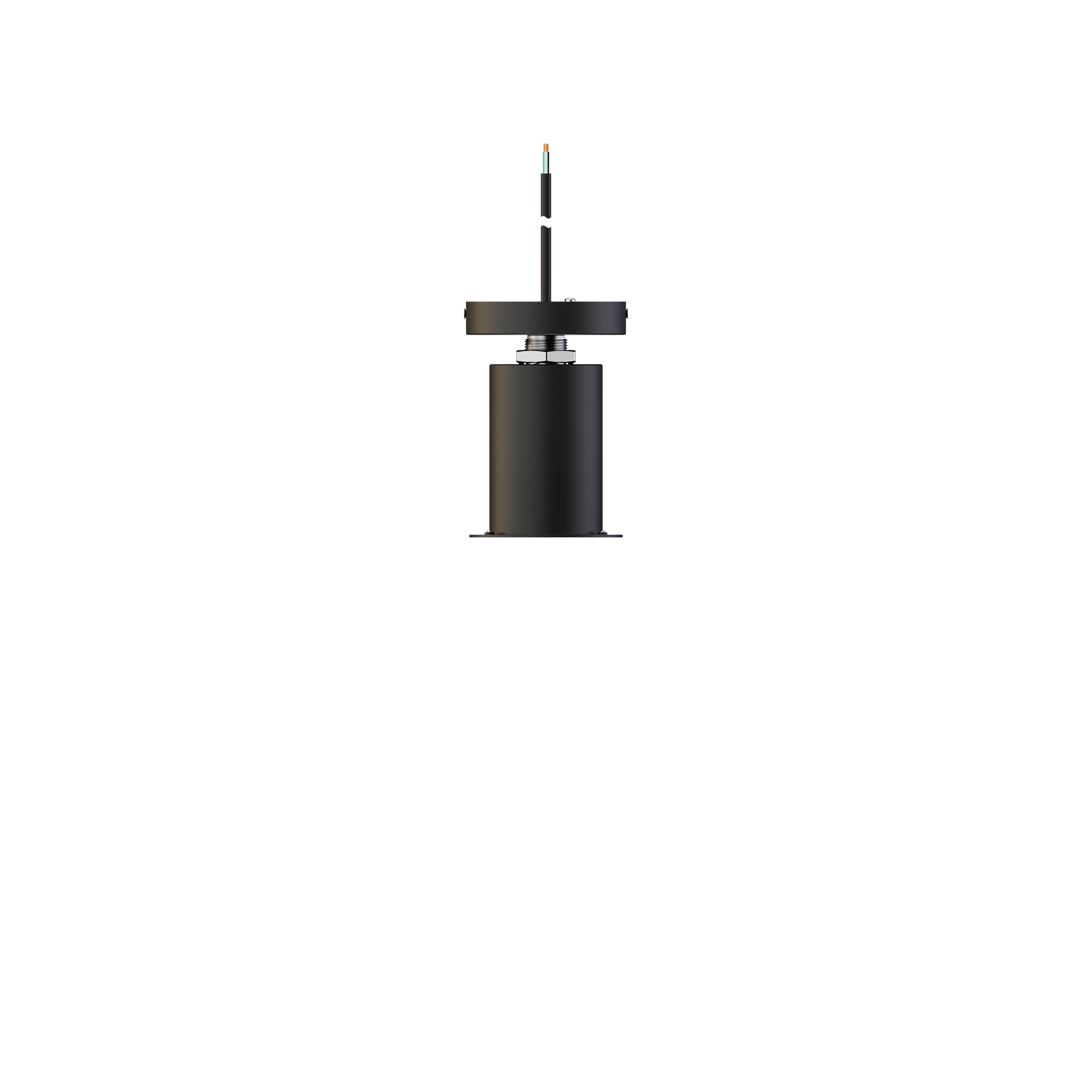

Transcendent Luminaire 7”/18cm Cylinder Reflector black/black+ VA6 Lamp

Part Number

TU -CY07-BK2BK2 -J020-BK1-WIRE +VA6-E39-030-8-27-VH-AN-B90-000-000

Bill of Material

Category	Part Number	Product

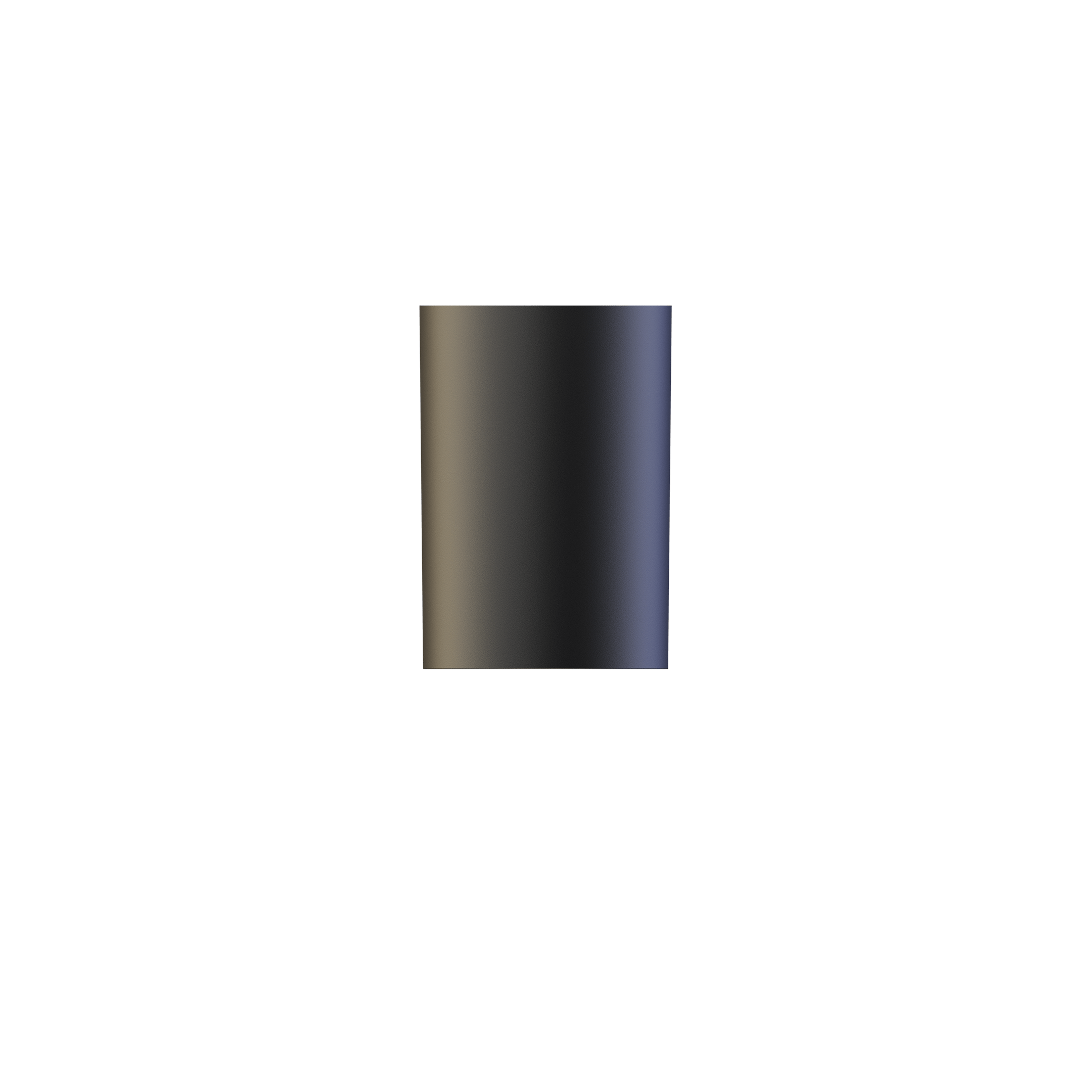

Reflector	RFL-CY07-BK2BK2	Cylinder 7"/18cm Black/Black Reflector	Edit
Mounting Base	ADP-E39-JVX-20-WIRE-0300-001-001	ADP Base Surface Mount - Black	Edit
Lamp/Retrofit	VA6-E39-030-8-27-VH-AN-B90-000-000	VA6 Lamp Mogul Base	Edit
Control Cap	CAP-A75-000-WH-FL-FL	Blank Cap - No Controls	Edit
