High Bay Designed for Retail
Does your store look dull even though you exceed the required floor light levels ? The cause is dark walls, dark shelving and a dark ceiling.That is the cave effect. The problem got worse after the introduction of LED lighting.
Legacy HID and fluorescent high bays were non-directional. Got the floor brightness right and the walls and ceiling lit up as a side effect.So the engineering requirement mostly specified floor brightness only (foot candles).
Then LED arrived. LEDs are directional. You can beat the floor foot candles and still put almost nothing on the walls or the ceiling. This isnot an issue for a distribution warehouse but a major issue for retail warehousing. Dark walls and ceiling will make the space appear dull,dark and unappealing to your customers.

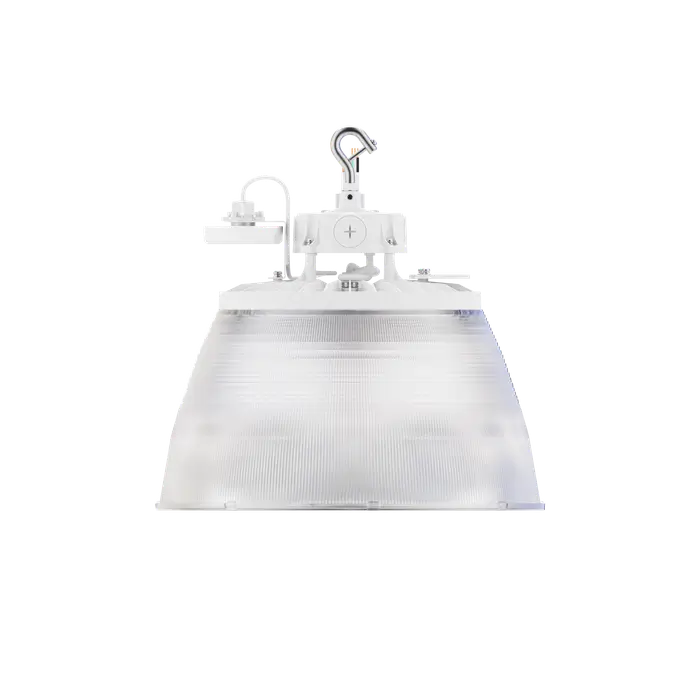

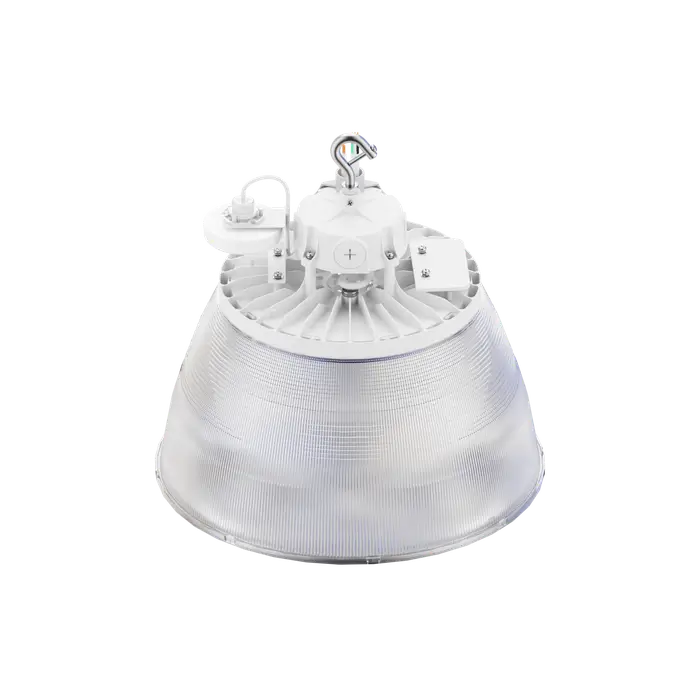

This is the problem we solve with the RH1-RFL high bay. We developed three optics specifically to light a retail warehouse in a way that appeals to your customers, while reducing glare and increasing visual comfort. Better still, a well-lit store increases sales.1,2
Does your store look dull even though you exceed the required floor light levels ? The cause is dark walls, dark shelving and a dark ceiling.That is the cave effect. The problem got worse after the introduction of LED lighting.
Legacy HID and fluorescent high bays were non-directional. Got the floor brightness right and the walls and ceiling lit up as a side effect.So the engineering requirement mostly specified floor brightness only (foot candles).
Then LED arrived. LEDs are directional. You can beat the floor foot candles and still put almost nothing on the walls or the ceiling. This isnot an issue for a distribution warehouse but a major issue for retail warehousing. Dark walls and ceiling will make the space appear dull,dark and unappealing to your customers.
This is the problem we solve with the RH1-RFL high bay. We developed three optics specifically to light a retail warehouse in a way that appeals to your customers, while reducing glare and increasing visual comfort. Better still, a well-lit store increases sales.

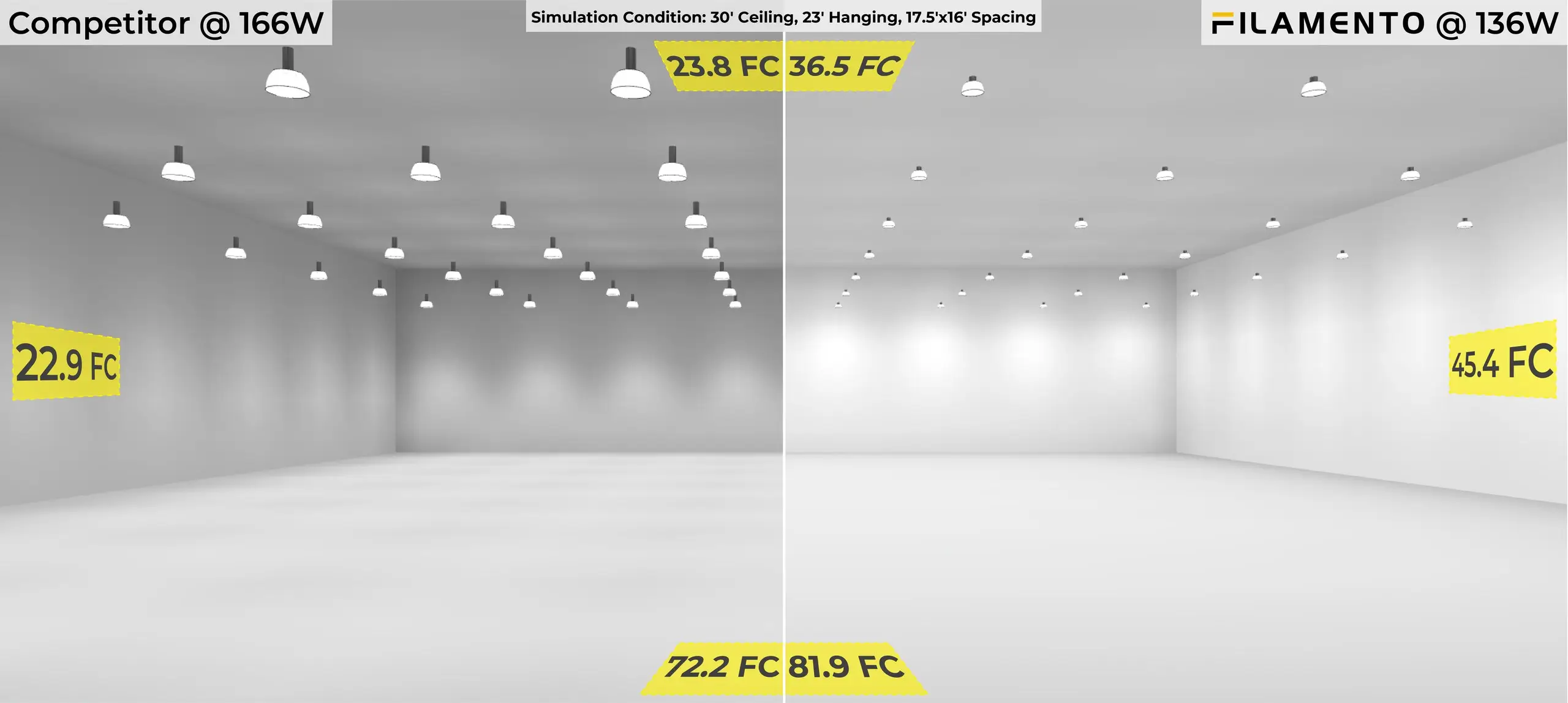

Typical Competitor Luminaire vs Filamento RH1-RFL
Both halves are the same room on the same layout, and the only change is the fixture. The standard high bay pushes almost everythingstraight down, so the walls and the ceiling go dark. The RH1-RFL splits the same light three ways, on purpose: the floor holds up, the wallsdouble, and the ceiling gets lit.
2x
Brighter walls, rack face, products
1.5x
Brighter ceiling
1.4x
Improved Efficiency Foot candles / Watt
Three Optics for Three Zones of Illumination

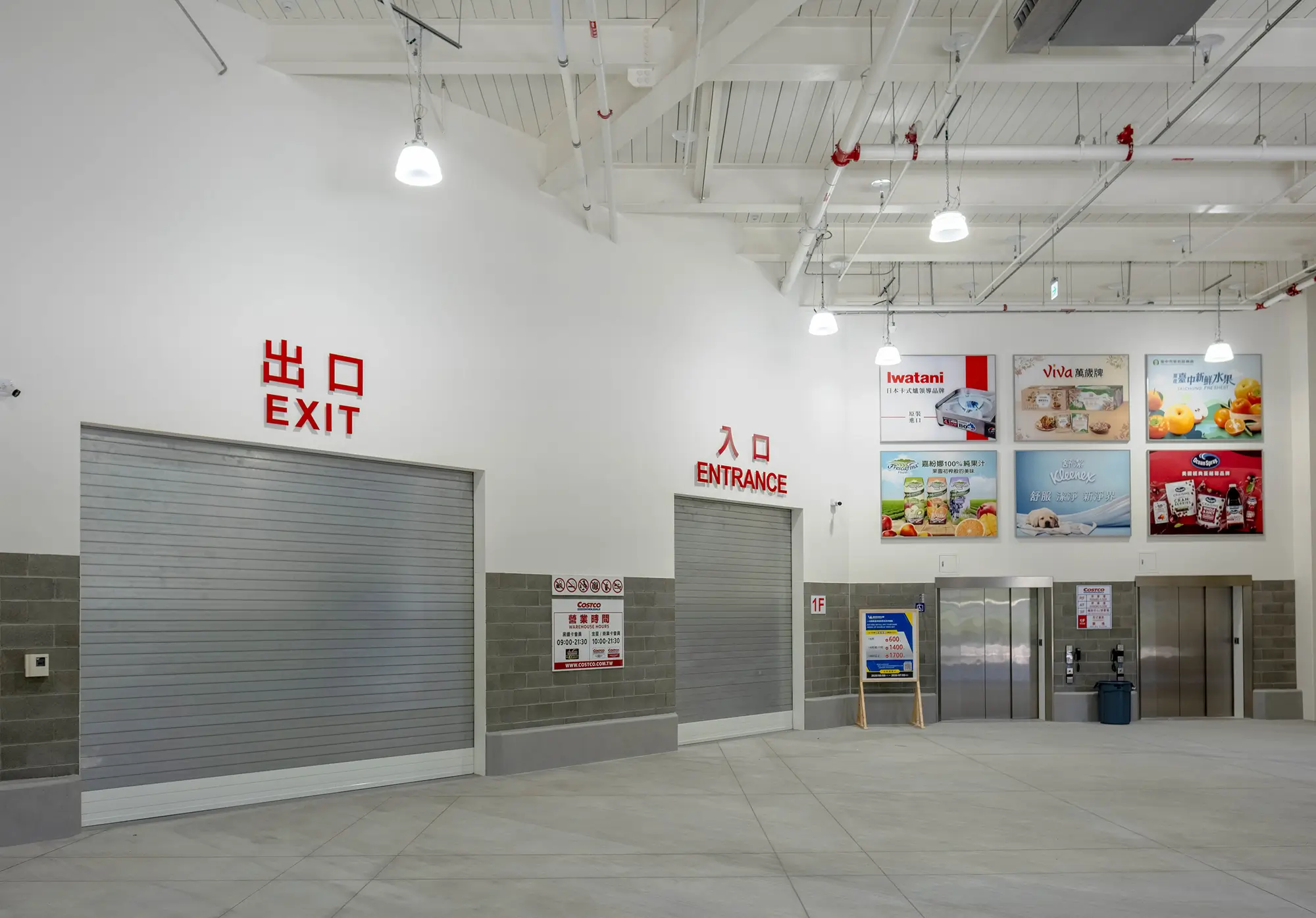

Uniform Wall Wash and Ceiling

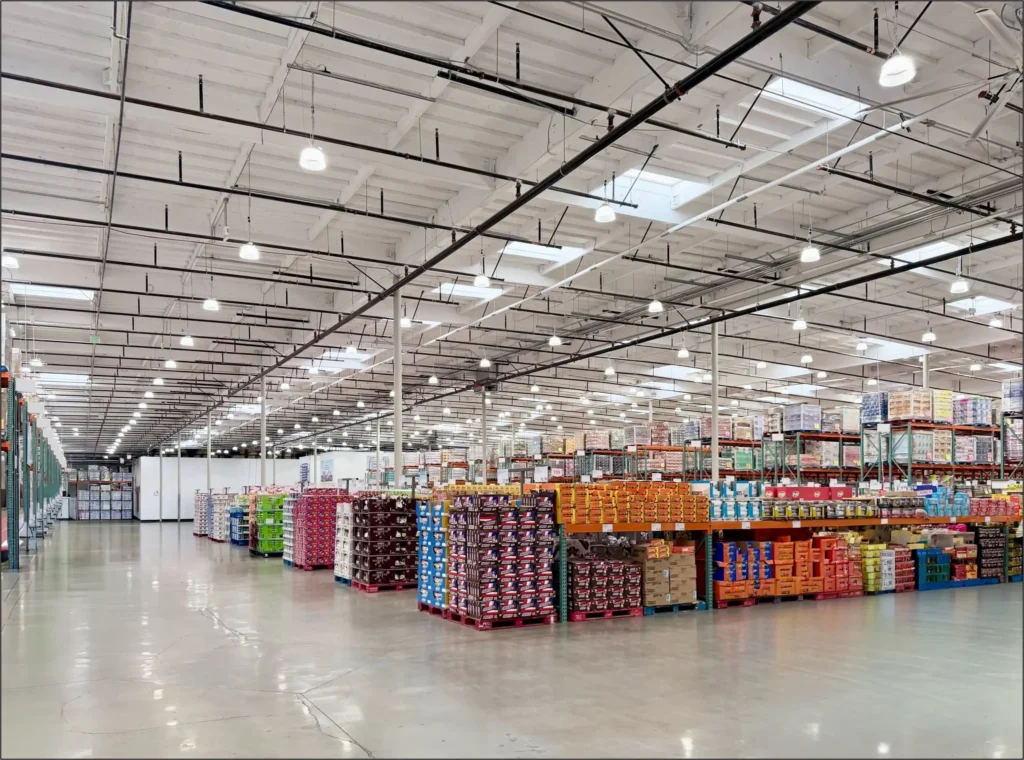

A real installation, not a rendering. It shows the uniformity the RH1-RFL optical distribution puts on the wall and ceiling.

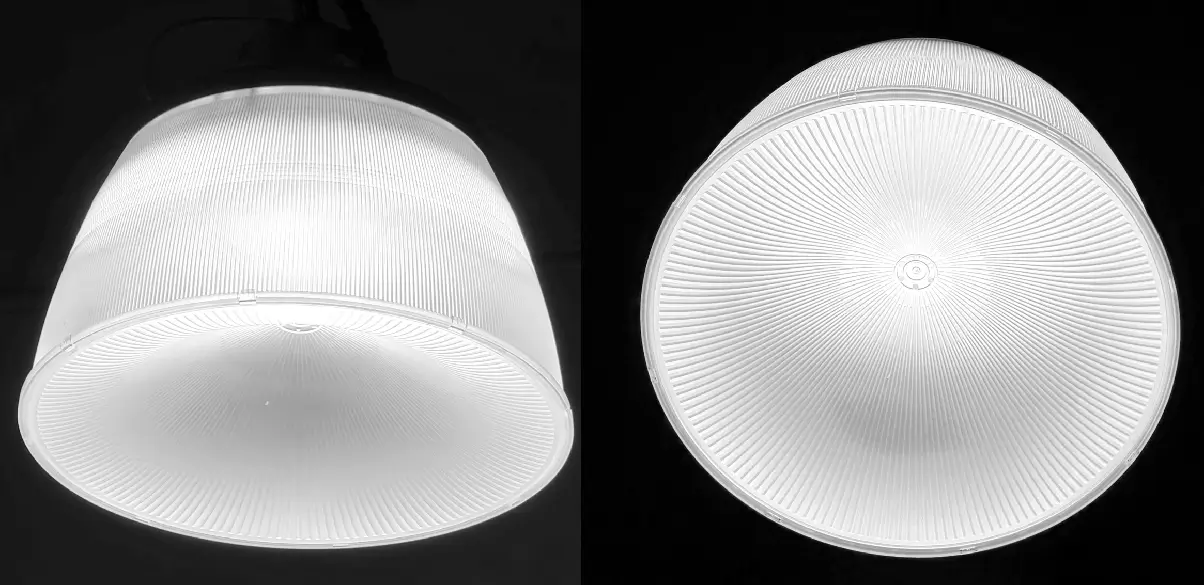

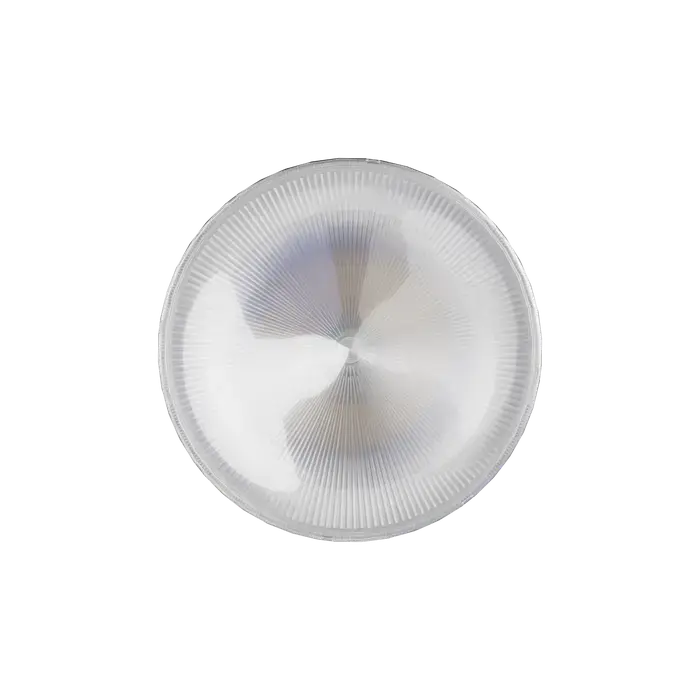

Bottom Lens / Glare Shield
Bottom lens prevents direct view of the LEDs, creating visualcomfort for your customers and forklift operators. The assembly isspecifically designed to be bug and dust proof, qualifying to IP5xingress protection.
Design Highlight
1
Sales up 10% with lighting the only change: Zumtobel field study, Gerry Weber, Herford, 2014.
2
Sales up 40% in retail chain: Heschong Mahone Group for PG&E, 1999.
